[Single Software] OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode

Name: [Single Software] OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode
Brand: OBDSTAR
SKU: 972
Price: 799.00 USD
Availability: InStock

67 915 ₽

Оптовая продажа 10+ шт. дополнительная скидка 5%

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.

Вес: 3kg (6.6lb)

Объем: 39*12*29.8cm

Категория: Инструмент OBDSTAR

купить сейчас

Email: qianfeiz@gmail.com

WhatsApp: 8613421344069

Описание
Original English Version

OBDSTAR DC706 ECU Tool Basic Version for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY

OBDSTAR DC706 ECU Tool for Car and Motorcycle ECM/ TCM/ BODY

Product Function:

ECU Clone/ All by OBD or Bench

Single Software only,Three standard versions for selection

1. ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)

ECM clone for motorcycles(Bosch, Delphi, EFI...)

2. TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
3. Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)

Notice: Versions of DQ250 models before 2008 are not supported, and the protocols are different.

OBDSTAR DC706 Configurations

Configuration	Software
DC706_ EN A	ECM
DC706_ EN_ B	TCM
DC706_ EN_ C	BODY
DC706_ EN D	ECM+TCM
DC706_ EN E	ECM+B0DY
DC706_ EN F	TCM+B0DY
DC706_ EN_ FULL	ECM+TCM+BODY

Supported ECU Manufacturers:

ALPS

Autoliv

Bosch

Continental

Delphi

Denso

Johnson Controls

Lear

Magneti Marelli

Siemens

Temic

Valeo

Supported Brands:

Car

ASTON MARTIN

BMW

FAW

FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)

FORD/LINCOLN

GM/OPEL

HYUNDAI/KIA

LAND ROVER/JAGUAR

LUXGEN

MASERATI

MAZDA

MITSUBISHI

NISSAN

OPEL

PSA

SMART

SUBARU

SUZUKI

VOLVO

VW/AUDI/SEAT/SKODA

Motorcycle:

APRILIA

BRP

CFMOTO

DERBI

GILERA

GUZZI

PEUGEOT

PIAGGIO

QJBENELLI

VESPA

Advanced Functions:

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode

More functions are in developing...

Product Specifications:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 1.3kg
Dimension	243mm148mm36mm

Function Display:

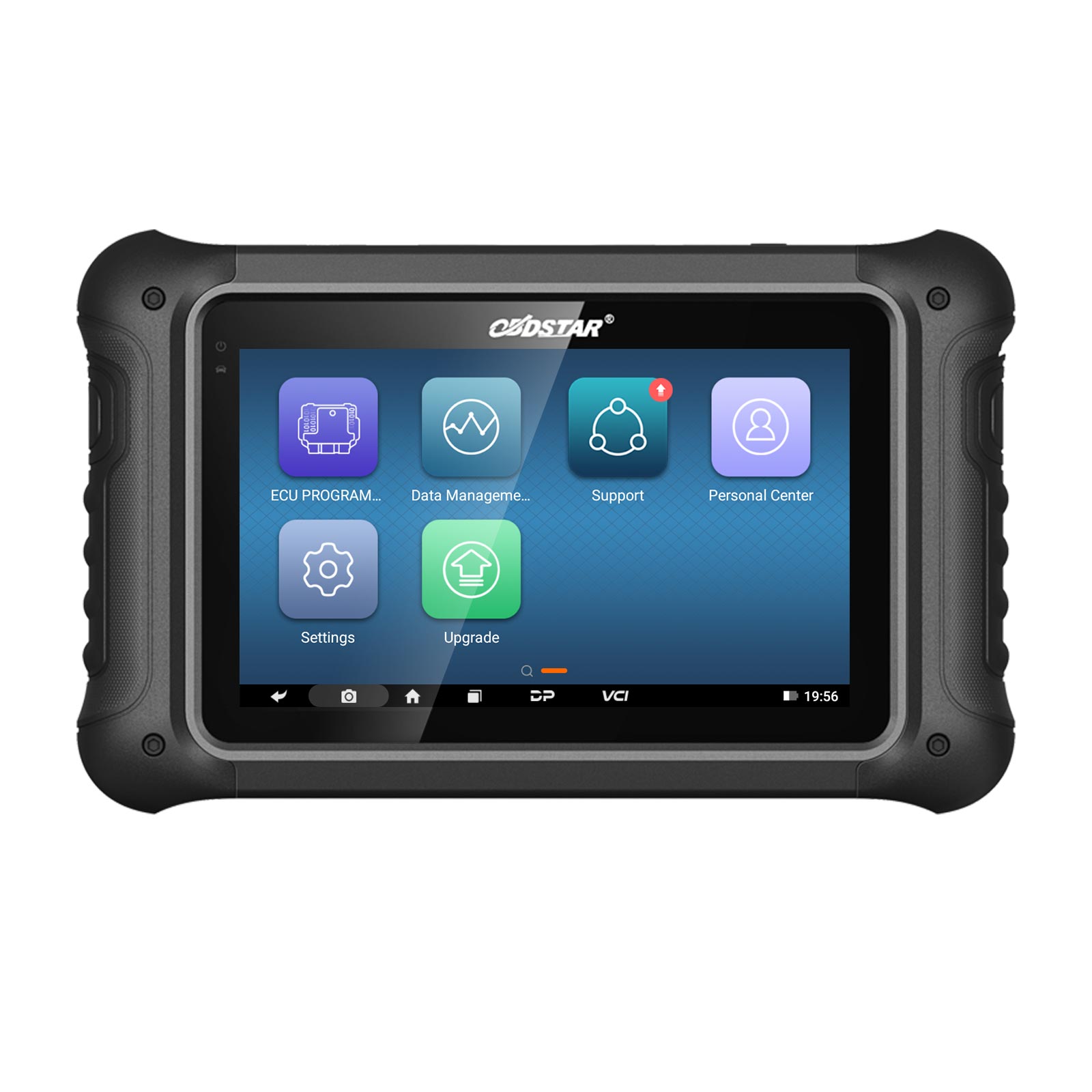

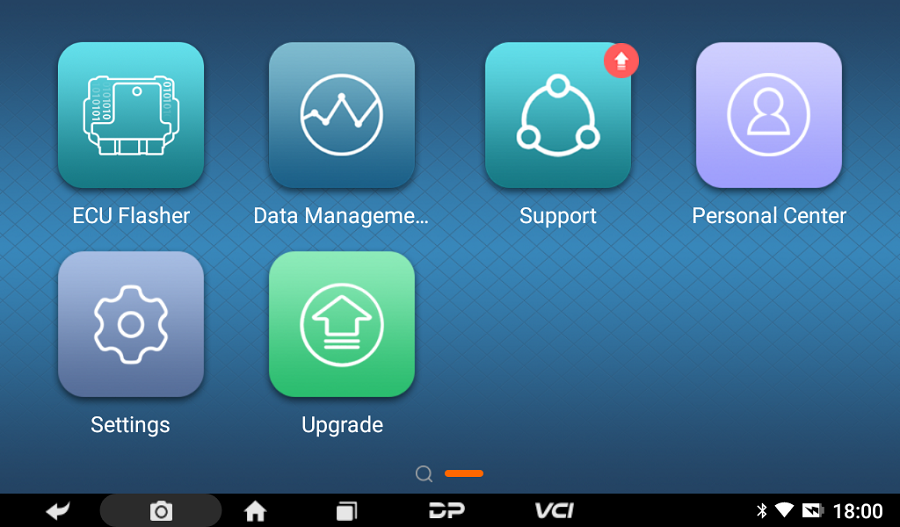

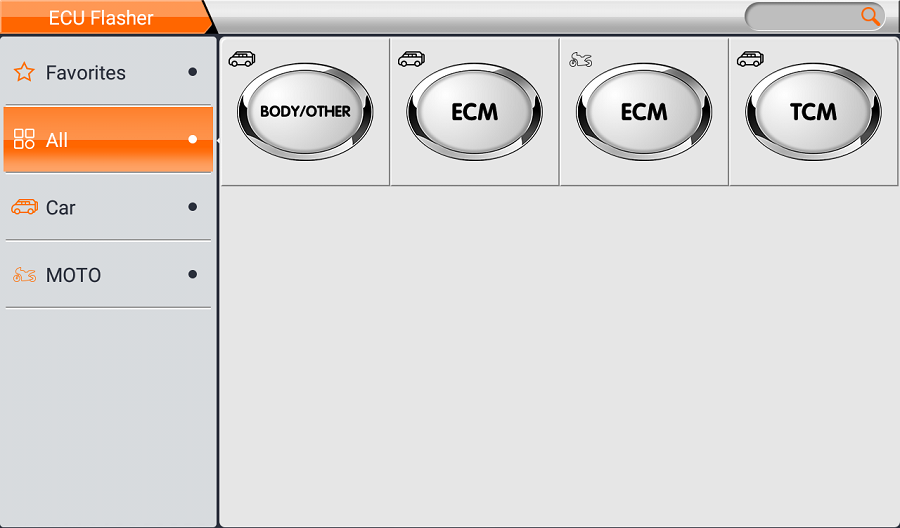

1) Main Page/Brand Supported

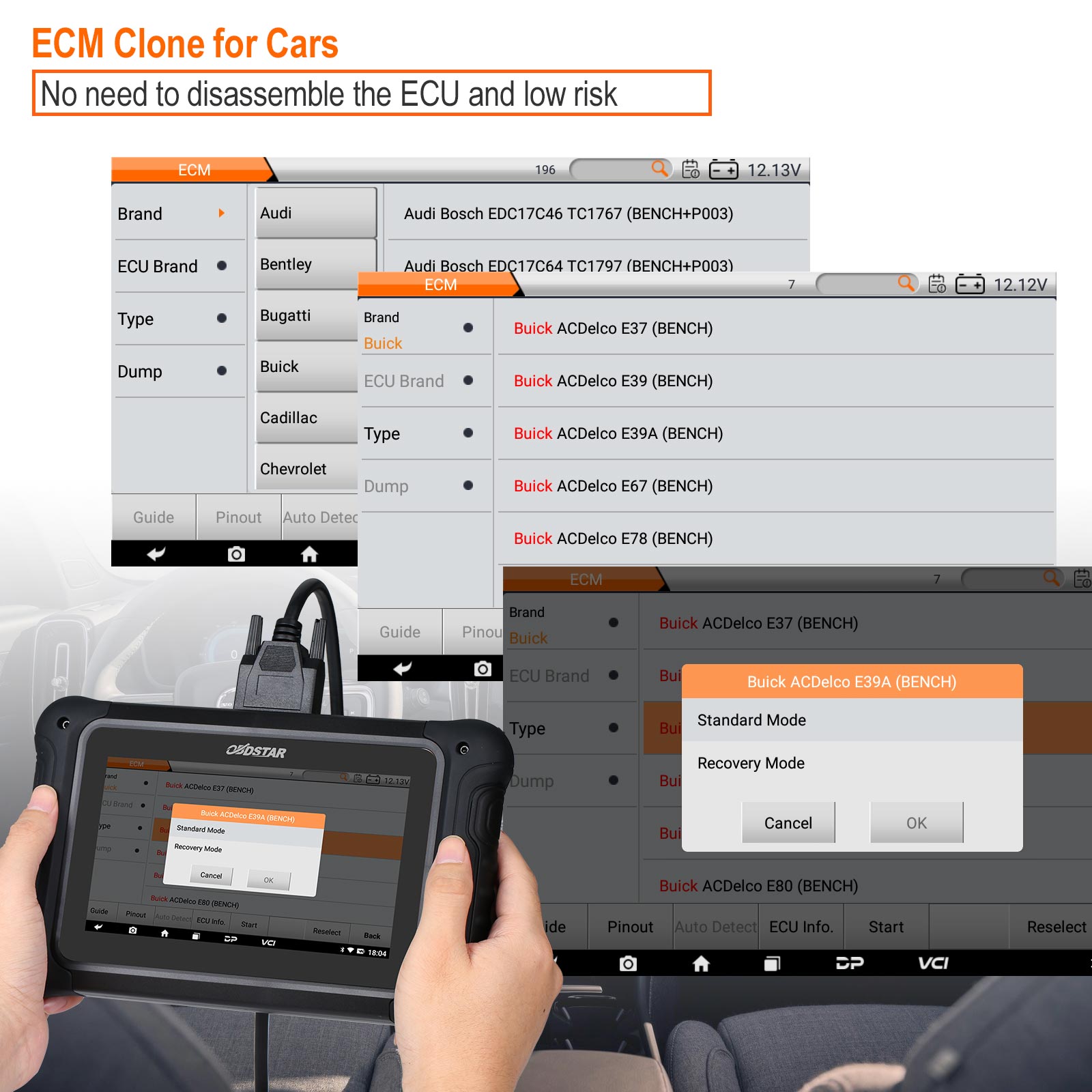

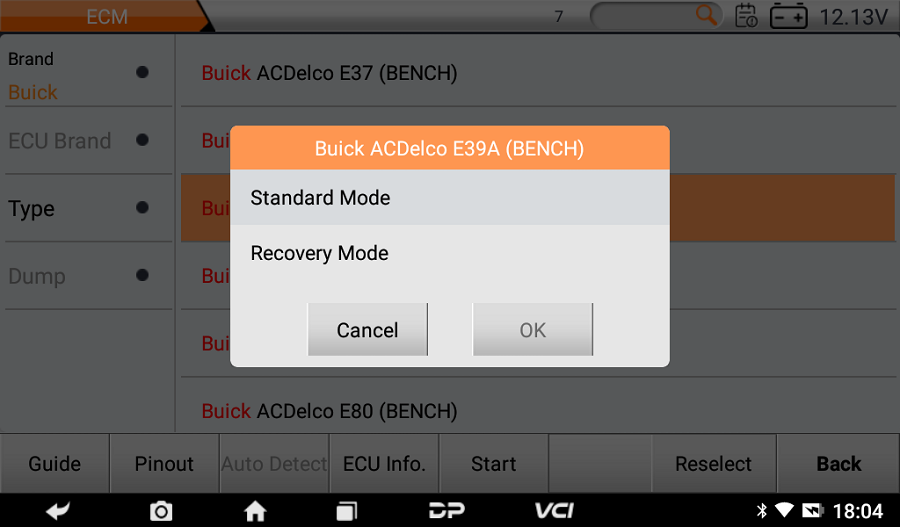

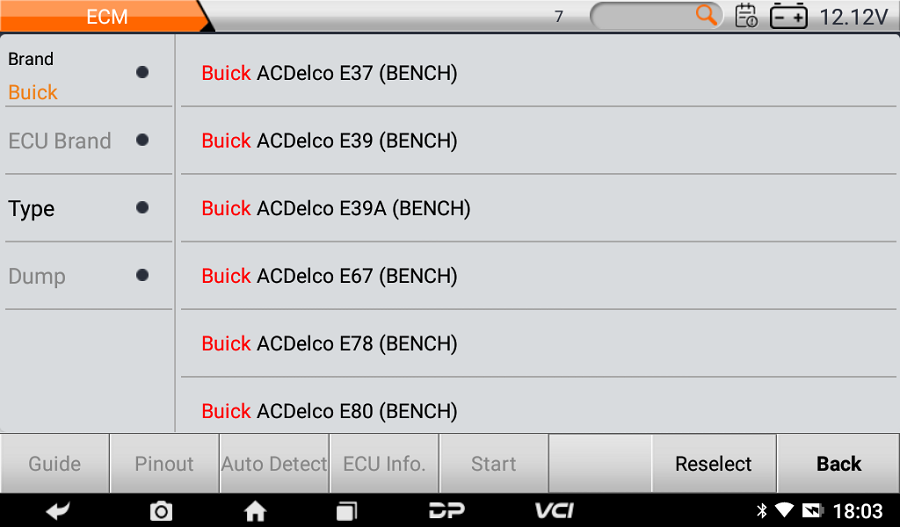

OBDSTAR DC706 ECU Tool + For ECM

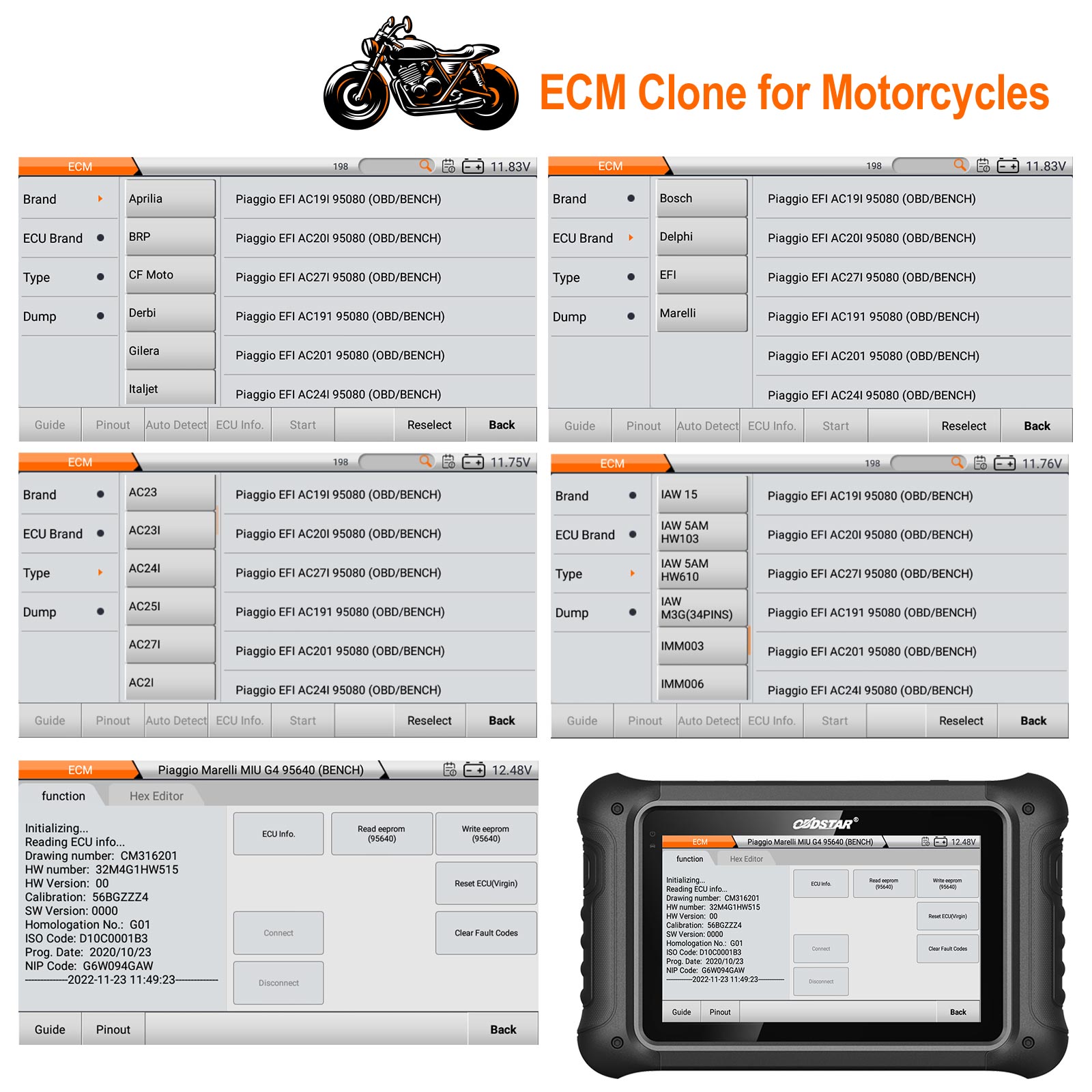

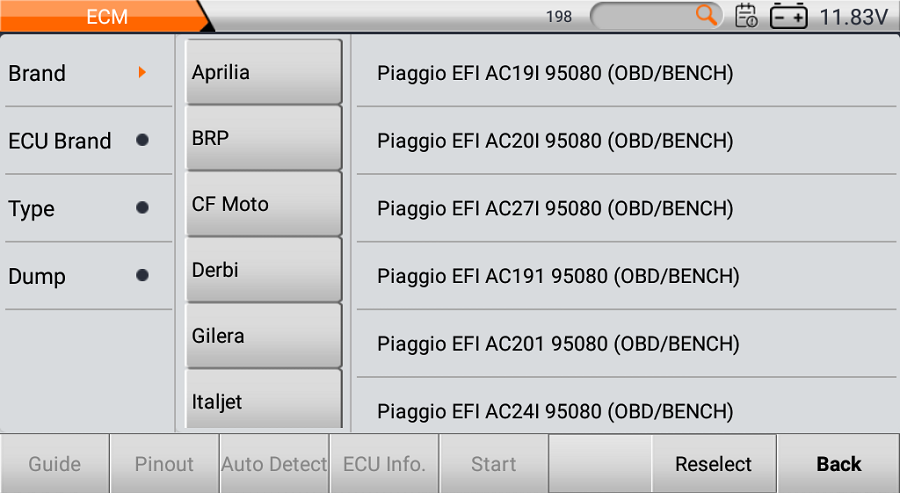

OBDSTAR DC706 ECU Tool + ECM Clone for Motorcycles

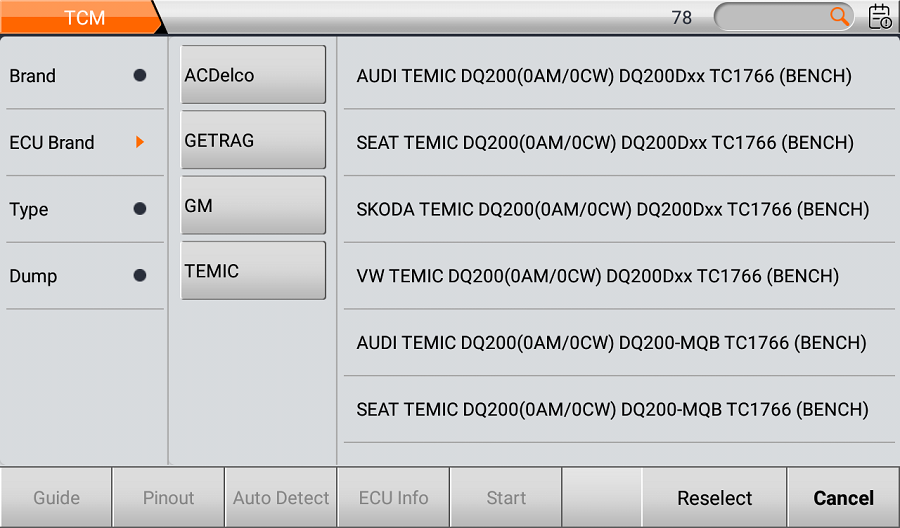

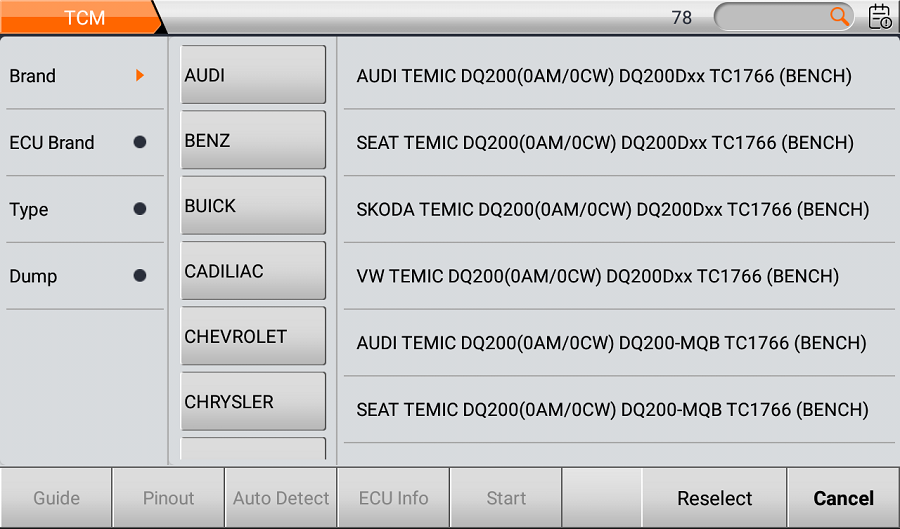

OBDSTAR DC706 ECU Tool + For TCM Clone

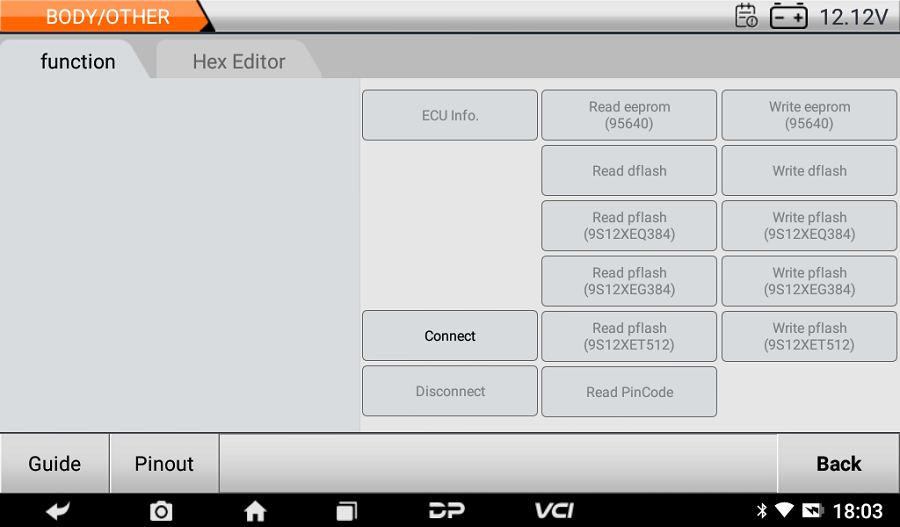

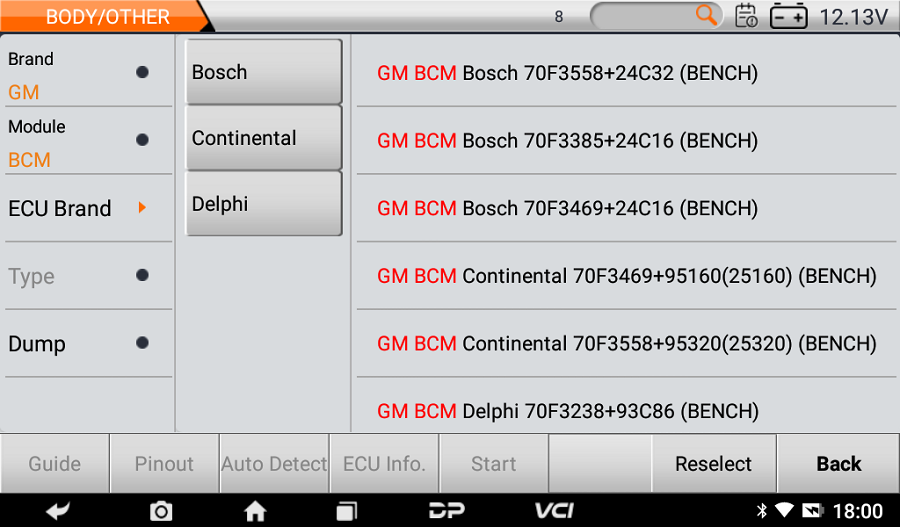

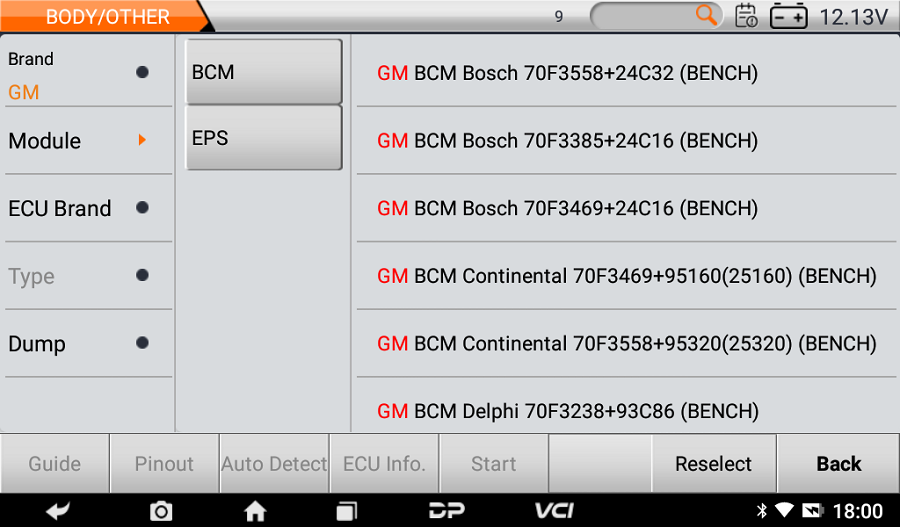

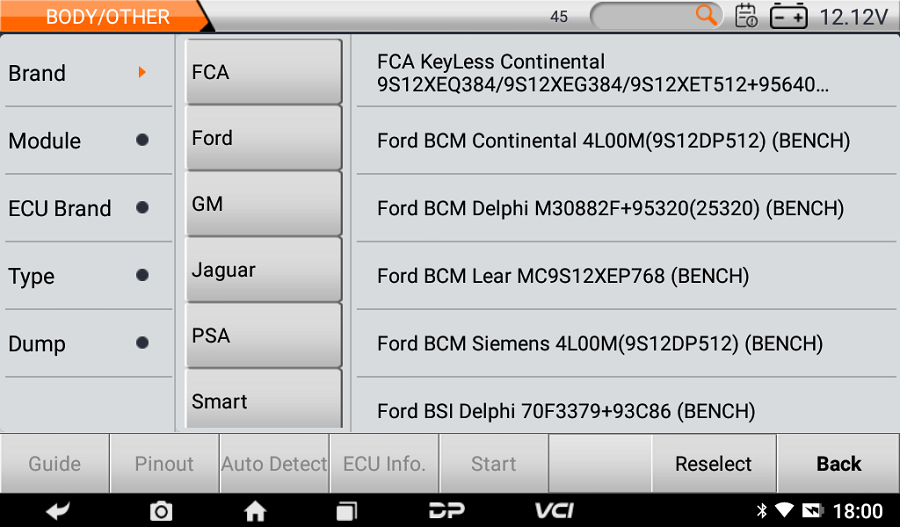

OBDSTAR DC706 ECU Tool + For Body/Other Clone

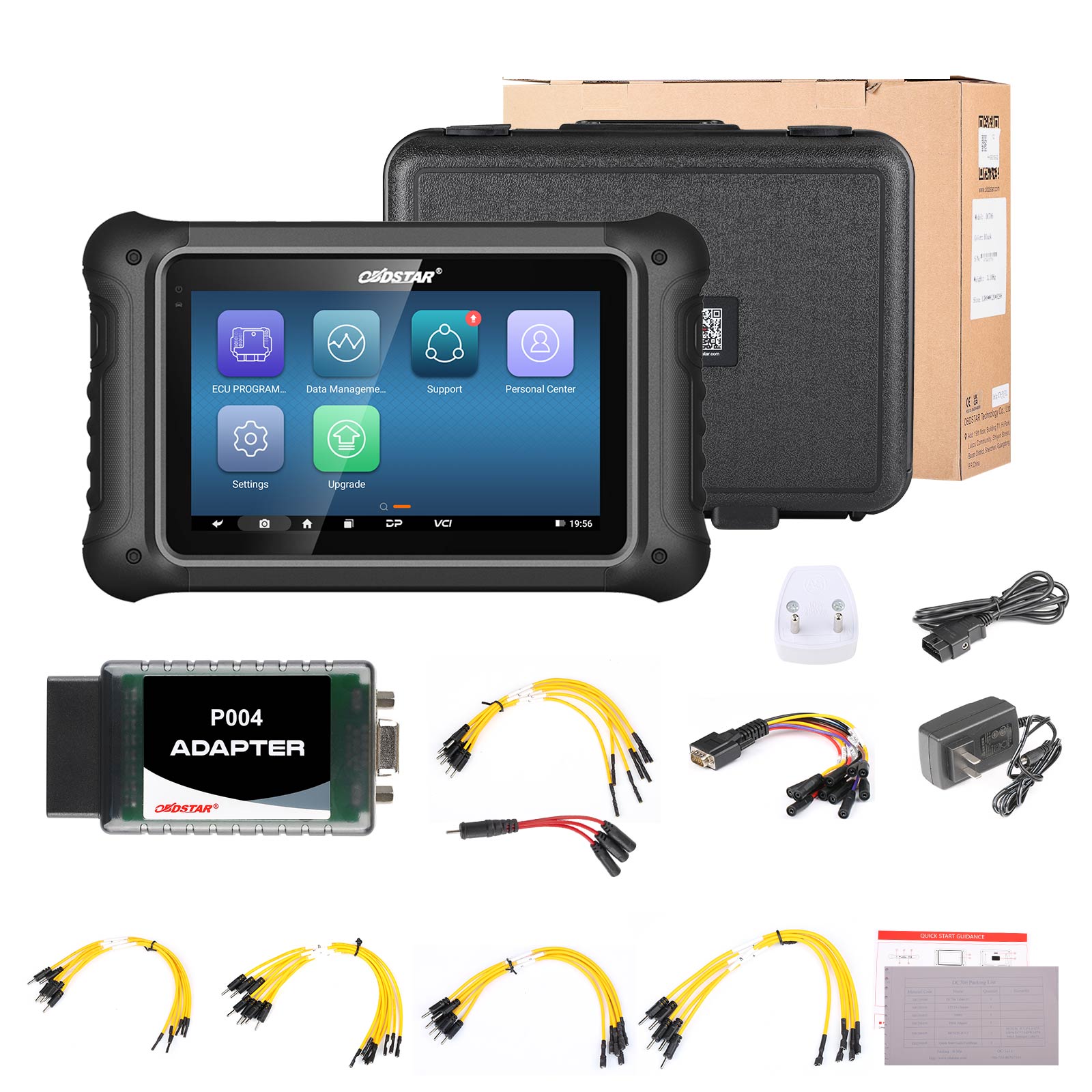

Package Includes:

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
