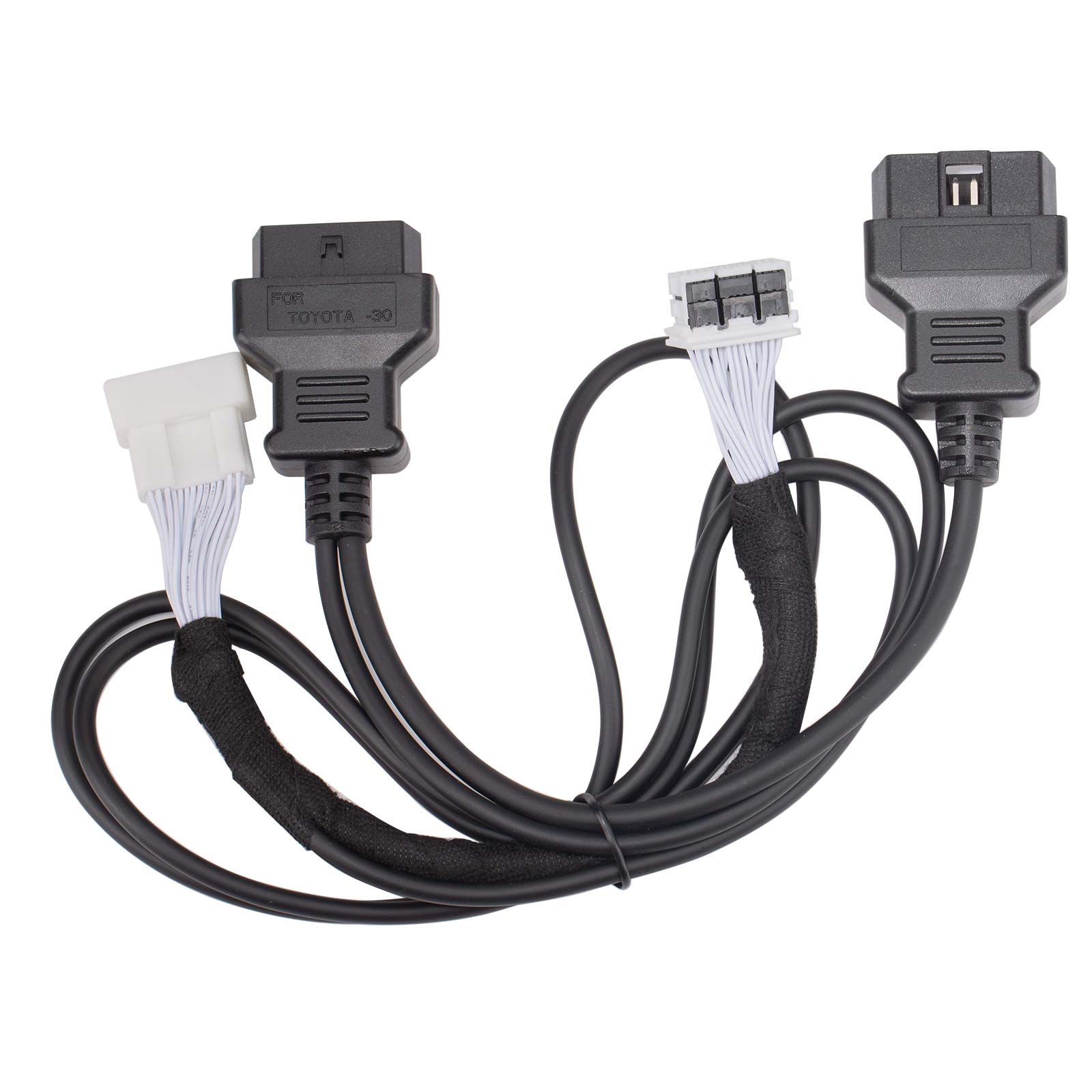

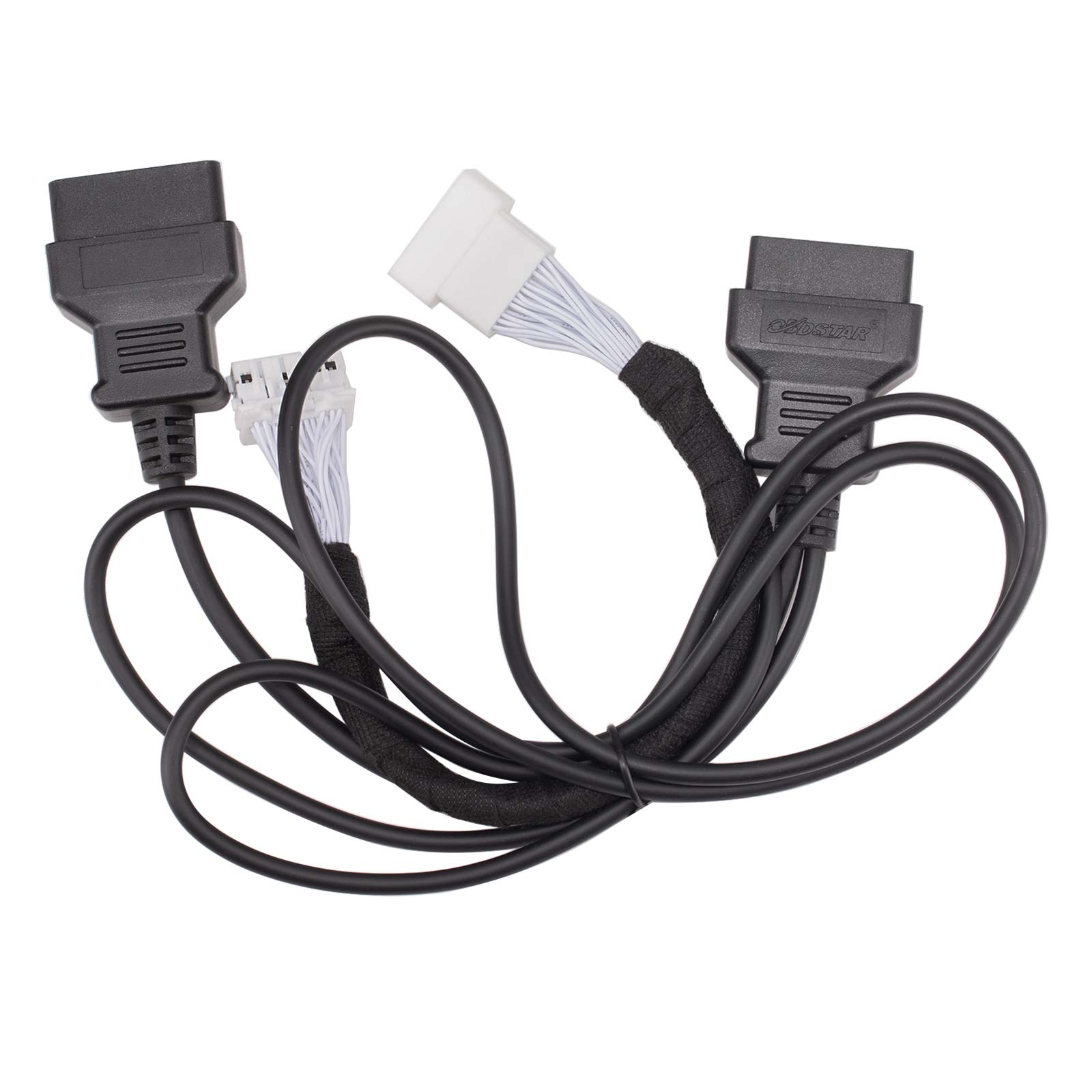

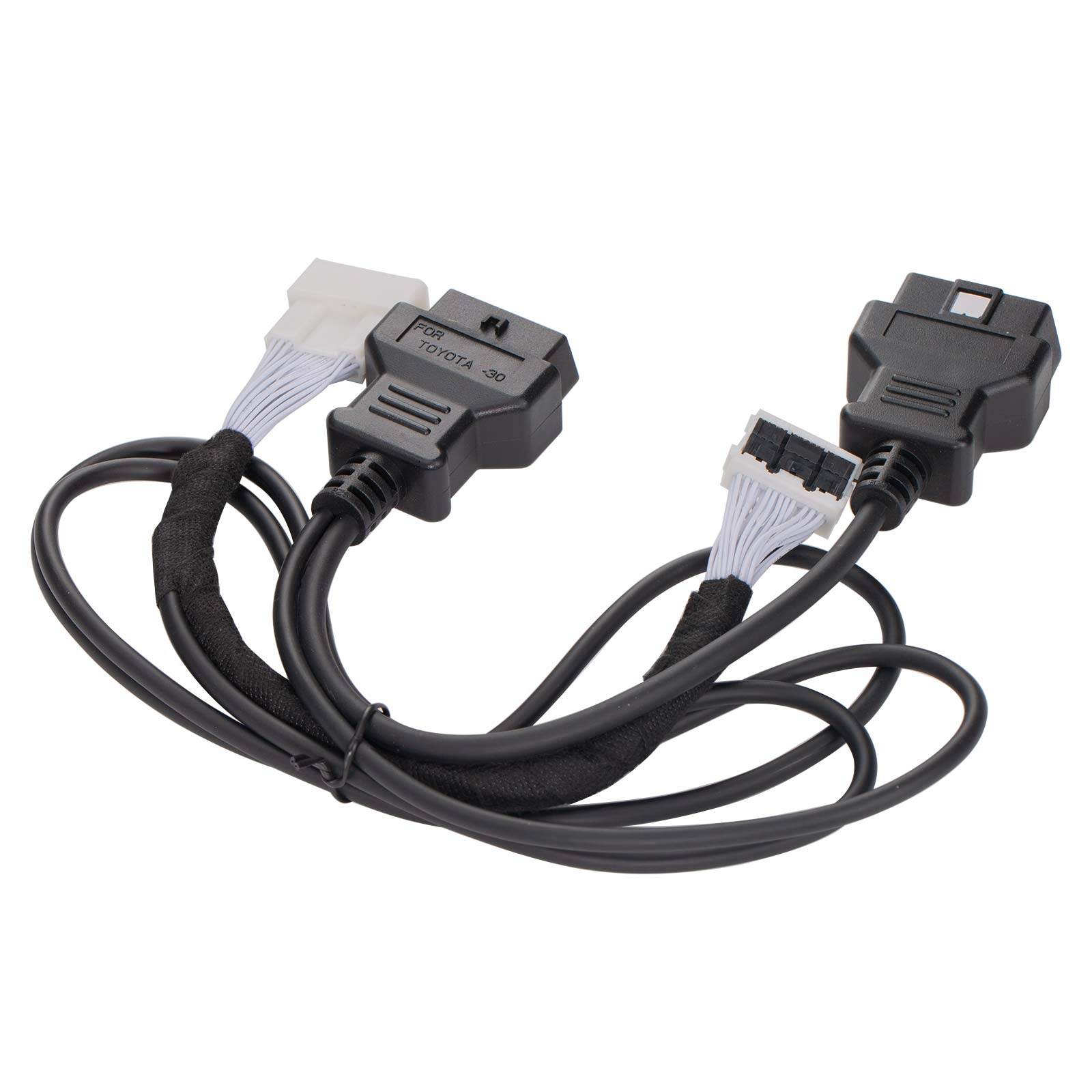

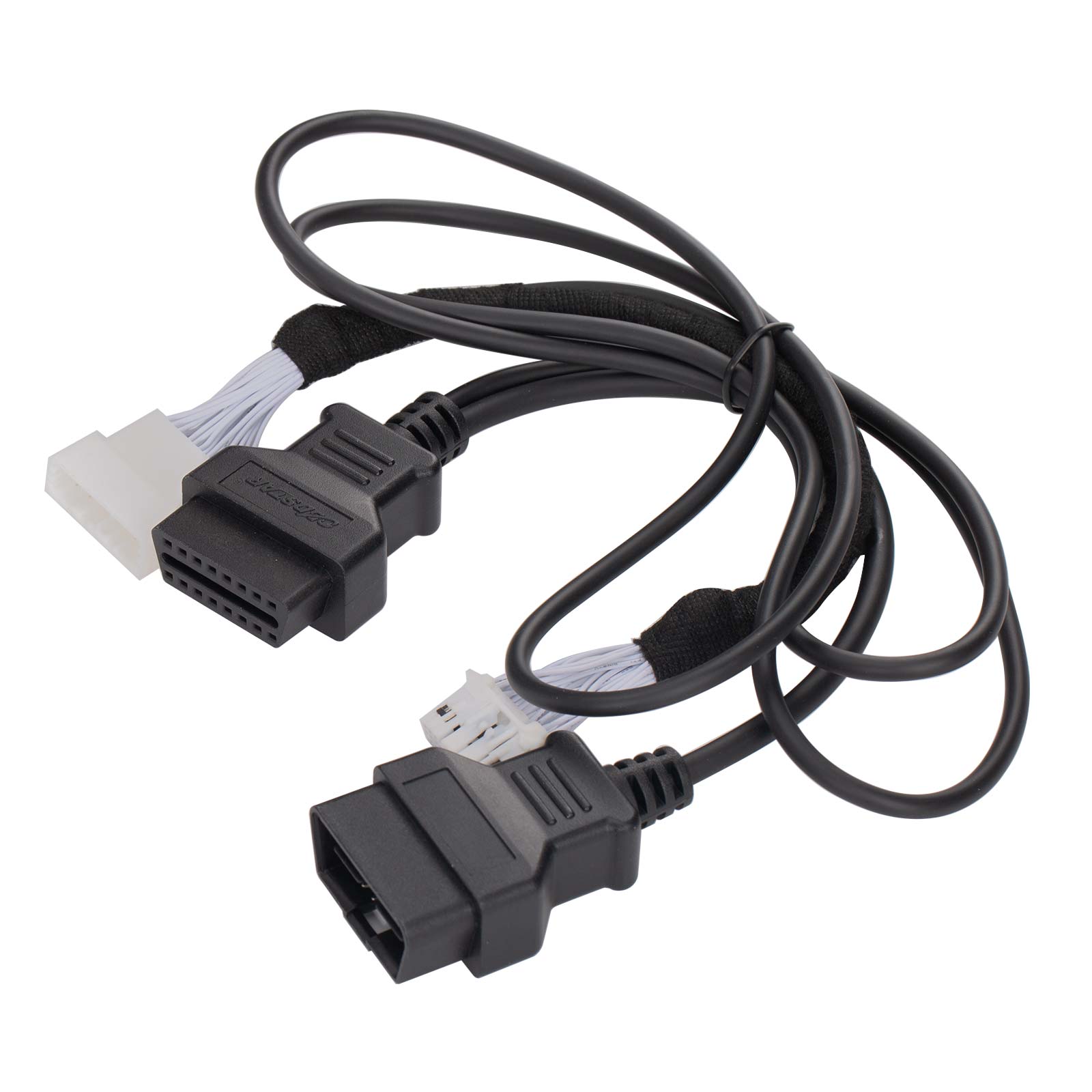

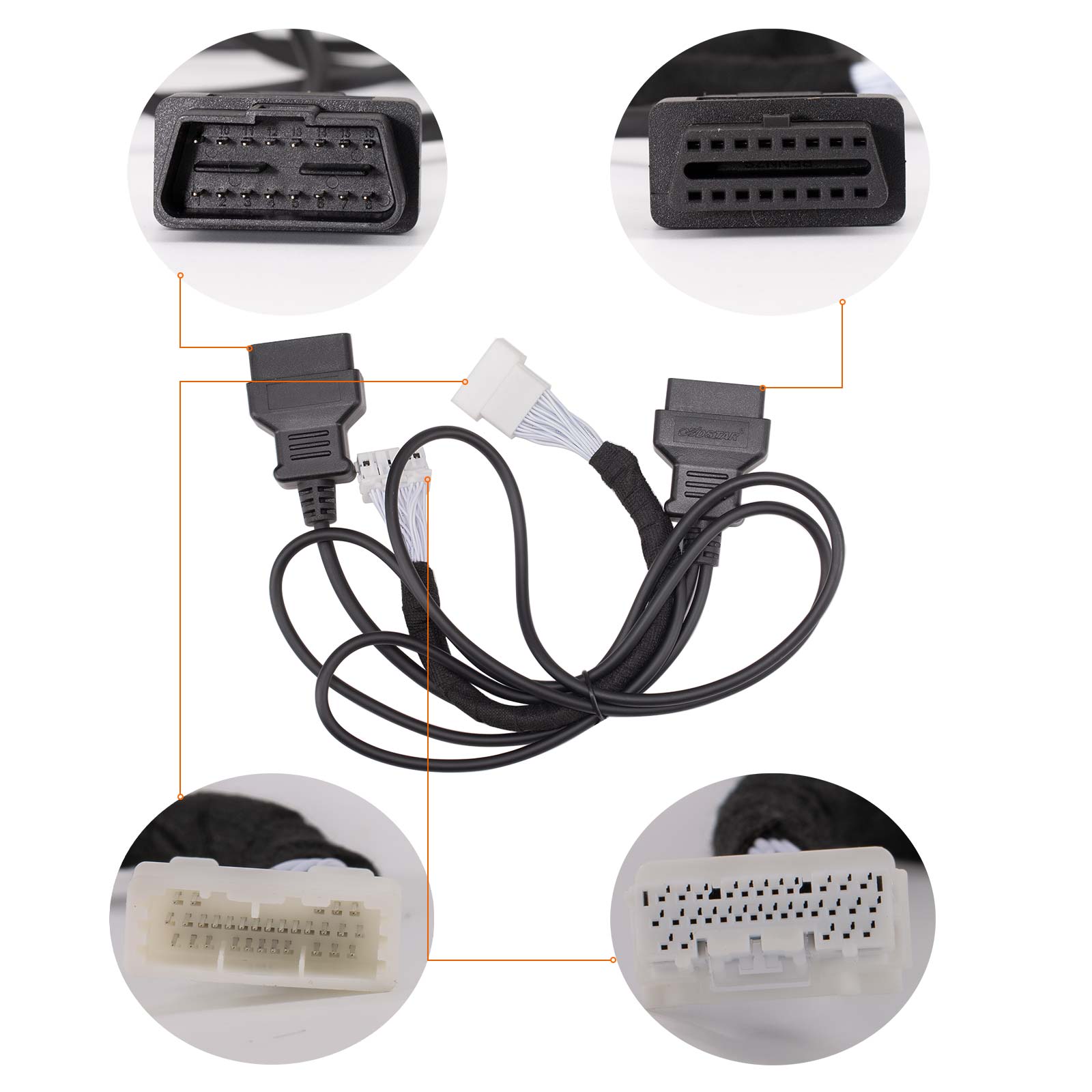

OBDSTAR Toyota-30 Cable
OBDSTAR Toyota-30 cable is mainly used for all keys lost and password-free matching operation of 8A-BA and 4A models of Toyota's latest smart key box with 30 pins. The TOYOTA-30 cable supports the following models: 2022-Corolla Sharp, Fenglanda, Senna HV, Lingfang, Lingfang HV, Wei HV, Grevia HV, bZ4X, etc. Using Toyota-30 cable, there is no need to break, hook, or plug and unplug wires during operation, and there is no risk of damaging communication wires!
Better than the Toyota-30 Cable V2, doesn't need the CAN Direct Kit to work with, save money.
Works with X300 Classic G3, Odo master, X300 PRO4.
Support Functions:
ID4A proximity key programming (all keys lost, no need pincode)
ID8A-BA proximity key programming (all keys lost, no need pincode)
ID8A-B9 proximity key programming (all keys lost, no need pincode)
2019-S6J3XX dashboard mileage calibration
2021-R7F701401 dashboard mileage calibration (Mileage calibration for other dashboards like R7F701441, R7F701442, etc. will be added later.)
Supported Models:
4A models(equipped with TMLF19T type smart key box):
AQUA 2022-
COROLLA CROSS 2022-
Corolla Cross FACELIFT 2022-
Corolla FACELIFT 2022-
YARIS 2020-
YARIS CROSS 2021-
8A-BA models(equipped with TMLF19D type smart key box):
BZ4X 2022-
GRANVIA HV 2022-
HARRIER 2022- (MXUA80)
HARRIER HV 2022- (AXUH8#)
RAV4 PHV 2022-
SIENNA HV 2022-
TUNDRA 2021-
VENZA HV 2022-
WILDLANDER PHV 2022-
8A-BA models upgrade on Aug.10th, 2023
Work together with a Key SIM!
TOYOTA IMMO 2023-07-31
Work together with a Key SIM
Package Includes:
1pc x OBDSTAR Toyota-30 Cable
