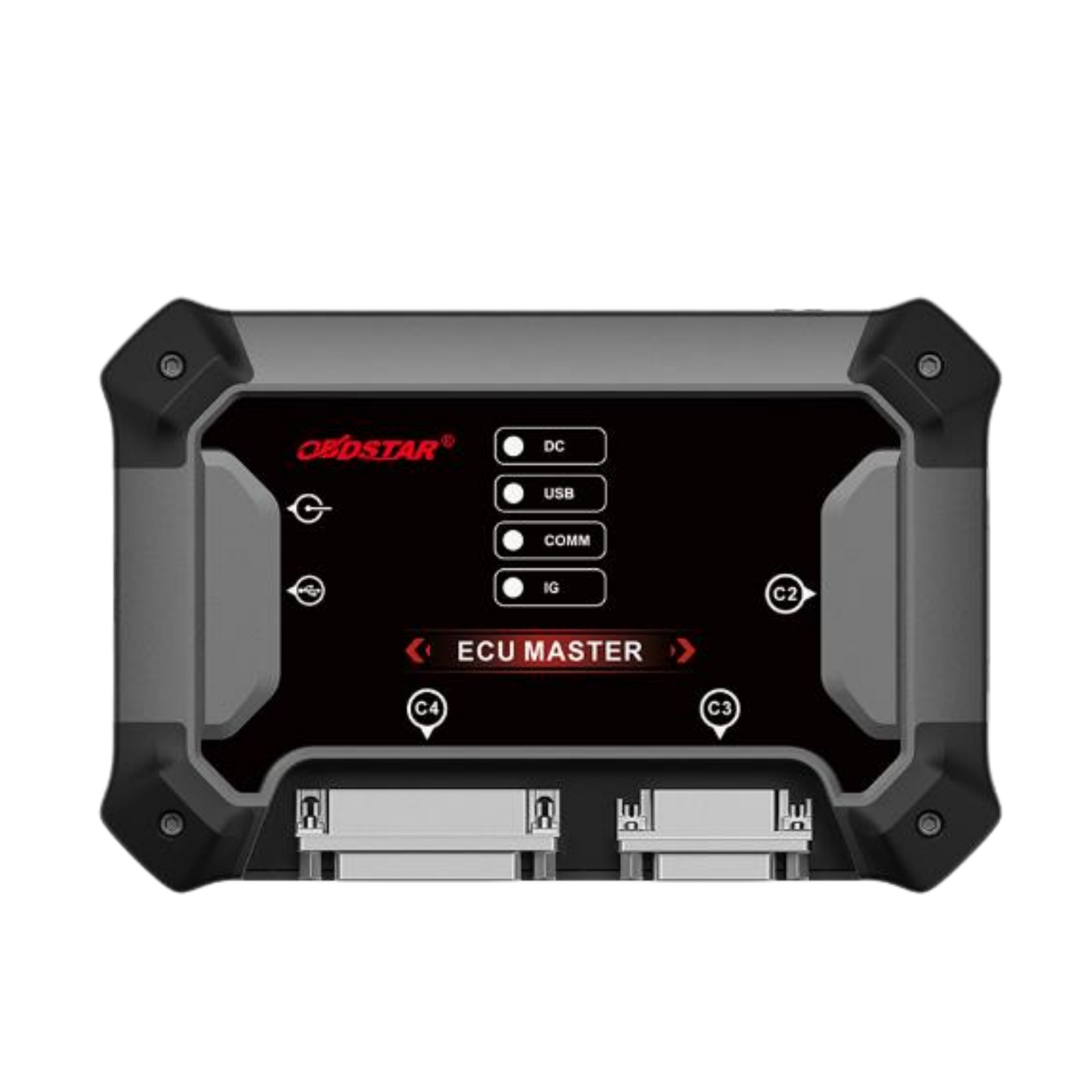

2026 OBDSTAR ECU Master A Configuration PC-based ECU Flasher for Passenger Car TCM ECM BODY/ CHASSIS/ EV BMS/ VCU Cloning
ECU MASTER is the first professional PC-based ECU Flasher for OBDSTAR and supports Passenger Car, EV, Motorcycle, and HD (ECM/TCM/BCM) clone functions. It is compatible with ECUs from major global brands, provides precise maintenance for popular units, and is equipped with anti-misoperation reminders, allowing even beginners to get started quickly!
Support Functions:
1. Passenger Car ECM / TCM / BCM Cloning:
Support Reading and Writing ECU units of thousands of car models:
BOSCH MED/EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, MB FBS4 series units etc.
Supports ECU advanced functions:
CheckSum, IMMO Data Convert, IMMO Data Decryption, IMMO OFF/ON, Coolant Temperature Sensor Calibration, Mileage Calibration, ECU RunTime Calibration, VlN Read/Write, Virgin Reset etc.
2. Built-in P003+, MP001, CAN FD and RH850/V850 adapter functions.
Support Models:
Passenger Car：
1. Support MERCEDES-BENZ FBS3, FBS4 TCMs VlN Read/Write function via BENCH, Reset Virgin, Personalization (Data Transfer).
2. Support AISIN SH7058, SH7055, D70F4019, R7F701204 series TCMs ECU Cloning function.
3. Support BMW 8HP GEN3 TC275/TC277 TCMs ECU Cloning function via BENCH mode.
4. Support JAGUAR/LAND ROVER 8HP GEN3 TC275, 9HP50 TC275 TCMs ECU cloning, VIN Read/Write functions via BENCH mode.
5. Support HYUNDAI/KAI CANFD KEFICO CPSCU1.11.3 TC233 SBW(ETCM) ECU Cloning function.
6. Support FORD MG1/MD1 GEN2 CANFD type ECUs R/W via OBD/BENCH mode, covering after 2020 locking types(MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, MG1CS055).
7. Support VW SIMOS series, ME17 series, EDC17 series INT eeprom (Data Transfer)(ECU Cloning).
8. Support MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF, 11MP series ECU Cloning function via BENCH mode.
9. Support BMS/VCU ECU Cloing function via BENCH mode：
GEELY VCU BOSCH VC1-UP008.0 TC275TP
GEELY VCU BOSCH VC1-UP008.1 TC387QP
GREATWALL VCU BOSCH VC1-UP008.1 TC387QP
SAIC VCU BOSCH VCUP8.2 SPC574K
BYD YANGWANG VCU BOSCH VCU8.5
AUDI/VOLKSWAGEN/SEAT/SKODA BMS BOSCH INVCON3.3 TC275TP
AUDI/VOLKSWAGEN/SEAT/SKODA/GEELY BMS BOSCH INVCON2.3 TC1797
10. Support CHINA DELPHI MT series flash/eeprom R/W, VIN Read/Write functions.
11. Support FIAT/ALFA ROMEO/FERRARI MB91F526 BSI ECU Cloning function and IMMO Data Decryption(BCM250X、BCM952/BCM949...).
ECU Master PC Software Free Download

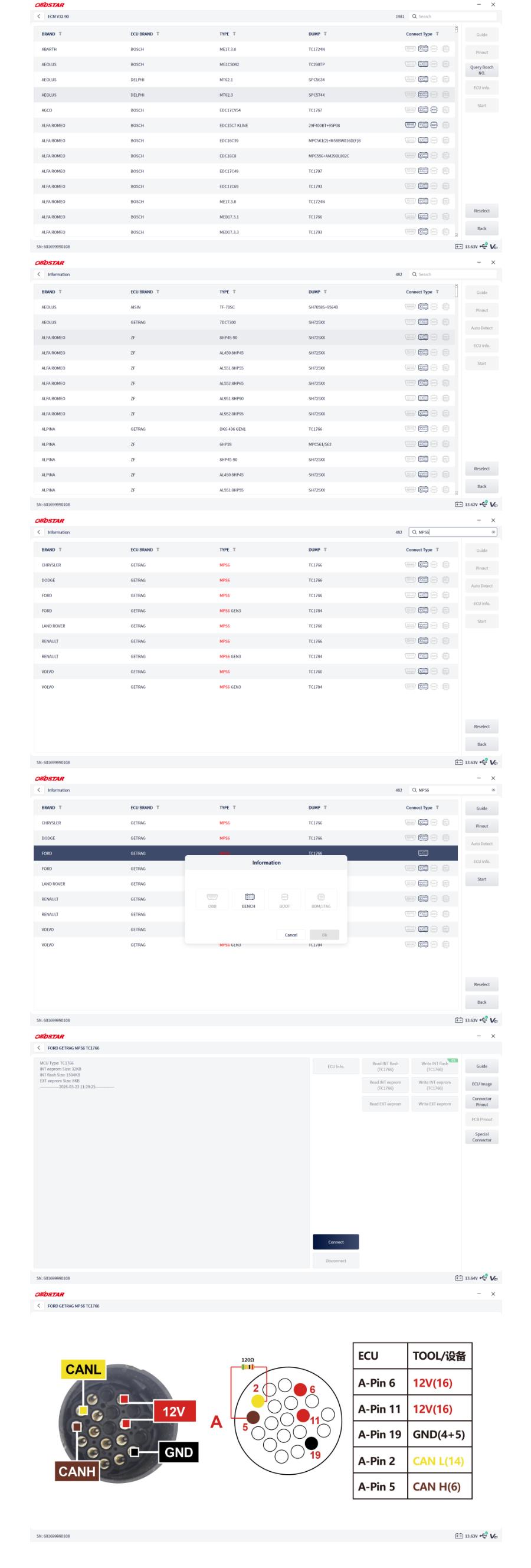

ECM Clone for Passenger Car
Package List:
1 Set x OBDSTAR ECU Master A Configuration
