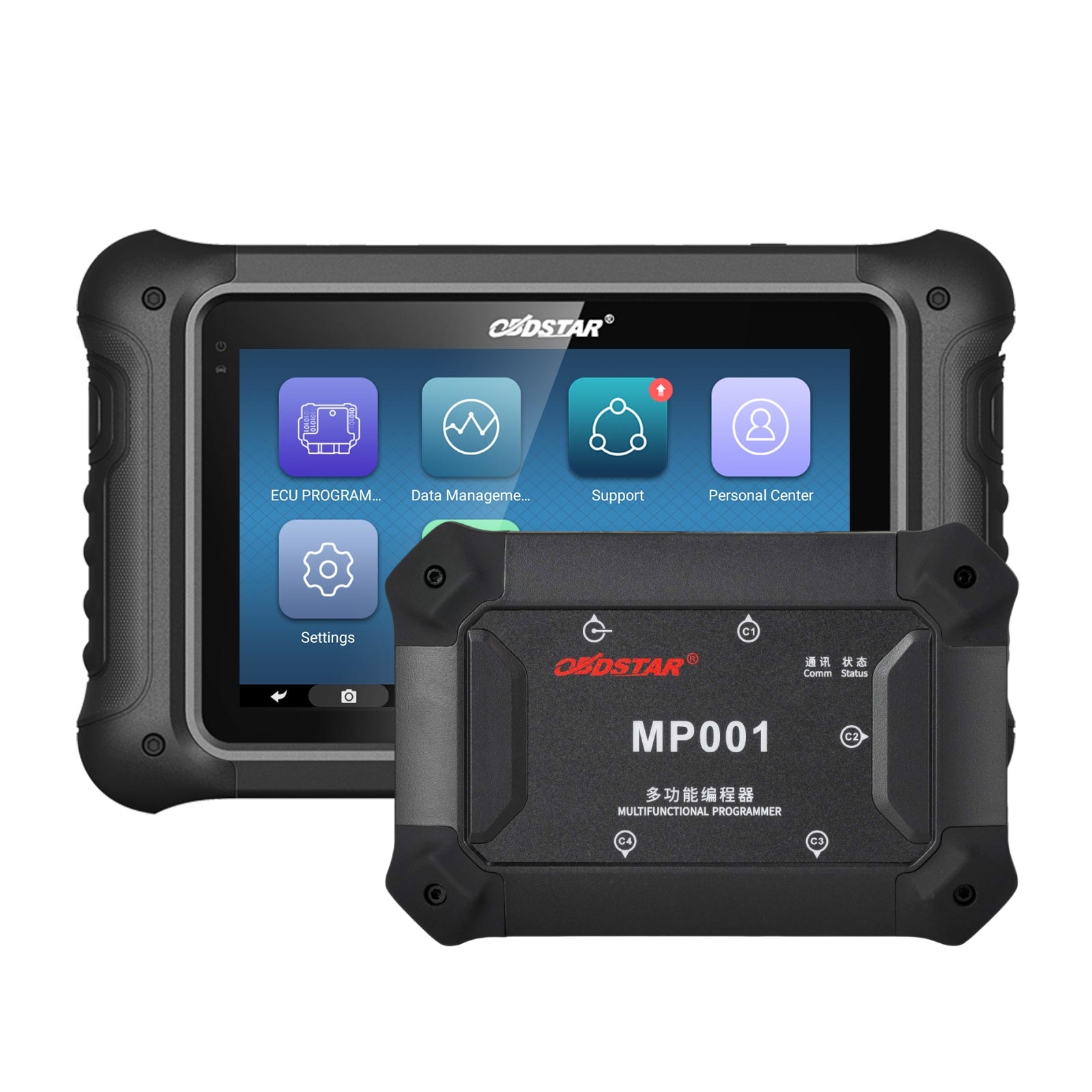

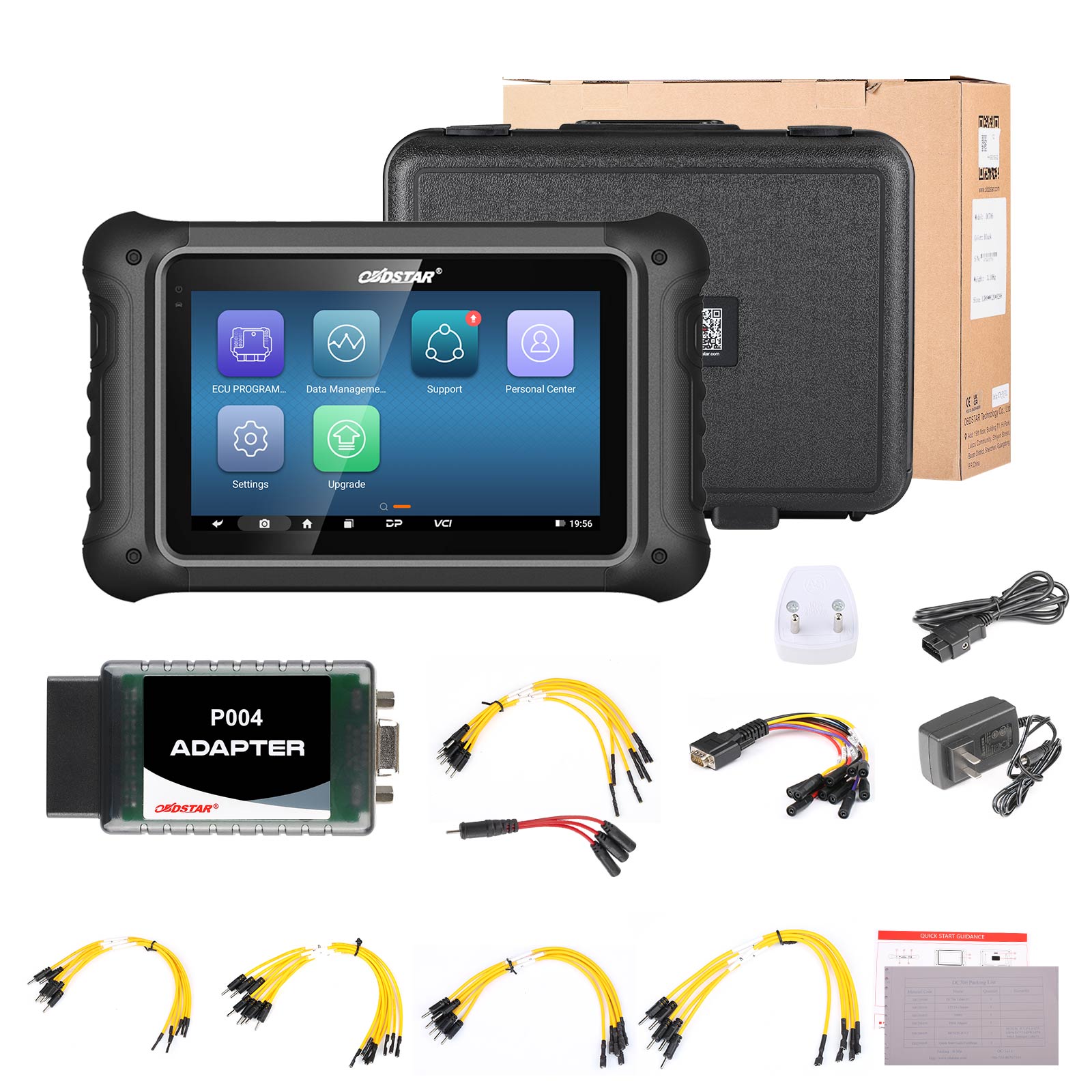

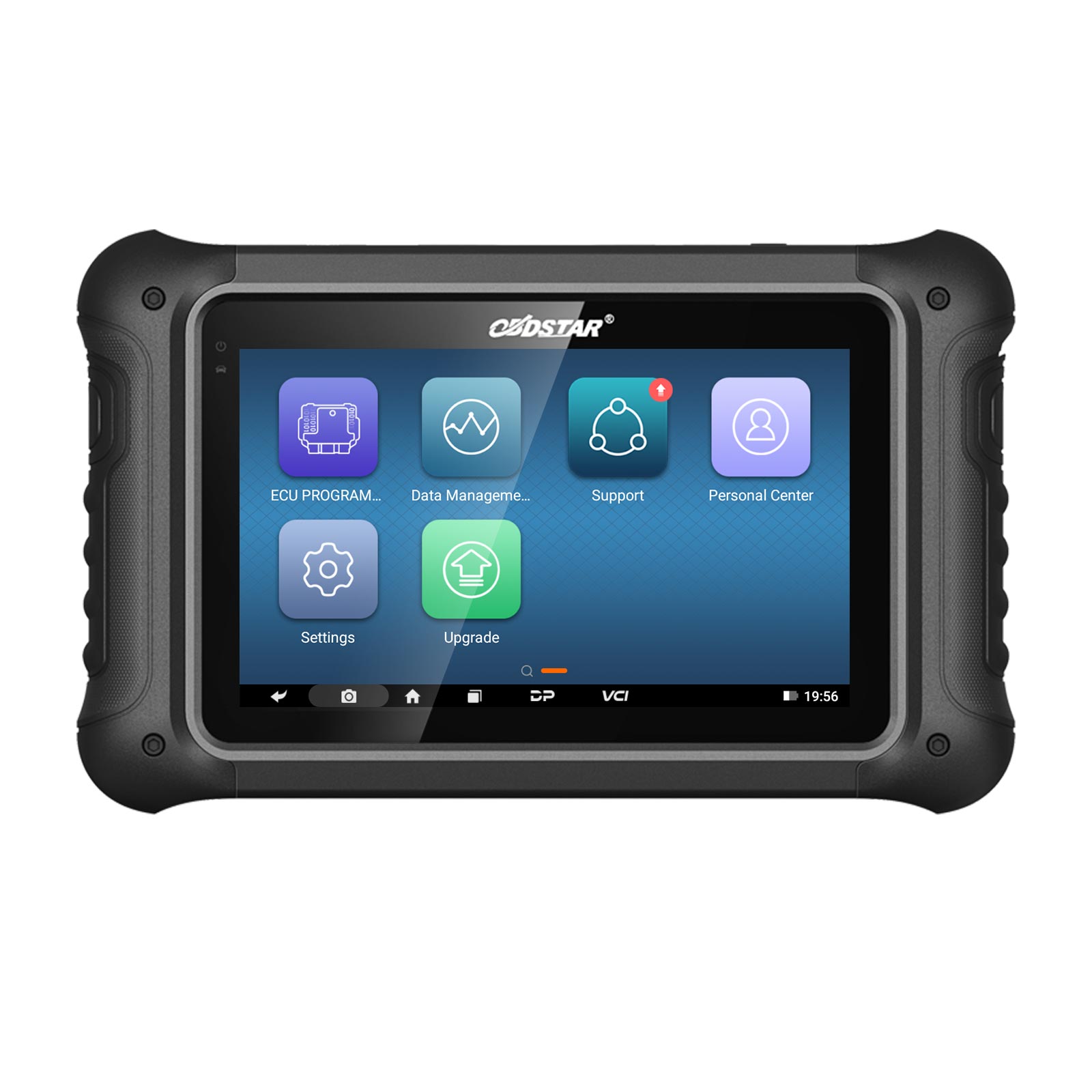

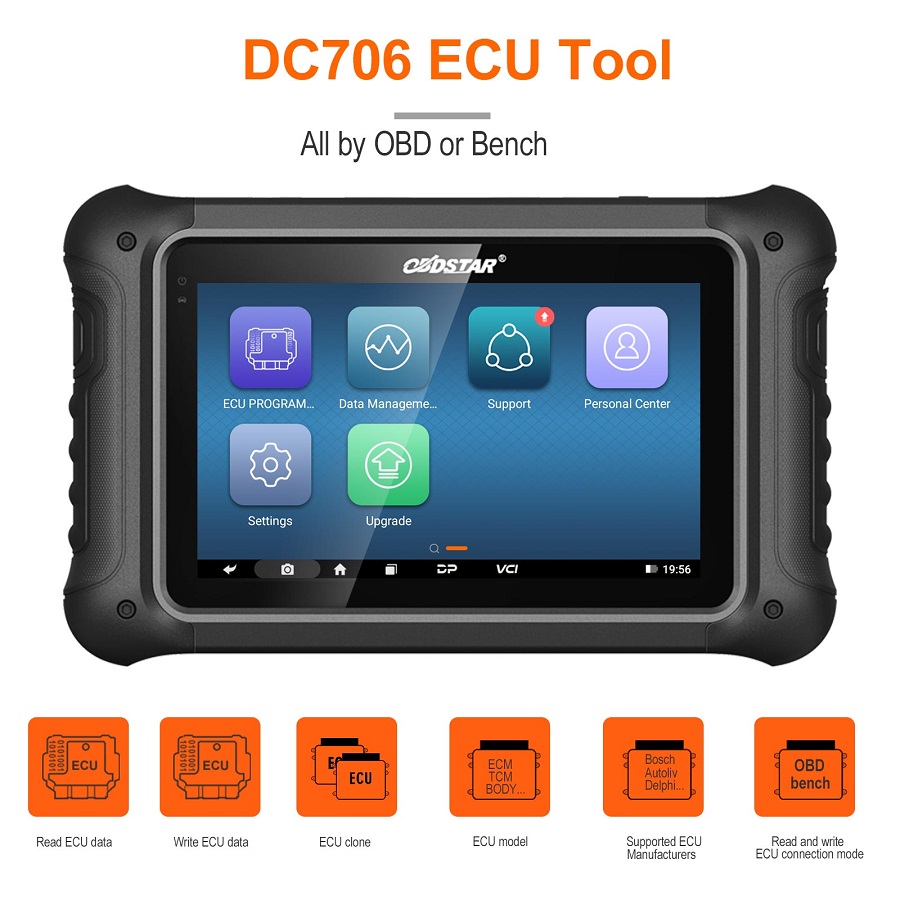

OBDSTAR DC706 ECU Tool Full Version with MP001 Set for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH

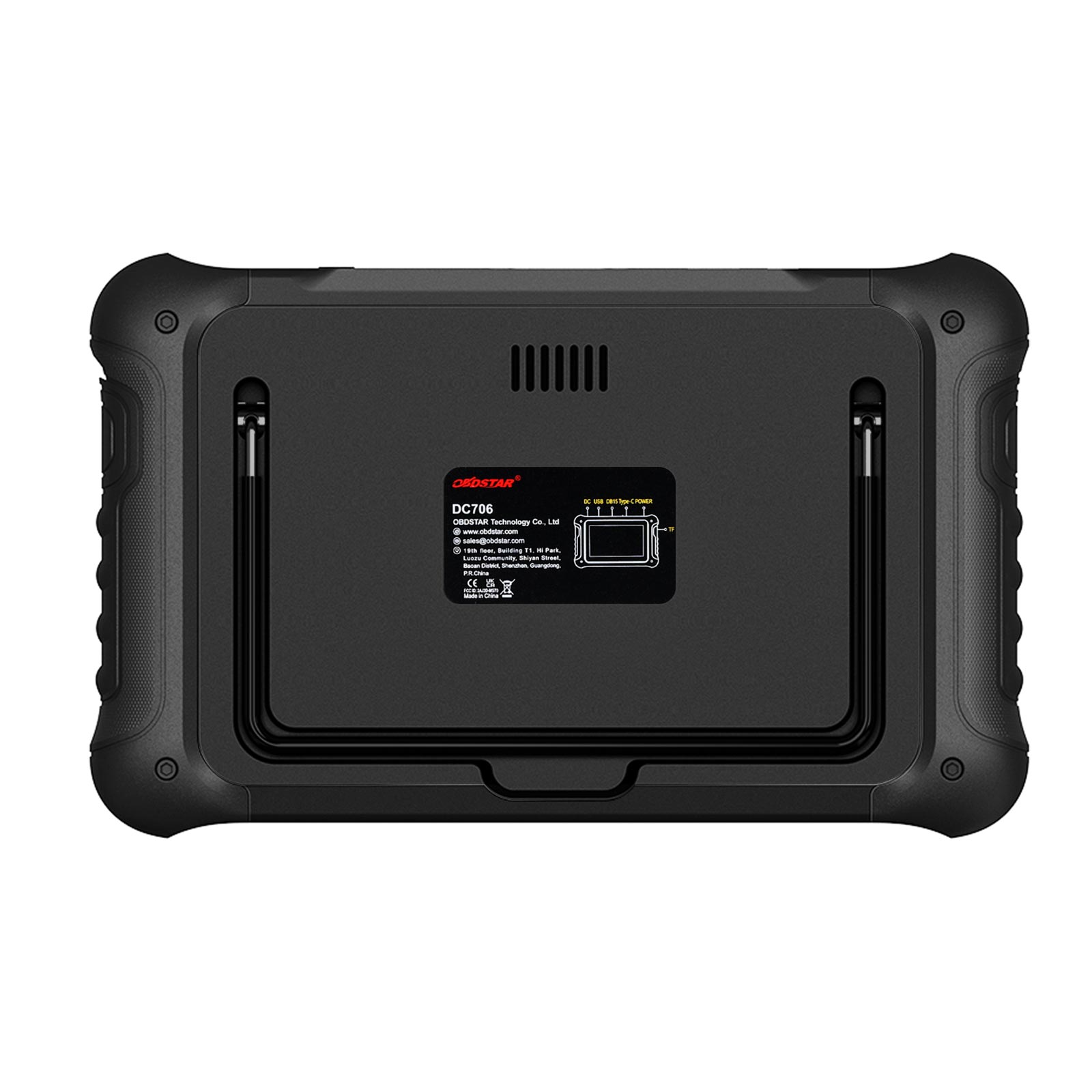

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy. With MP001 Set to read/write Simos 18 or more ECUs. Package Contains:OBDSTAR DC706 ECU Tool Full Version and MP001 Programmer Set
OBDSTAR DC706 Full Version with MP001 Set Highlights:

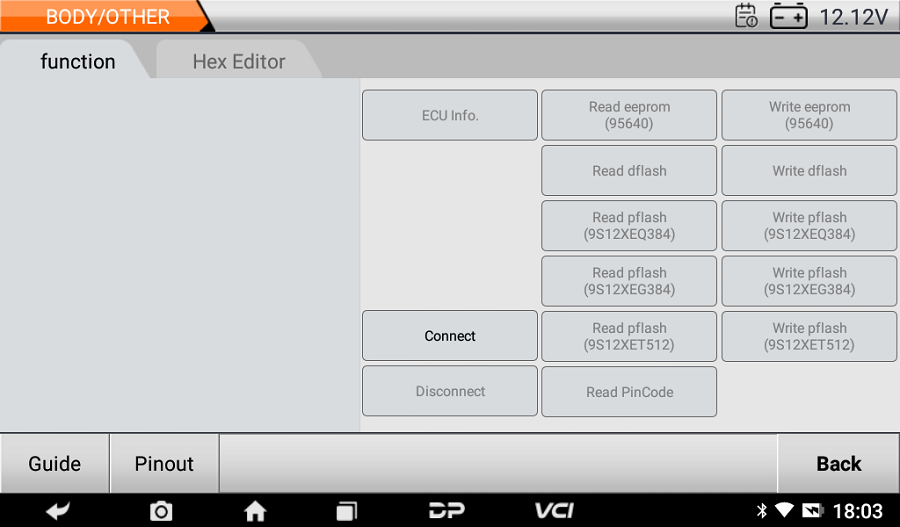

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... 2. Support 710+ ECM types 3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...) 4. Support VW DQXXX (TCM) calibrate mileage 5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone 6. Support motorcycle BRP ME17.8.5 ECU clone 7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1)) 8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type 9. Support automatic identification 10. Strong help data files 11. All by OBD or Bench mode 13. Please check OBDSTAR DC706 Full Version Support List 14. One Year Free Update Onine 15. DC706 ECU Tool Full Version supports Indian TATA and Mahindra (Check in V30.41 ECM software) 16. Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU 17. MP001 fully supports read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski). 18. MP001 covers all the function of P003+ and has more SlMOS 18 than P003+ ( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
Notice: 1. Our Distributor Code: 0086A002 2. Not support DQ250 before Year 2008 with the old protocol
Other Optional Accessories You May Need:
OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use. OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.

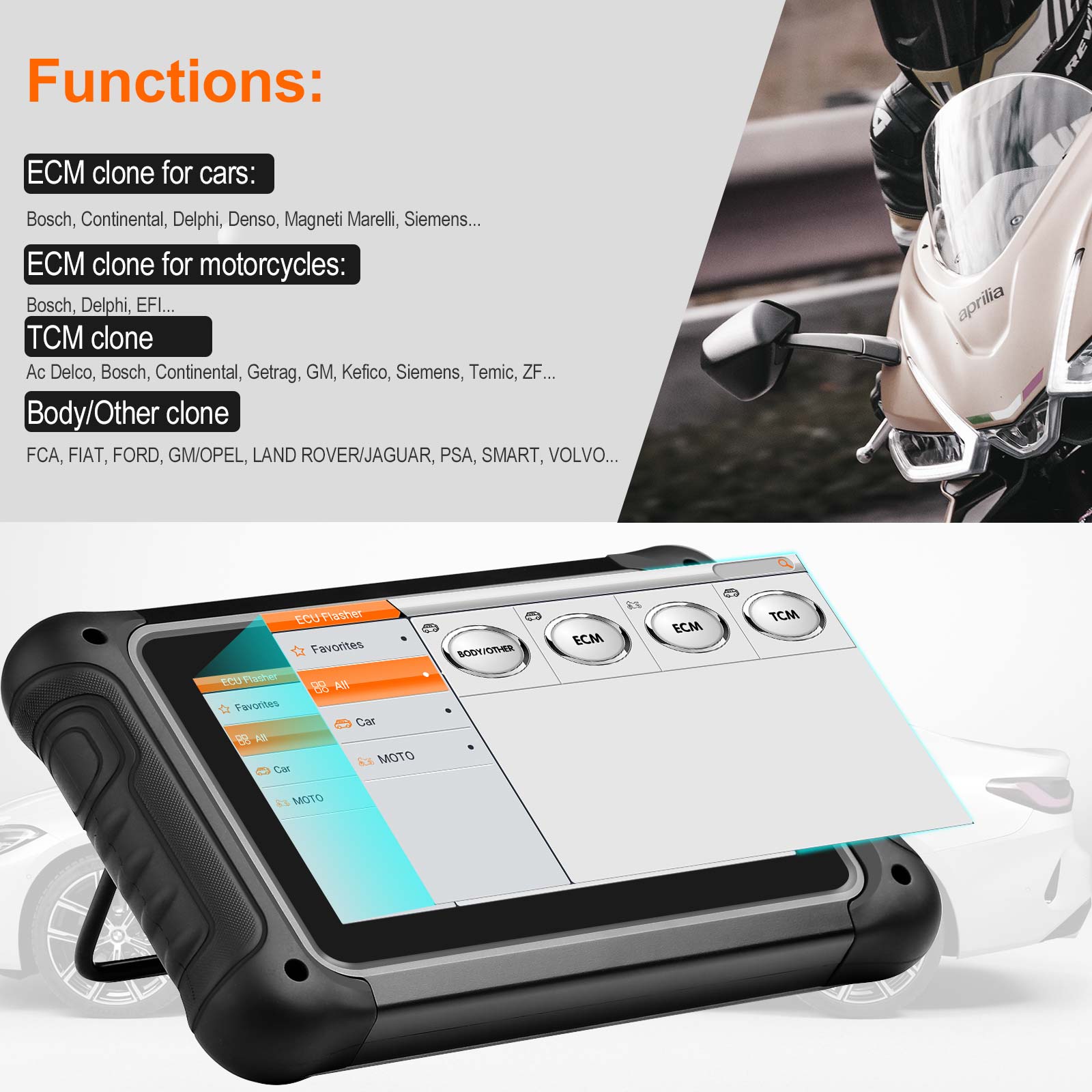

OBDSTAR DC706 Functions:

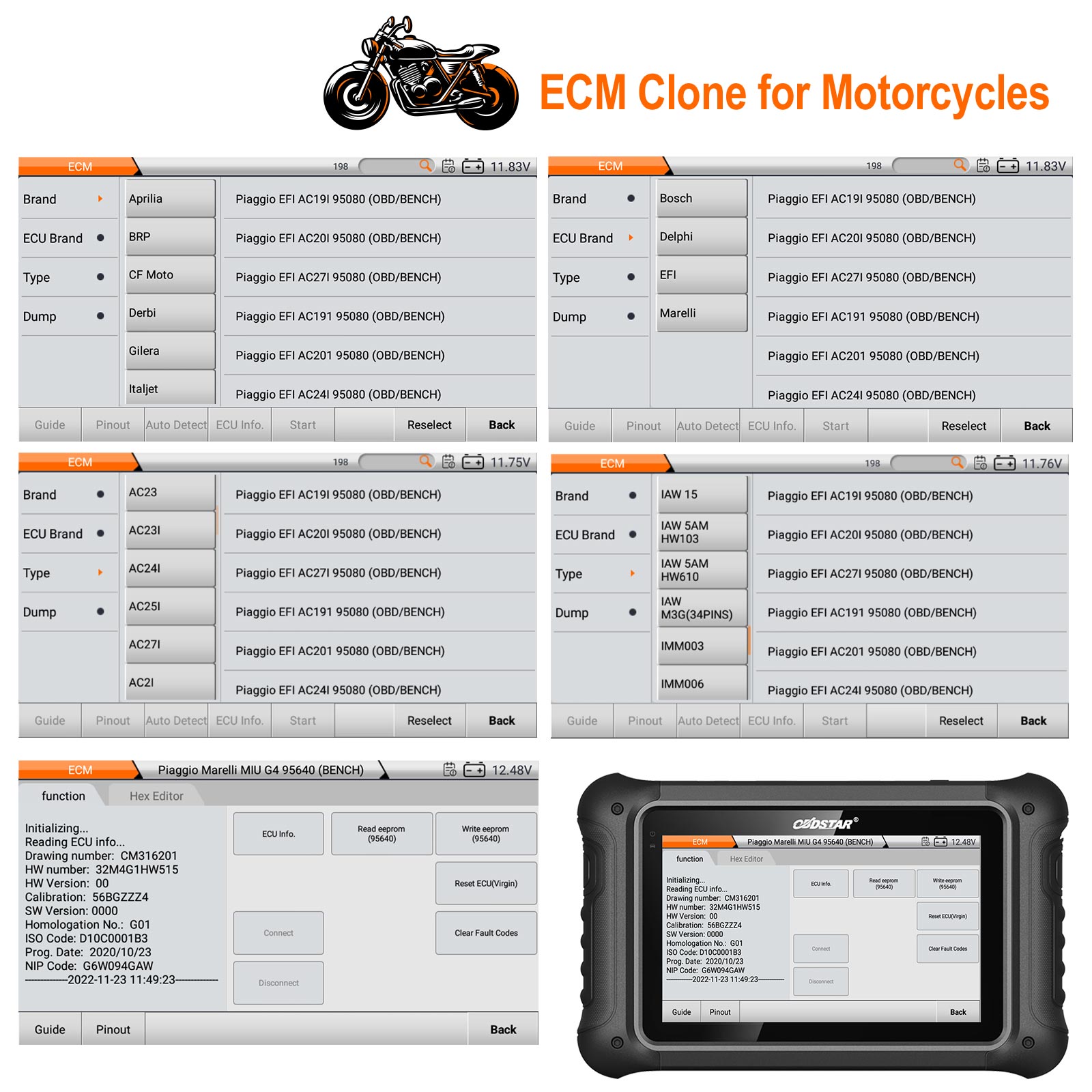

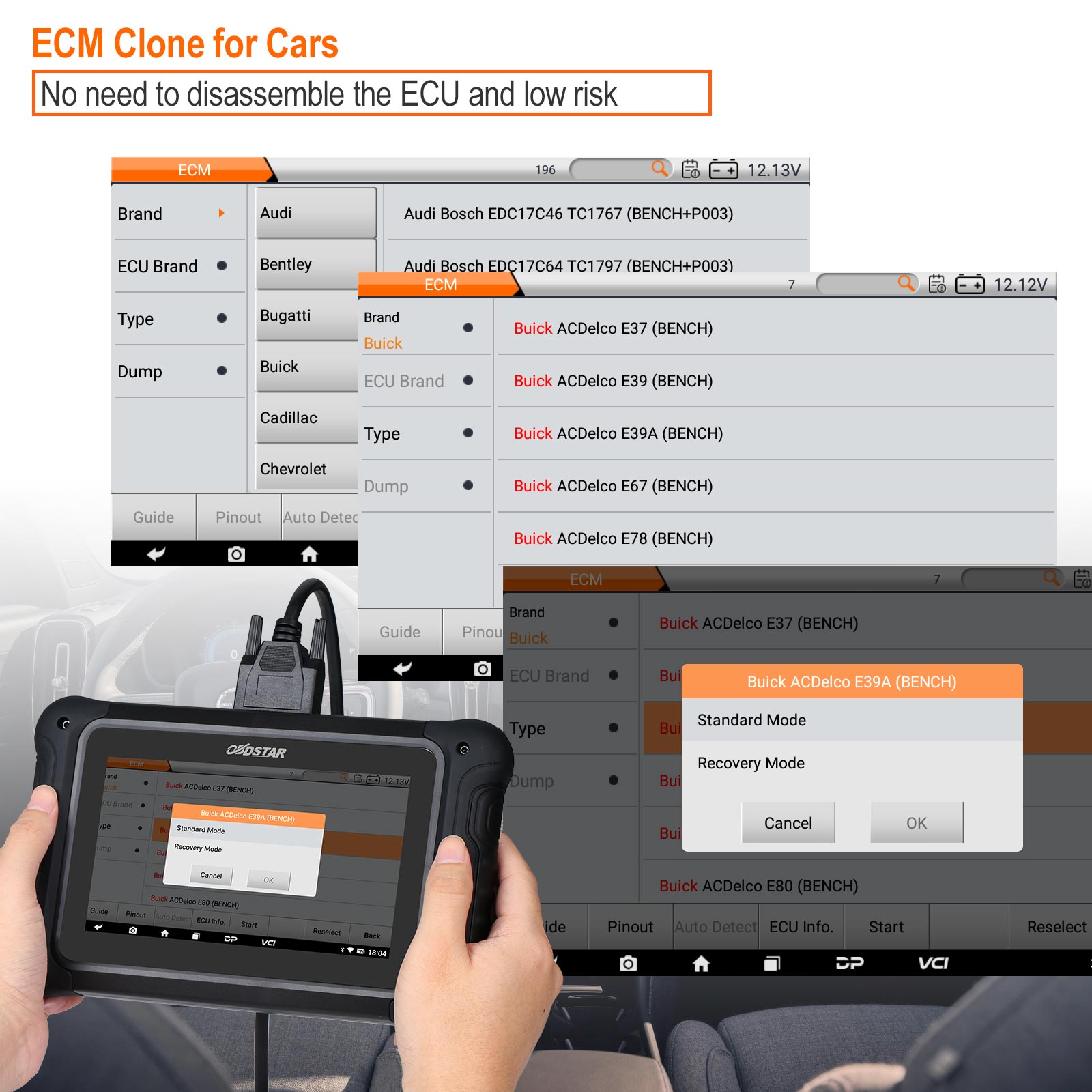

1. ECU Clone/ All by OBD or Bench 2. ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...) 3. ECM clone for motorcycles (Bosch, Delphi, EFI...) 4. TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...) 5. Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
Car ASTON MARTIN BMW FAW FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...) FORD/LINCOLN GM/OPEL HYUNDAI/KIA LAND ROVER/JAGUAR LUXGEN MASERATI MAZDA MITSUBISHI NISSAN OPEL PSA SMART SUBARU SUZUKI VOLVO VW/AUDI/SEAT/SKODA

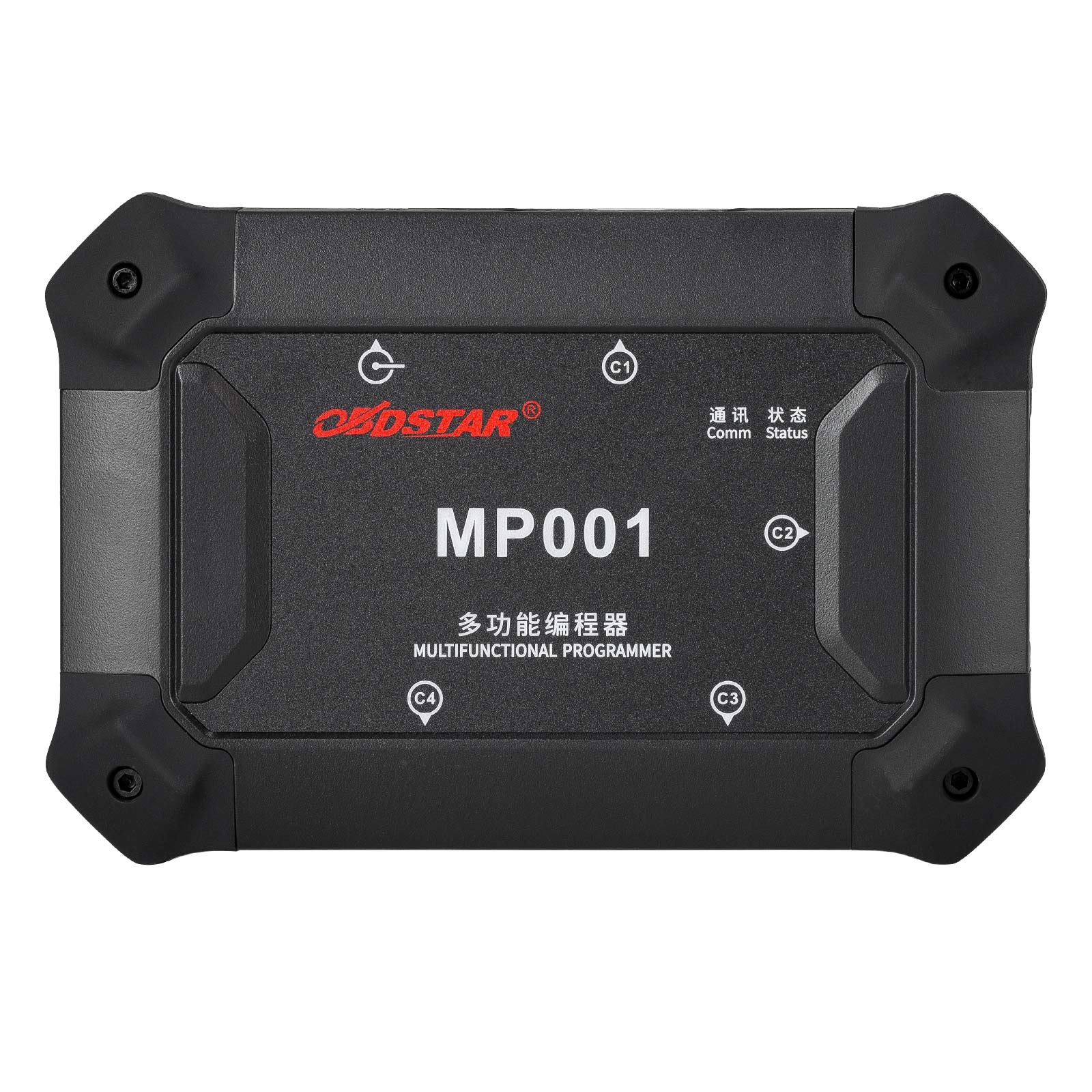

1. MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski). 2. MP001 covers all the function of P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
Following Models Can be Supported by MP001 Only
BRAND
ECU BRAND
TYPE
DUMP
Adapter
AUDI
CONTINENTAL
SIMOS18.10
TC1791
MP001
PORSCHE
CONTINENTAL
SIMOS18.10
TC1791
MP001
RENAULT
CONTINENTAL
EMS3120
TC1738
MP001
RENAULT
CONTINENTAL
EMS3125
TC1782
MP001
SEAT
CONTINENTAL
SIMOS18.10
TC1791
MP001
VOLKSWAGEN
CONTINENTAL
SIMOS18.10
TC1791
MP001
MAZDA
MITSUBISHI
5F27E
MH8104F
MP001
Software function:
EEPROM/MCU reading and writing Key flashing Steering angle repair Body computer data processing Immo off Pincode reading Battery module repair Instrument repair and more functions are under development
Note: 1. Different tablet device models require different configuration software. 2. To use MP001 programmer, you must have ECU bench jumper cables, come with the package by default

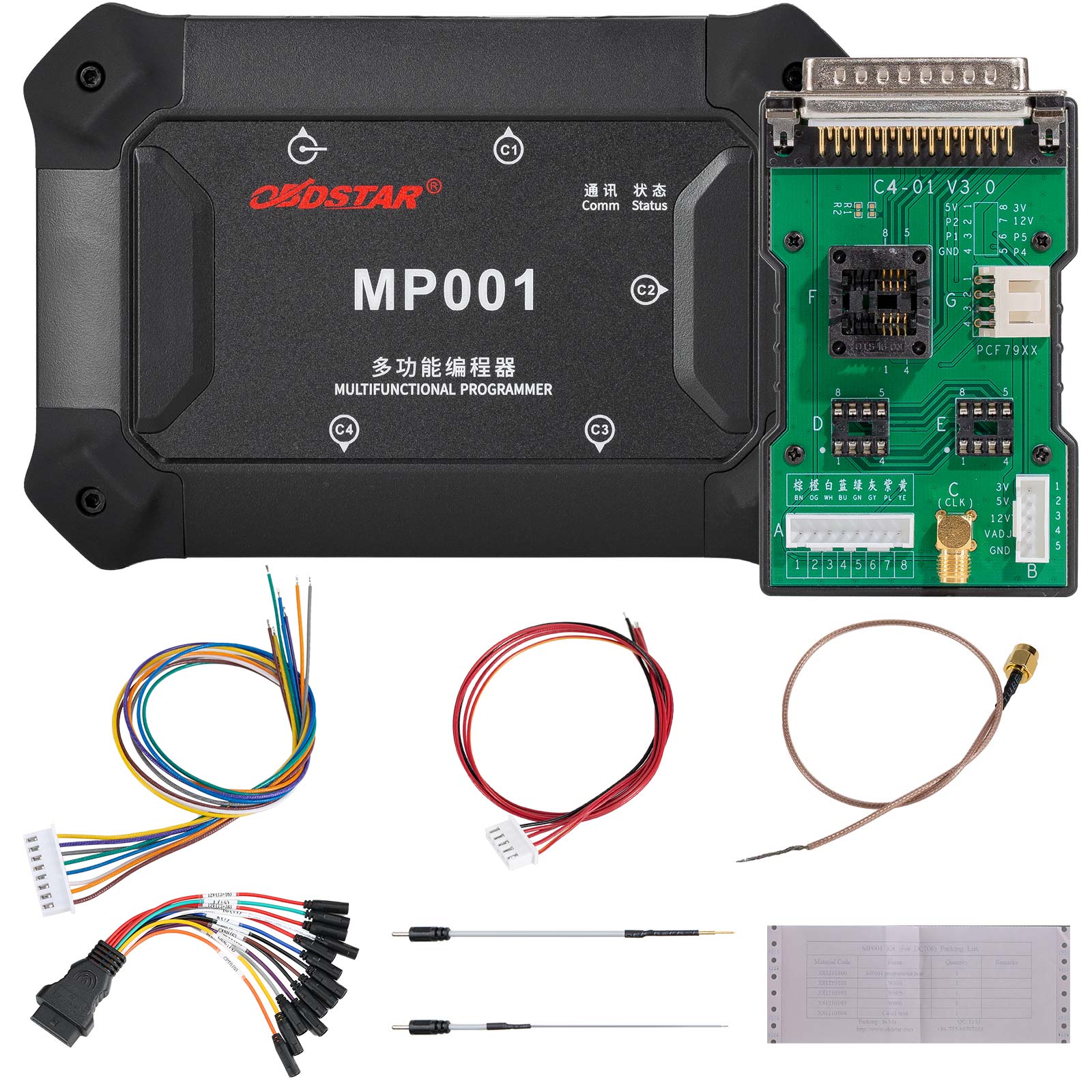

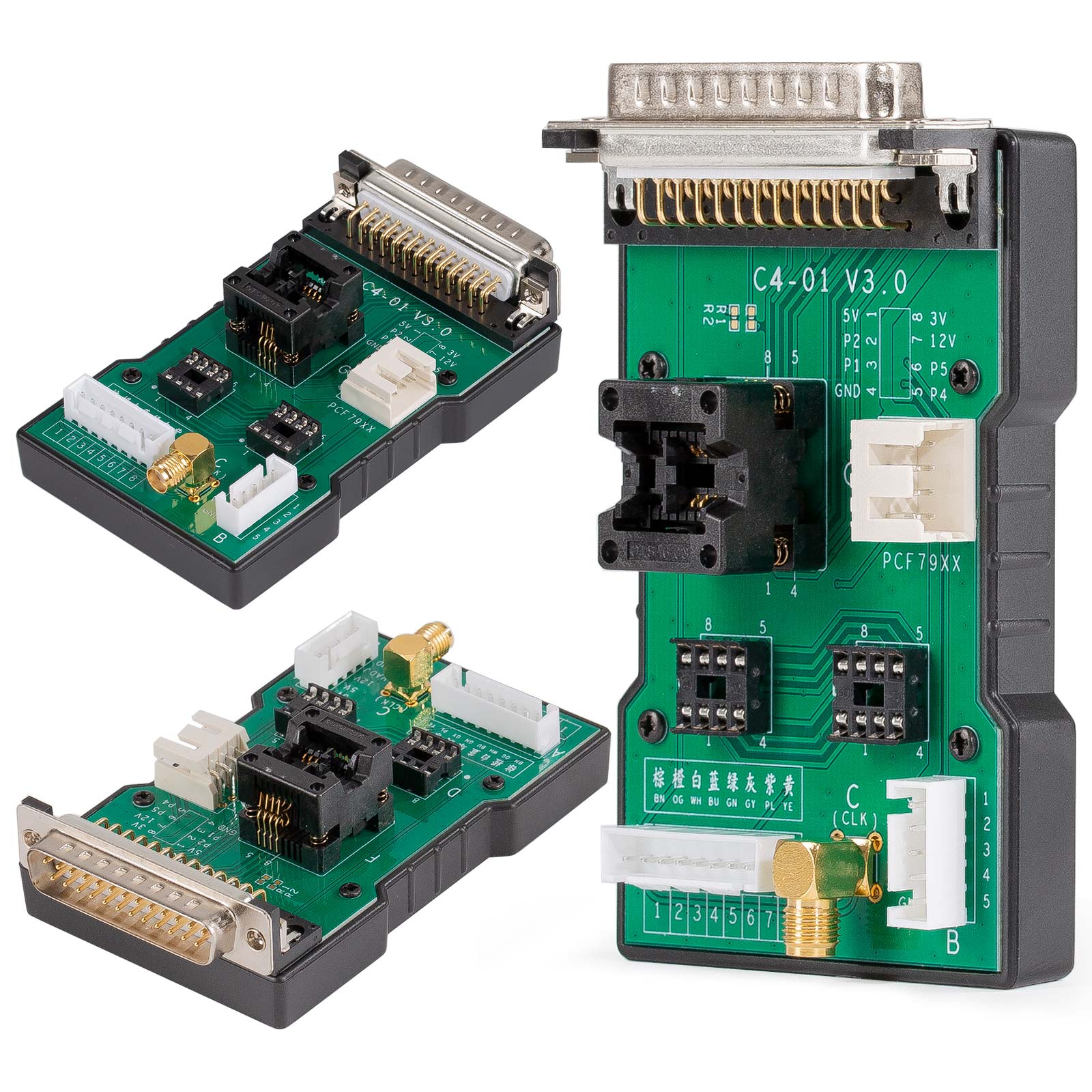

MP001 Kit Support Following Models:
BRAND
ECU BRAND
TYPE
DUMP
Adapter
ABARTH
BOSCH
ME17.3.0
TC1724N
P003/P003+/MP001
AGCO
BOSCH
EDC17CV54
TC1767
P003/P003+/MP001
ALFA ROMEO
BOSCH
EDC16C39
MPC561(2)+M58BW016D(F)B
P003+/MP001
ALFA ROMEO
BOSCH
EDC16C8
MPC556+AM29BL802C
P003+/MP001
ALFA ROMEO
BOSCH
EDC17C49
TC1797
P003/P003+/MP001
ALFA ROMEO
BOSCH
EDC17C69
TC1793
P003/P003+/MP001
ALFA ROMEO
BOSCH
ME17.3.0
TC1724N
P003/P003+/MP001
ALFA ROMEO
BOSCH
MED17.3.1
TC1766
P003/P003+/MP001
ALFA ROMEO
BOSCH
MED17.3.3
TC1793
P003/P003+/MP001
ALFA ROMEO
BOSCH
MED17.3.5
TC1793
P003/P003+/MP001
ALPINA
BOSCH
EDC17CP02
TC1766
P003/P003+/MP001
ALPINA
BOSCH
EDC17CP45
TC1797
P003/P003+/MP001
ALPINA
BOSCH
MEVD17.2.6 FXX
TC1797
P003/P003+/MP001
ALPINA
BOSCH
MEVD17.2.8
TC1797
P003/P003+/MP001
ALPINA
BOSCH
MEVD17.2.G
TC1797
P003/P003+/MP001
ALPINA
BOSCH
MG1CS201
TC298TP
P003/P003+/MP001
ASTON MARTIN
BOSCH
ME17.8.31
TC1797
P003/P003+/MP001
ASTON MARTIN
BOSCH
MED17.7.5
TC1793
P003/P003+/MP001
AUDI
BOSCH
EDC16CP34
MPC563(4)
P003+/MP001
AUDI
BOSCH
EDC16U31
MPC561(2)
P003+/MP001
AUDI
BOSCH
EDC16U31
MPC563(4)
P003+/MP001
AUDI
BOSCH
EDC16U34
MPC561(2)
P003+/MP001
AUDI
BOSCH
EDC17C46
TC1767
P003/P003+/MP001
AUDI
BOSCH
EDC17C64
TC1797
P003/P003+/MP001
AUDI
BOSCH
EDC17C74
TC1793S
P003/P003+/MP001
AUDI
BOSCH
EDC17CP04
TC1796
P003/P003+/MP001
AUDI
BOSCH
EDC17CP14
TC1796
P003/P003+/MP001
AUDI
BOSCH
EDC17CP20
TC1796
P003/P003+/MP001
AUDI
BOSCH
EDC17CP24
TC1796
P003/P003+/MP001
AUDI
BOSCH
EDC17CP44
TC1797
P003/P003+/MP001
AUDI
BOSCH
EDC17CP54
TC1793
P003/P003+/MP001
AUDI
BOSCH
ME17.5
TC1766
P003/P003+/MP001
AUDI
BOSCH
ME7.1.1
ST10C167+AM29F800BB+95P08
P003/P003+/MP001
AUDI
BOSCH
MED17.1
TC1796
P003/P003+/MP001
AUDI
BOSCH
MED17.1.1
TC1797
P003/P003+/MP001
AUDI
BOSCH
MED17.1.10
TC1793
P003/P003+/MP001
AUDI
BOSCH
MED17.1.21
TC1793
P003/P003+/MP001
AUDI
BOSCH
MED17.1.6
TC1797
P003/P003+/MP001
AUDI
BOSCH
MED17.1.62
TC1793
P003/P003+/MP001
AUDI
BOSCH
MED17.5
TC1766
P003/P003+/MP001
AUDI
BOSCH
MED17.5.1
TC1766
P003/P003+/MP001
AUDI
BOSCH
MED17.5.1
TC1796
P003/P003+/MP001
AUDI
BOSCH
MED17.5.2
TC1767
P003/P003+/MP001
AUDI
BOSCH
MED17.5.20
TC1766
P003/P003+/MP001
AUDI
BOSCH
MED17.5.21
TC1782
P003/P003+/MP001
AUDI
BOSCH
MED17.5.25
TC1782
P003/P003+/MP001
AUDI
BOSCH
MED17.5.5
TC1766
P003/P003+/MP001
AUDI
BOSCH
MED17.5.5
TC1767
P003/P003+/MP001
AUDI
BOSCH
MED9.1
MPC561(2)+M58BW016D(F)B
P003+/MP001
AUDI
BOSCH
MED9.1
MPC563(4)
P003+/MP001
AUDI
BOSCH
MED9.1.1
MPC563(4)
P003+/MP001
AUDI
BOSCH
MED9.5
MPC561(2)
P003+/MP001
AUDI
BOSCH
MED9.5.10
MPC561(2)+M58BW016D(F)B
P003+/MP001
AUDI
BOSCH
MG1CS001
SPC5777
P003/P003+/MP001
AUDI
BOSCH
MG1CS002
TC298TP
P003/P003+/MP001
AUDI
CONTINENTAL
PCR2.1
TC1796
P003/P003+/MP001
AUDI
CONTINENTAL
SIMOS12.2
TC1797
P003/P003+/MP001
AUDI
CONTINENTAL
SIMOS18.10
TC1791
MP001
AUDI
CONTINENTAL
SIMOS8.2X
TC1796
P003/P003+/MP001
AUDI
CONTINENTAL
SIMOS8.3X
TC1796
P003/P003+/MP001
AUDI
CONTINENTAL
SIMOS8.4X
TC1796
P003/P003+/MP001
AUDI
CONTINENTAL
SIMOS8.5X
TC1796
P003/P003+/MP001
AUDI
CONTINENTAL
SIMOS8.6X
TC1796
P003/P003+/MP001
BAIC
BOSCH
ME17 BLACK
TC1728
P003/P003+/MP001
BAIC
BOSCH
ME17.8.8
TC1728
P003/P003+/MP001
BAIC
BOSCH
ME17.U.6
TC1728
P003/P003+/MP001
BAIC
BOSCH
ME7.8.8
ST10F275+95080
P003/P003+/MP001
BAIC
BOSCH
MED17
TC1728
P003/P003+/MP001
BENTLEY
BOSCH
ME17.1.1
TC1797
P003/P003+/MP001
BENTLEY
BOSCH
ME17.1.6
TC1797
P003/P003+/MP001
BENTLEY
BOSCH
ME7.1.1
ST10C167+AM29F800BB+95P08
P003/P003+/MP001
BENTLEY
BOSCH
MED17.1.1
TC1797
P003/P003+/MP001
BENTLEY
BOSCH
MED17.1.6
TC1797
P003/P003+/MP001
BENTLEY
BOSCH
MG1CS002
TC298TP
P003/P003+/MP001
BENZ
BOSCH
EDC16C32
MPC561(2)
P003+/MP001
BENZ
BOSCH
EDC16CP31
MPC563(4)
P003+/MP001
BENZ
BOSCH
EDC16CP36
MPC563(4)
P003+/MP001
BENZ
BOSCH
EDC17C42
TC1767
P003/P003+/MP001
BENZ
BOSCH
EDC17C43
TC1797
P003/P003+/MP001
BENZ
BOSCH
EDC17C60
TC1793
P003/P003+/MP001
BENZ
BOSCH
EDC17C66
TC1793
P003/P003+/MP001
BENZ
BOSCH
EDC17C84
TC1782
P003/P003+/MP001
BENZ
BOSCH
EDC17CP01
TC1796
P003/P003+/MP001
BENZ
BOSCH
EDC17CP10
TC1796
P003/P003+/MP001
BENZ
BOSCH
EDC17CP46
TC1797
P003/P003+/MP001
BENZ
BOSCH
EDC17CP57
TC1793
P003/P003+/MP001
BENZ
BOSCH
EDC17CP60
TC1793
P003/P003+/MP001
BENZ
BOSCH
MED17.7.1
TC1797
P003/P003+/MP001
BENZ
BOSCH
MED17.7.2
TC1797
P003/P003+/MP001
BENZ
BOSCH
MED17.7.3
TC1797
P003/P003+/MP001
BENZ
BOSCH
MED17.7.3.1
TC1797
P003/P003+/MP001
BENZ
BOSCH
MED17.7.5
TC1793
P003/P003+/MP001
BENZ
BOSCH
MED17.7.8
TC1797
P003/P003+/MP001
BENZ
DELPHI
CPC2.X
TC1793
P003/P003+/MP001
BENZ
DELPHI
CRD2.XX
MPC5566+25LC256
P003/P003+/MP001
BMW
BOSCH
EDC15C4 KLINE
29F400BT+95P08
P003/P003+/MP001
BMW
BOSCH
EDC16C31
MPC555(6)
P003+/MP001
BMW
BOSCH
EDC16C31
MPC561(2)
P003+/MP001
BMW
BOSCH
EDC16C31
MPC563(4)
P003+/MP001
BMW
BOSCH
EDC16CP35
MPC561(2)+M58BW016D(F)B
P003+/MP001
BMW
BOSCH
EDC17C06
TC1766
P003/P003+/MP001
BMW
BOSCH
EDC17C50
TC1797
P003/P003+/MP001
BMW
BOSCH
EDC17CP02
TC1766
P003/P003+/MP001
BMW
BOSCH
EDC17CP45
TC1797
P003/P003+/MP001
BMW
BOSCH
MD1CS001
SPC5777
P003/P003+/MP001
BMW
BOSCH
ME17.2
TC1797
P003/P003+/MP001
BMW
BOSCH
MED17.2
TC1796+S29CD032J
P003/P003+/MP001
BMW
BOSCH
MEVD17.2
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.3
TC1793
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.4
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.5
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.6 EXX
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.6 FXX
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.8
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.9
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.G
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.H
TC1797
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.K
TC1793
P003/P003+/MP001
BMW
BOSCH
MEVD17.2.P
TC1797
P003/P003+/MP001
BMW
BOSCH
MG1CS003
SPC5777
P003/P003+/MP001
BMW
BOSCH
MG1CS201
TC298TP
P003/P003+/MP001
BUGATTI
BOSCH
MED17.1.1
TC1797
P003/P003+/MP001
BUICK
BOSCH
EDC16C39
MPC561(2)+M58BW016D(F)B
P003+/MP001
BUICK
BOSCH
ME9.6.1
MPC561(2)
P003+/MP001
BUICK
BOSCH
MED9.6.1
MPC561(2)
P003+/MP001
CADILLAC
BOSCH
ME9.6.1
MPC561(2)
P003+/MP001
CADILLAC
BOSCH
MED9.6.1
MPC561(2)
P003+/MP001
CASE
BOSCH
EDC17CV54
TC1767
P003/P003+/MP001
CHALLENGER
BOSCH
EDC17CV54
TC1767
P003/P003+/MP001
CHANGAN
BOSCH
ME17.8.8 BLACK
TC1728
P003/P003+/MP001
CHANGAN
BOSCH
ME17.U.6
TC1728
P003/P003+/MP001
CHANGAN
BOSCH
MED17
TC1728
P003/P003+/MP001
CHANGAN
BOSCH
MED17.9.63
TC1793
P003/P003+/MP001
CHANGHE
BOSCH
ME17.8.8
TC1728
P003/P003+/MP001
CHERY
BOSCH
ME17.8.8
TC1728
P003/P003+/MP001
CHERY
BOSCH
ME17.U.6
TC1728
P003/P003+/MP001
CHERY
BOSCH
MED17
TC1728
P003/P003+/MP001
CHEVROLET
BOSCH
EDC16C37
MPC563(4)
P003+/MP001
CHEVROLET
BOSCH
EDC16C39
MPC561(2)+M58BW016D(F)B
P003+/MP001
CHEVROLET
BOSCH
EDC16C9
MPC555(6)
P003+/MP001
CHEVROLET
BOSCH
EDC17C59
TC1767
P003/P003+/MP001
CHEVROLET
BOSCH
EDC17CP47
TC1797
P003/P003+/MP001
CHEVROLET
BOSCH
ME17.8.8
TC1728
P003/P003+/MP001
CHEVROLET
BOSCH
ME7.9.9 KLINE
ST10F275+95080
P004/P003/P003+/MP001
CHEVROLET
BOSCH
ME9.6.1
MPC561(2)
P003+/MP001
CHEVROLET
BOSCH
MED9.6.1
MPC561(2)
P003+/MP001
CHRYSLER
BOSCH
EDC16CP31
MPC563(4)
P003+/MP001
CHRYSLER
BOSCH
EDC16U31
MPC561(2)
P003+/MP001
CHRYSLER
BOSCH
EDC16U31
MPC563(4)
P003+/MP001
CHRYSLER
BOSCH
EDC17C49
TC1797
P003/P003+/MP001
CHRYSLER
CONTINENTAL
GPEC2
MPC5566+95320
P003/P003+/MP001
CHRYSLER
CONTINENTAL
GPEC3
MPC5674F
P003/P003+/MP001
CITROEN
BOSCH
EDC16C34
MPC561(2)
P003+/MP001
CITROEN
BOSCH
EDC16C39
MPC561(2)+M58BW016D(F)B
P003+/MP001
CITROEN
BOSCH
EDC16CP39
MPC563(4)
P003+/MP001
CITROEN
BOSCH
EDC17C10
TC1797
P003/P003+/MP001
CITROEN
BOSCH
EDC17C60
TC1793
P003/P003+/MP001
CITROEN
BOSCH
EDC17CP11
TC1796
P003/P003+/MP001
CITROEN
BOSCH
EDC17CP42
TC1797
P003/P003+/MP001
CITROEN
BOSCH
EDC17CP52
TC1797
P003/P003+/MP001
CITROEN
BOSCH
ME17.9.52
TC1782
P003/P003+/MP001
CITROEN
BOSCH
ME7.4.5
ST10F275+95320
P004/P003/P003+/MP001
CITROEN
BOSCH
MED17.4
TC1766
P003/P003+/MP001
CITROEN
BOSCH
MED17.4
TC1796+S29CD032J
P003/P003+/MP001
CITROEN
BOSCH
MED17.4.4
TC1793
P003/P003+/MP001
CITROEN
BOSCH
MEV17.4
TC1766
P003/P003+/MP001
CITROEN
BOSCH
MEV17.4.2
TC1766
P003/P003+/MP001
CITROEN
BOSCH
MEV17.4.2
TC1767
P003/P003+/MP001
CITROEN
BOSCH
MG1CS042
TC298TP
P003/P003+/MP001
DACIA
BOSCH
EDC17C42
TC1767
P003/P003+/MP001
DACIA
BOSCH
EDC17C84
TC1782
P003/P003+/MP001
DACIA
BOSCH
EDC17CP19
TC1766
P003/P003+/MP001
DACIA
BOSCH
ME17.9.20
TC1782
P003/P003+/MP001
DACIA
CONTINENTAL
EMS3110
TC1766
P003/P003+/MP001
DAEWOO
BOSCH
EDC16C39
MPC561(2)+M58BW016D(F)B
P003+/MP001
<

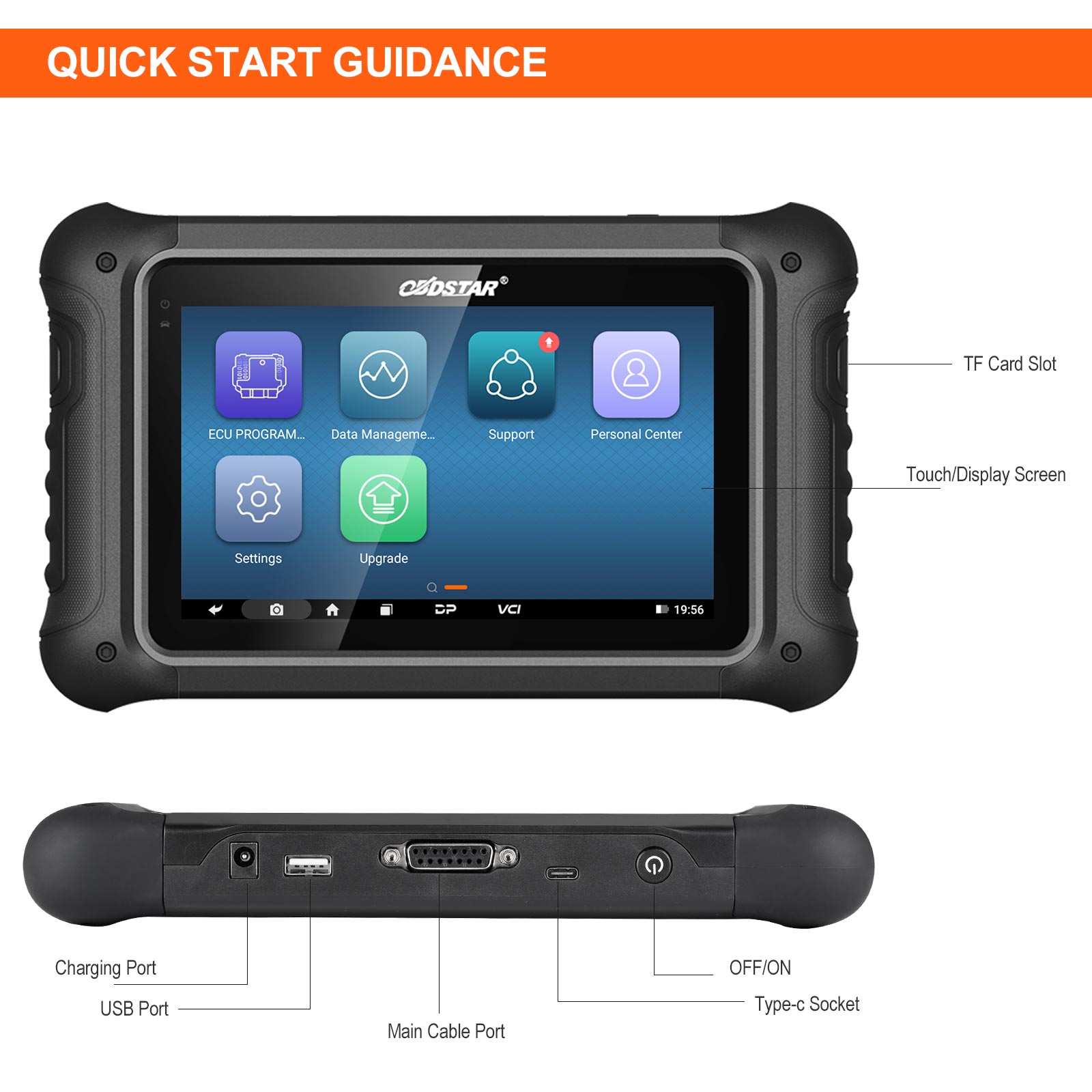

OBDSTAR DC706 ECU Tool Full Version with MP001 Set for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy. With MP001 Set to read/write Simos 18 or more ECUs. Package Contains:OBDSTAR DC706 ECU Tool Full Version and MP001 Programmer Set
OBDSTAR DC706 Full Version with MP001 Set Highlights:
1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... 2. Support 710+ ECM types 3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...) 4. Support VW DQXXX (TCM) calibrate mileage 5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone 6. Support motorcycle BRP ME17.8.5 ECU clone 7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1)) 8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type 9. Support automatic identification 10. Strong help data files 11. All by OBD or Bench mode 13. Please check OBDSTAR DC706 Full Version Support List 14. One Year Free Update Onine 15. DC706 ECU Tool Full Version supports Indian TATA and Mahindra (Check in V30.41 ECM software) 16. Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU 17. MP001 fully supports read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski). 18. MP001 covers all the function of P003+ and has more SlMOS 18 than P003+ ( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
Notice: 1. Our Distributor Code: 0086A002 2. Not support DQ250 before Year 2008 with the old protocol
Other Optional Accessories You May Need:
OBDSTAR VW 7-in-1 TCM Kit supports ECU clone, Read/Write MAP, Diag, Cluster Calibration and other functions for VW, AUDI automatic transmission. It's all by OBD or bench mode and no need to take off the TCM of the car, easy to use. OBDSTAR TCM Connectors use for transmission mileage calibration and ECU cloning functions, no jumper connection required, one click read/write, easy to use, time saving and safe.
OBDSTAR DC706 Functions:

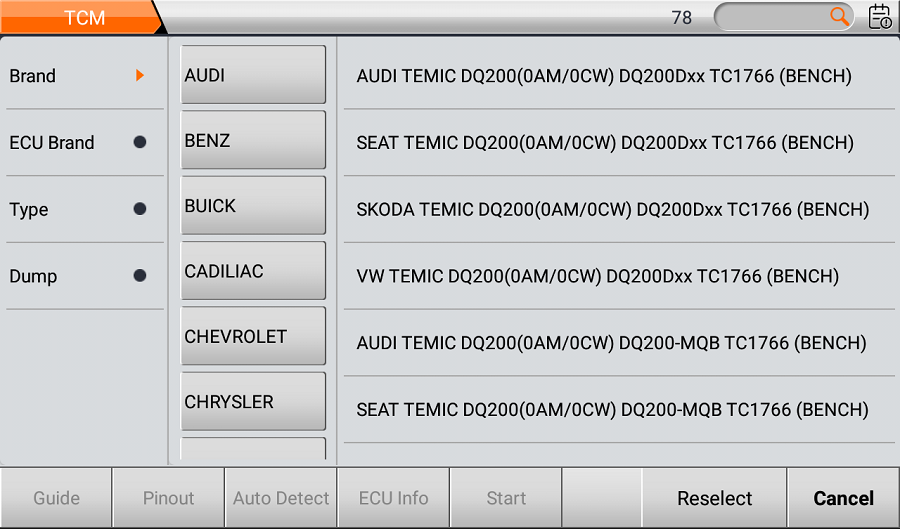

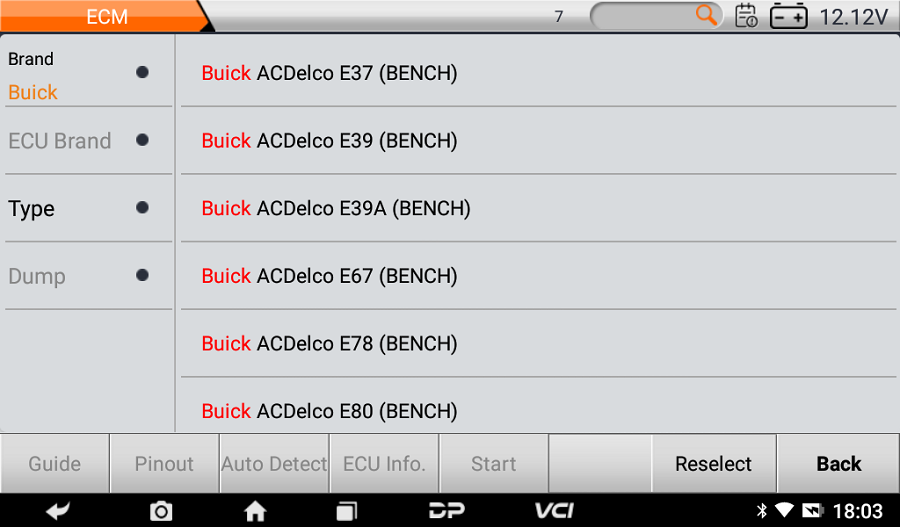

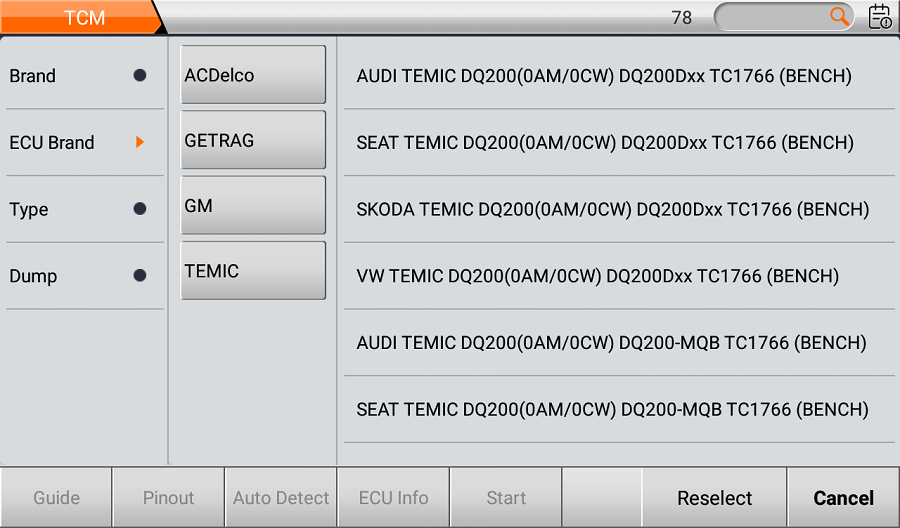

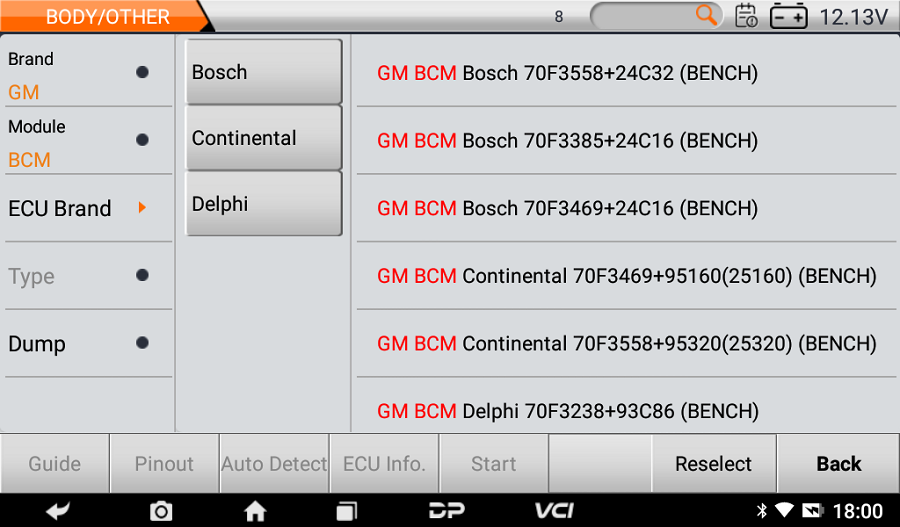

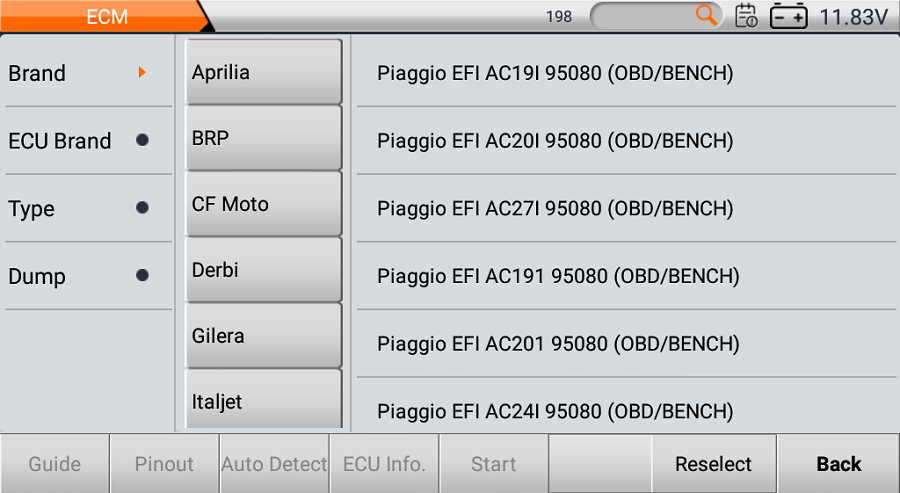

1. ECU Clone/ All by OBD or Bench 2. ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...) 3. ECM clone for motorcycles (Bosch, Delphi, EFI...) 4. TCM clone (Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...) 5. Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)
Car ASTON MARTIN BMW FAW FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...) FORD/LINCOLN GM/OPEL HYUNDAI/KIA LAND ROVER/JAGUAR LUXGEN MASERATI MAZDA MITSUBISHI NISSAN OPEL PSA SMART SUBARU SUZUKI VOLVO VW/AUDI/SEAT/SKODA
1. MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski). 2. MP001 covers all the function of P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
Following Models Can be Supported by MP001 Only
BRAND
ECU BRAND
TYPE
DUMP
Adapter
AUDI
CONTINENTAL
SIMOS18.10
TC1791
MP001
PORSCHE
CONTINENTAL
SIMOS18.10
TC1791
MP001
RENAULT
CONTINENTAL
EMS3120
TC1738
MP001
RENAULT
CONTINENTAL
EMS3125
TC1782
MP001
SEAT
CONTINENTAL
SIMOS18.10
TC1791
MP001
VOLKSWAGEN
CONTINENTAL
SIMOS18.10
TC1791
MP001
MAZDA
MITSUBISHI
5F27E
MH8104F
MP001
Software function:
EEPROM/MCU reading and writing Key flashing Steering angle repair Body computer data processing Immo off Pincode reading Battery module repair Instrument repair and more functions are under development

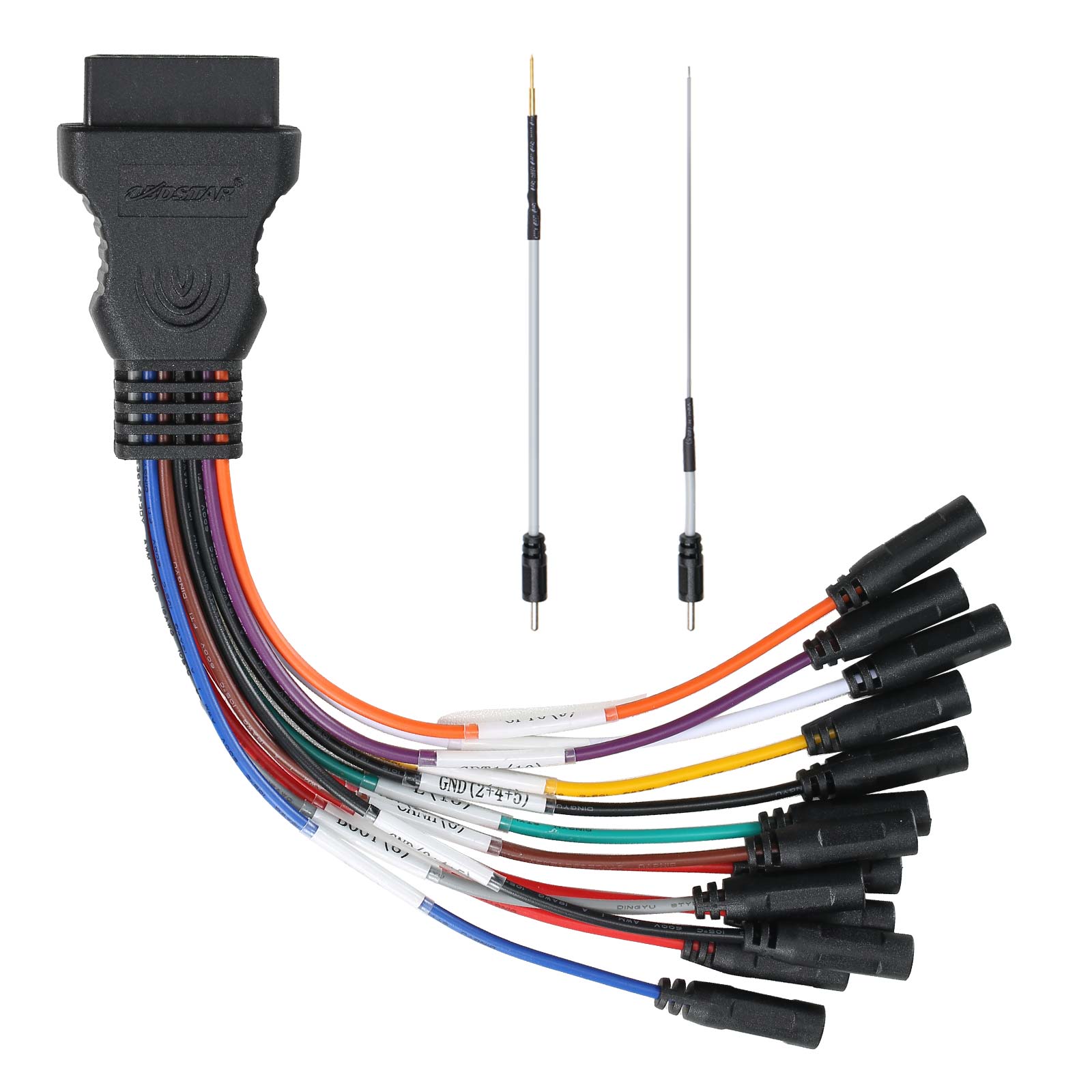

Note: 1. Different tablet device models require different configuration software. 2. To use MP001 programmer, you must have ECU bench jumper cables, come with the package by default
-3%
