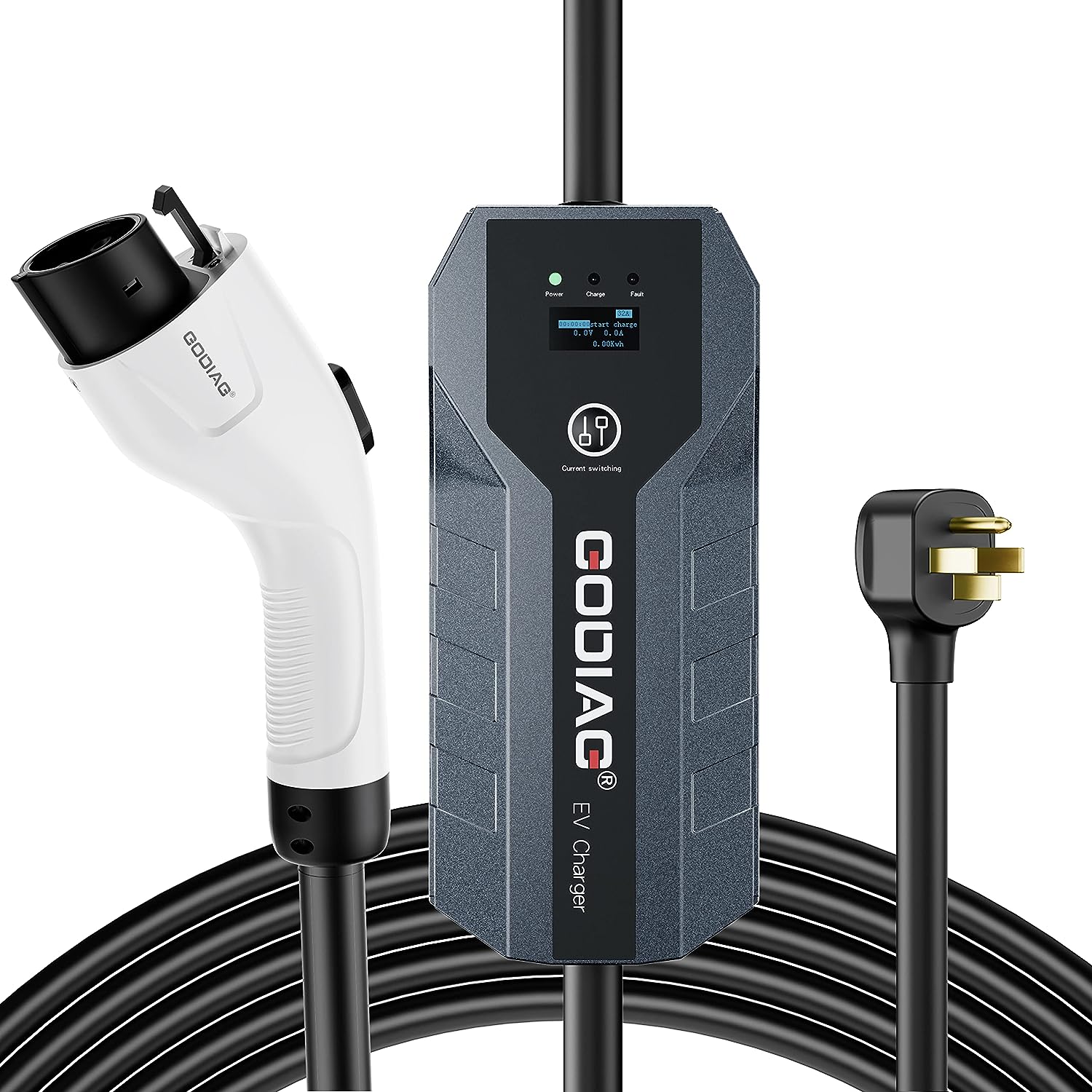

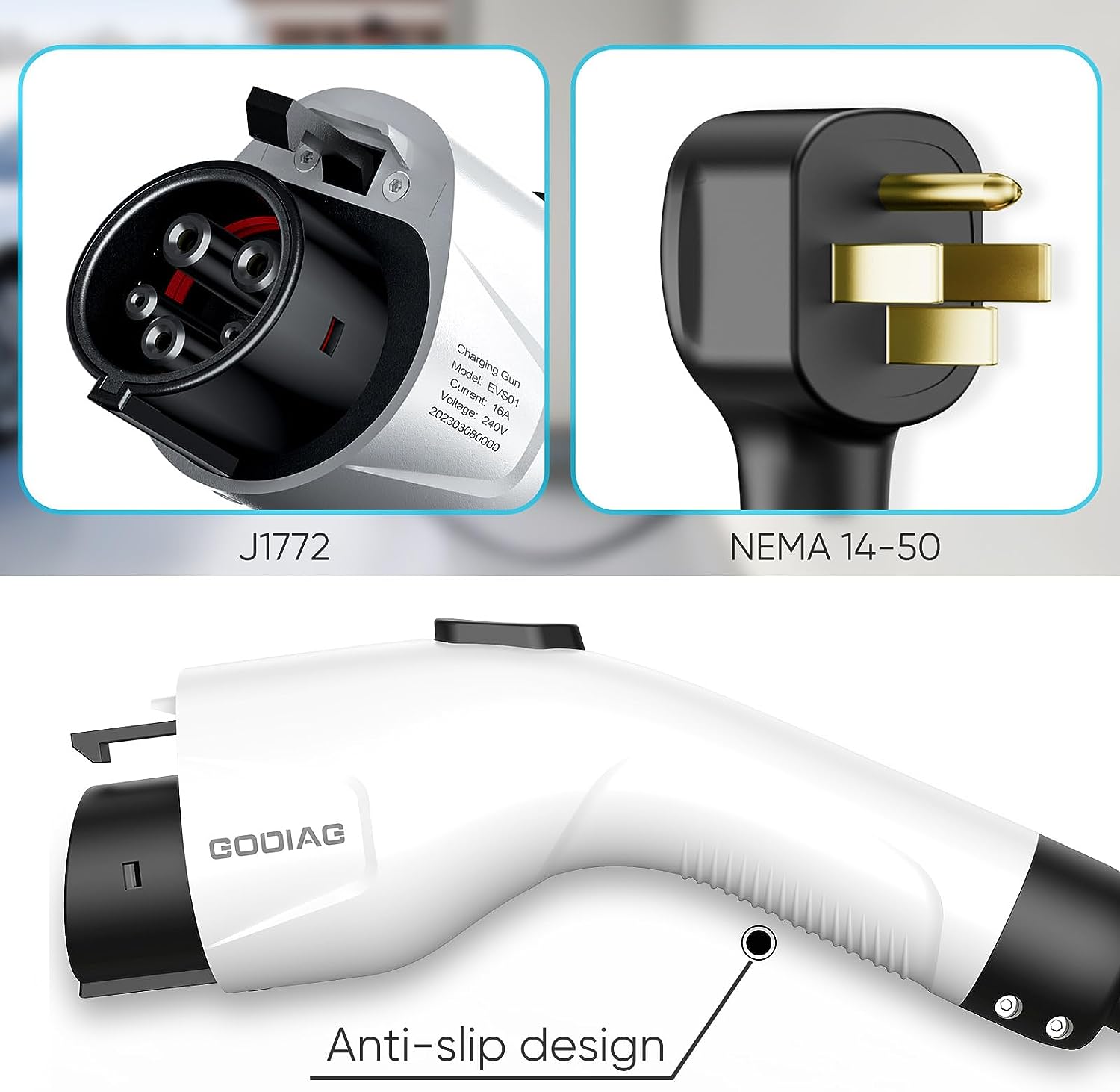

GODIAG Level 2 EV Charger(32Amp, 220V-240V, NEMA 14-50 Plug, 21ft Cable),10/16/24/32A Adjustable EV Charger for Home Level 2 J1772 EVs, PHEVs, Motorcycle EVsGODIAG EV charger is suitable for 99% of electric vehicles with the standard J1772 charging port in the market of United States. It is portable and lightweight compared with the similar products. It is an intelligent product with small size, light weight, multi-purpose and multi-protection. GODIAG EV charger can be applied to the US standard Level 1/Level2 two-mode socket, namely 110-120v/220-240V dual voltage mode, the voltage is automatically recognized and converted, and the charging efficiency is better than the vehicle’s original charger.
With the 4-level current adjustment, it can better adapt to various new and old models on the market. Since a more suitable current is helpful for the maintenance of the car battery, GODIAG EV charger is a perfect choice for your beloved cars.
Product Features:1. GODIAG EV charger is equipped with
NEMA 6-20 plug and
NEMA 5-15P adapter cable, which can be applied to
Level 1/ Level 2 two-mode of socket, namely
110-120V/220-240V dual voltage mode, and automatically identify and convert the voltage.
2. It has optional current adjustment,
with 4 gears,
namely 8/10/13/16 Amp, which can be realized by pressing the adapter adjustment button, so it can be applied to different current charging modes of new and old models on the market.

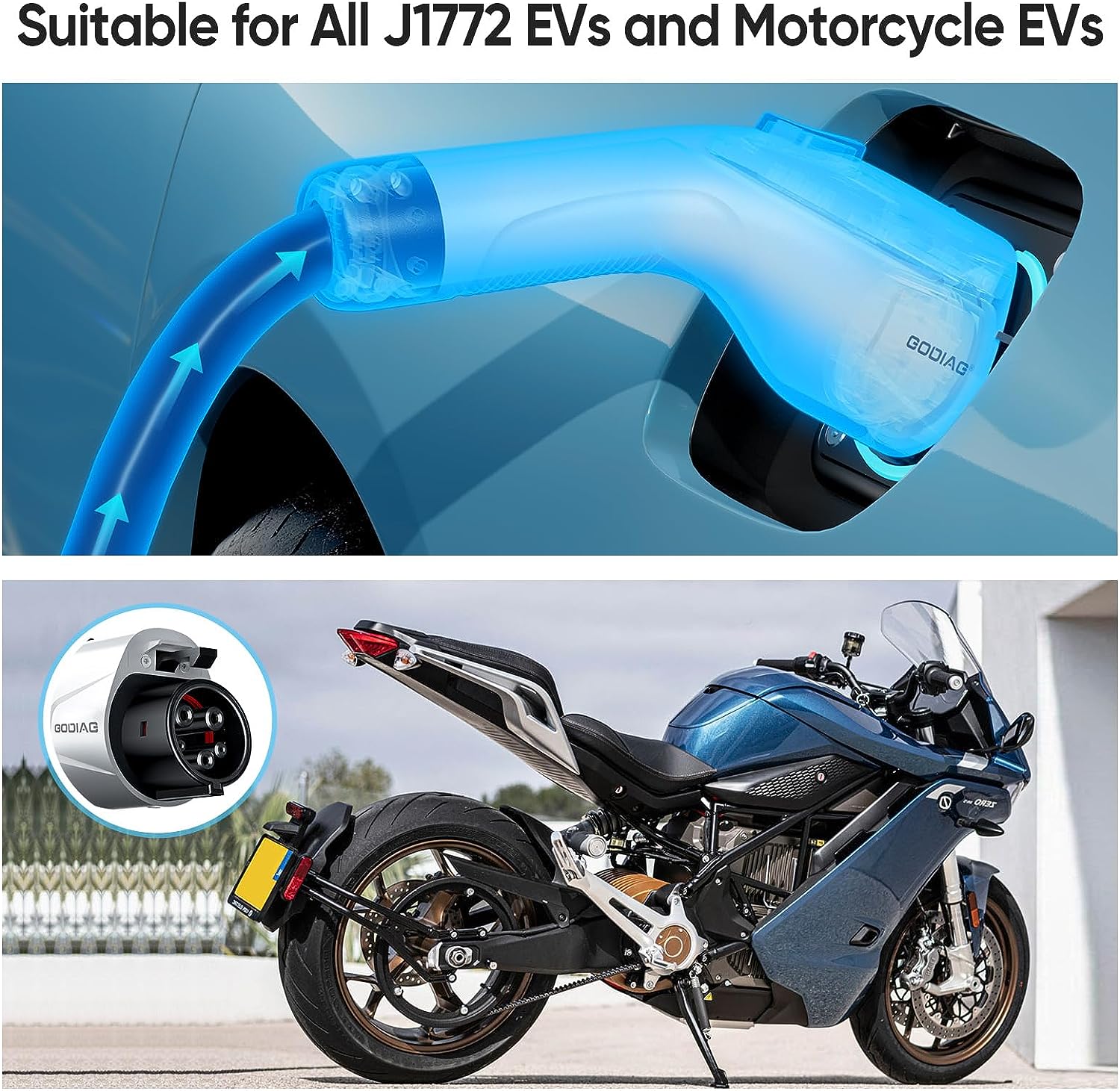

3. Compatible with 99% of electric vehicles models with
standard J1772 charging ports, such as
EV, PEV, BMW i3, Hyundai Kona, Nissan LEAF, Ford Mustang, Chevrolet Bolt, Audi e-tron, Porsche Taycan, Kia Niro and other models on the market , and Tesla must be equipped with an adapter.
4. The product offers
leakage protection/overheating protection/voltage protection/current protection/lightning and surge protection/static protection/waterproof and dustproof, pressure resistance and flame retardant, etc.

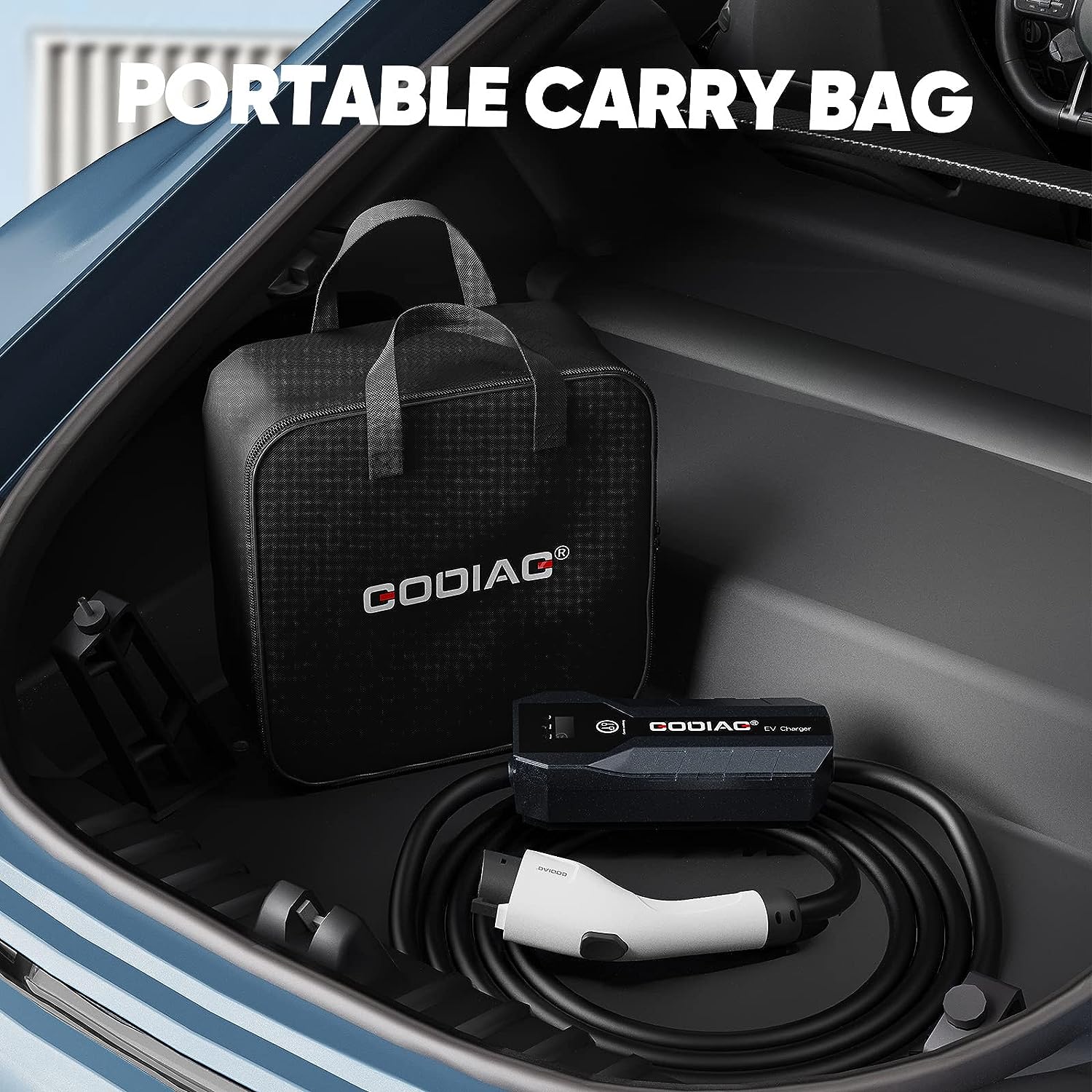

Note: There is no grounding protection.5. Portable style, as long as it is placed in the car, whether it is at home or outdoors, as long as there is electricity, it can be used to charge cars. The product is equipped with a handbag, so it is very easy to carry.
6. Intelligent charging, just connect the power supply, the charger will automatically detect the connection status and protocol, and then start charging, it can also automatically solve the charging problem during the charging process. You will be notified by an indicator light when you encounter an unsolvable problem.
7. Suitable for all weather (64 °F ~ 122 °F, IP65 waterproof).
8. The product has passed the
FCC certification, as well as the UL test report, and the wire has passed the UL certification to ensure the safety and quality.
Product Highlights:1. NEMA 5-15P CHARGER - Boosting 110V (Level 1 only) up to 16A, and you will be able to access level 1 charging.
2. NEMA 6-20 CHARGER - Boosting 240V (Level 2) up to 16A, it provides a rapid charging rate of 3.86kw/hour, which equates to approximately 11 miles per hour of charge. Our level 2 charging cable will offer you 3x the charging speed in comparison to your car's original charger.
3. FAST CHARGING - Designed with the intention of making EV charging quick and effortless. Utilizing the standard J1772 charging protocol, this charging cable is compatible with all electric cars and plug-in hybrids. Compact and durable, it is the perfect charging cable for home use and with a 16.4ft cable that's long enough for most driveways or garages.

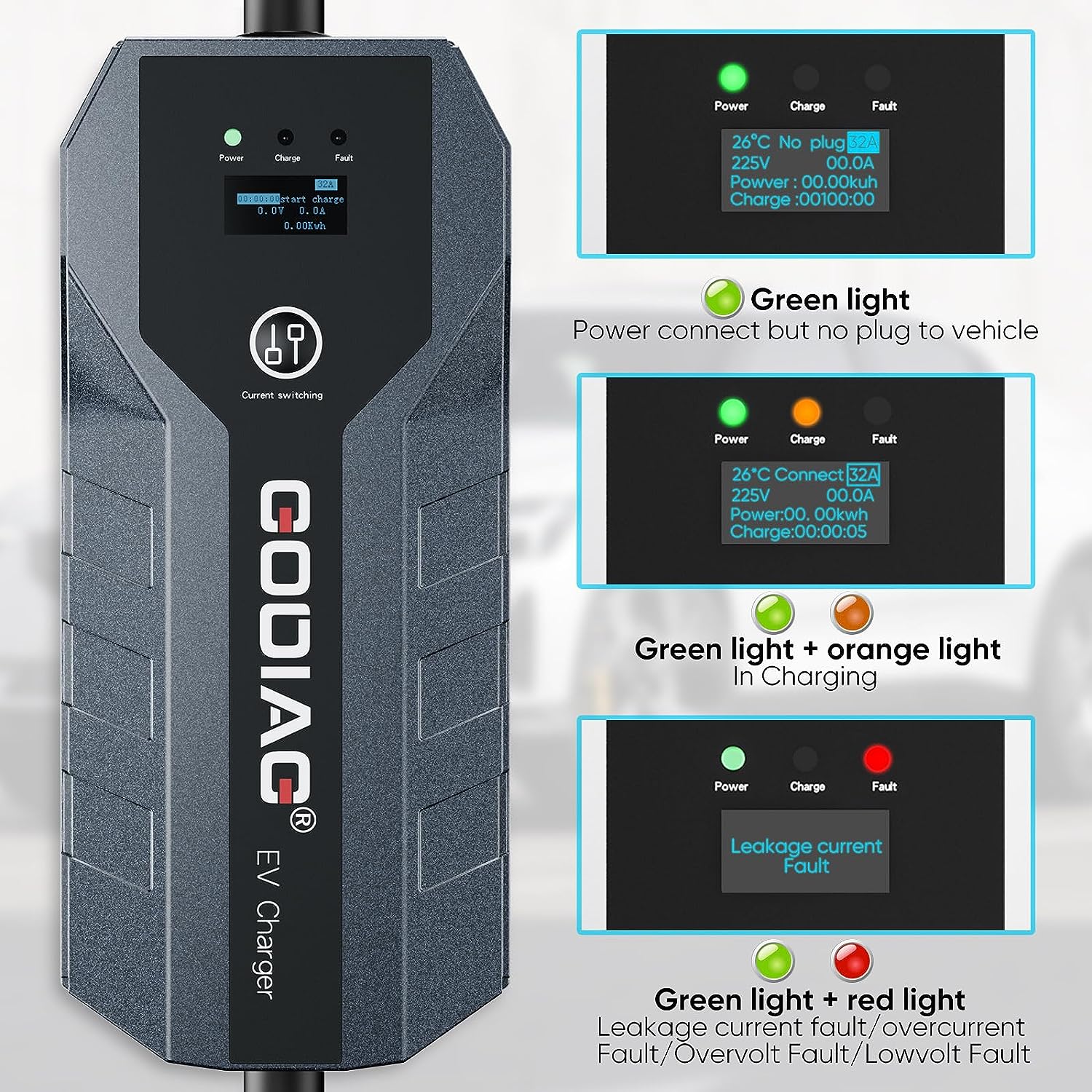

4. HIGH QUALITY - The charging station is rugged and robust, equipped with overvoltage, overheat and overcurrent protection. The indicating light on the charging station helps to show the various stages of charging and to warn of possible errors.
Easy Operation:1. The vehicle is in P gear or stopped and turned off: some models cannot charge when the car is not turned off!
2. Open the cover of the charging port and check whether there are foreign objects such as water stains or mud sand on the interface, which must be cleaned up.
3. Insert the charger into the charging port and push it to the end: Do not press the button switch when inserting the charger, and you will hear a "click" lock sound indicating that it has been inserted in place.
5. At this time, the vehicle will appear charging, or the charging adapter will light up to remind you.
6. After charging is completed, press the buckle on the charger and pull out the charger.
7. Store the charger for the next use.
Note:1.When the vehicle is in charging process, please do not operate the electronic equipment of the vehicle.2. If it is charging in the open air in a rainy day, please do not charge the car when there is heavy rain or severe ice and snow.3. Please confirm that the charging socket must meet the rated current of the charger to avoid overloading and damaging to the charger or battery.
Wide Application:Household, company, and outdoor travel ,etc.
Supported Vehicle Models:works with all Electric Vehicles (EV) sold in North America and Japan, including:
Aston Martin (all, including Rapide)
Audi (all, including A3, Q7, eTron)
Atieva (all)
BMW (all, including i3, i8, 330e, x3. x5, 40e, iDrive, 540e, 740e, xDrive 40e)
Brammo (all)
Cadillac (all, including ELR, CT6 Plug-In Hybrid)
Chevrolet (all, including Spark EV, Volt, Bolt EV)
Chrysler (all, including Pacifica Hybrid)
Farraday Future (all)
Fiat (all, including 500e)
Fisker (all, including Karma)
Ford (all, including Focus Electric, Fusion Energi, C-Max Energi)
Honda (all, including Accord Plug-In, Fit EV, Clarity EV, Clarity Hybrid Plug-In)
Hyundai (all, including Ioniq and Sonata Plug-In Hybrid)
Infiniti (all)
Jaguar (all, including iPace)
Karma (all, including Revero)
Kia (all, including Niro Plug-In Hybrid, Soul EV, Optima Plug-In Hybrid)
McLaren (all, including P1)
Mercedes (all, including B-Class ED, B250e, GLE350e, GLE550e, S550e)
Mini (all, including Cooper S-E Countryman ALL4 Plug-In Hybrid)
Mitsubishi (all, including iMiev, Outlander Hybrid Plug-In)
Nissan (all, including LEAF, eNV-2000)
Porsche (all, including Cayenne S-E Hybrid, Panamera S-E Hybrid, MissionE, 918 Spyder)
Smart (all, including Electric Drive, ED)
Tesla, (all, REQUIRES ADAPTER[should be included with all tesla's], including Model S, Model X, Model 3, Model Y, Roadster, Roadster II)
Toyota (all, including Prius Plug-In, Prius Prime, RAV4 EV)
Victory (all, including Empulse)
Volkswagen (all, including eGolf)
Volvo (all, including XC60-T8, S90-T8 XC90-T8)
Zero (all post 2017 with J1772 inlet)
Product Specifications: | Length | 5M(16.4ft) |
| Color | Adapter: Pearl White, Charger host: White, Cable: Black |
| Material | Shell: Plastic, Wire: Copper core wire |
| Executive standard | SAE J1772-2010 |
| Rated current | 16A |
| 4-level current adjustment | 8/10/13/16 A |
| Rated power | 1.76KW/3.8KW |
| Working environment | -30°C~50°C |
| Cable specification | 16A 3*14AWG |
| Protection class | IP65 |

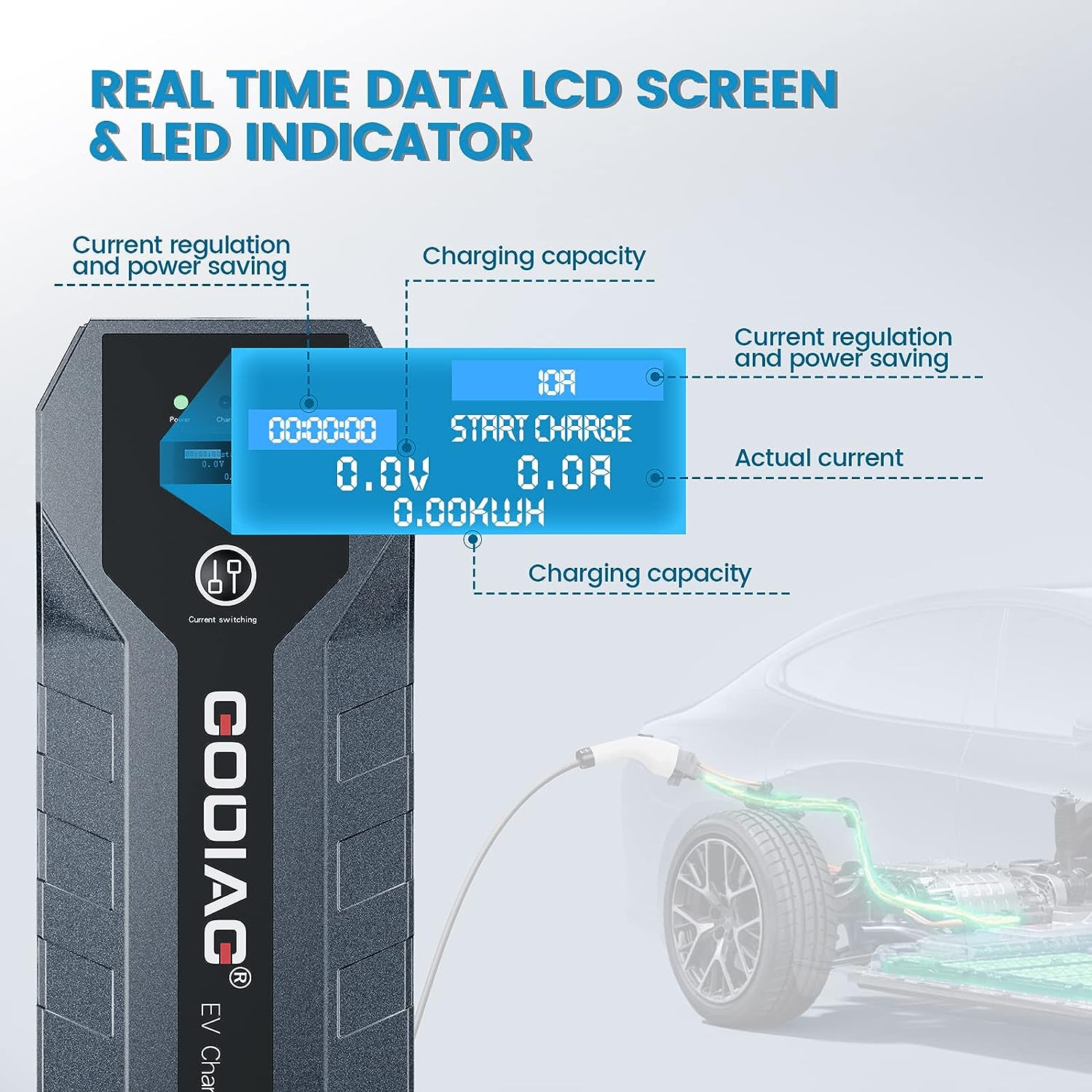

| User Interface | Display |
| Supported version | J1772 US standard vehicle interface |
| Product weight | 2600g |
Package Includes:1pc x charger host
1pc x charging cable
1pc x manual
1pc x tool kit
