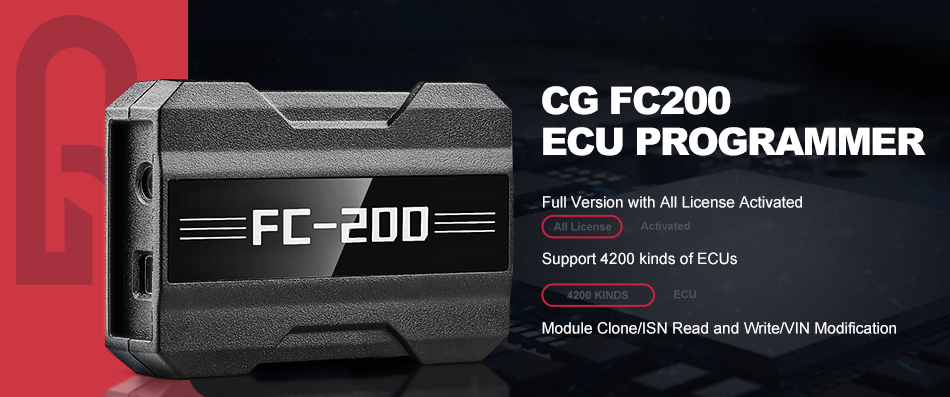

CG FC-200 Highlights:
1. Auto ECU Programmer for repair necessary-Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.
Support almost all the BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.
2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD
Quickly solve the problem for data collection of bmw all key lost.
With more stable and efficient unremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.
3. Original from CGDI and Free Update Online for One Year
After 1 Year Free Update, It will cost $200/year for FC200 Update Service
4. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess,kessy ,Dimsport etc.
Check FC200 Support ECU List

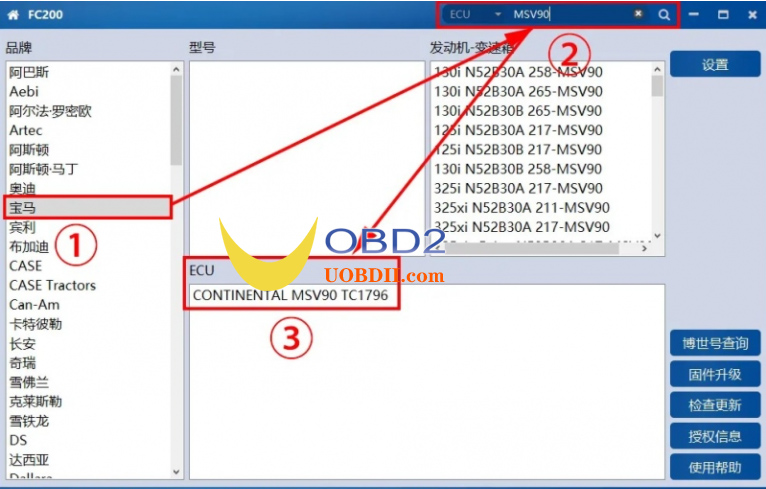

5. Bosch search: Free to find out what ECU type

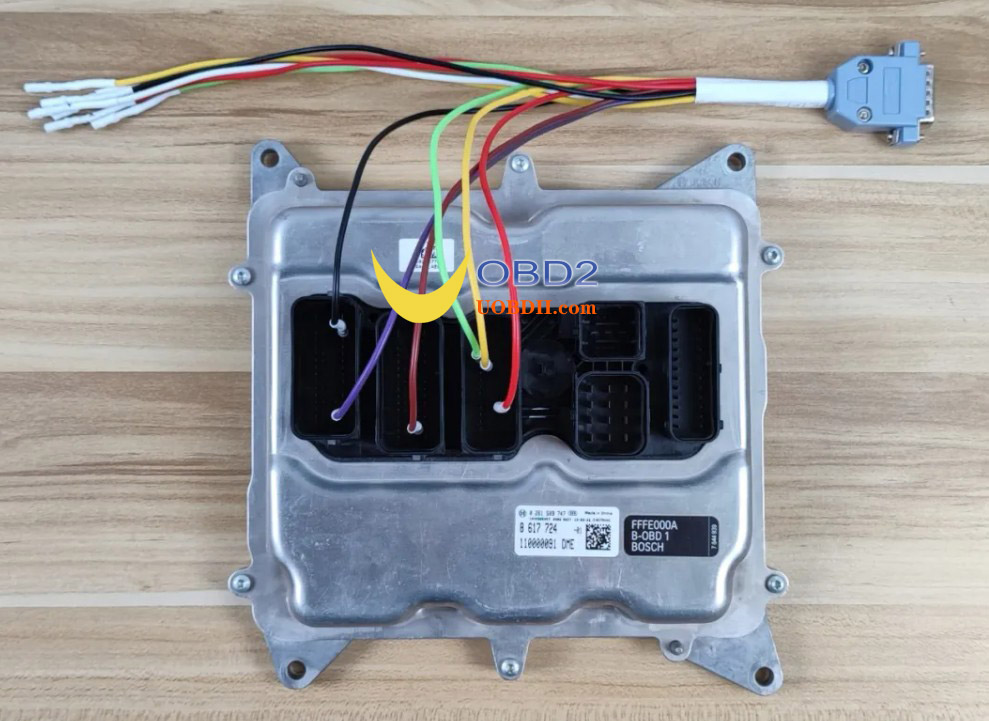

6. With CAN-bus, and No Disassembly (platform mode) and Boot mode
7. Multi-Language: English, French and Simplified Chinese
Spanish, Polish, Turkish and Traditional Chinese need to pay $130.

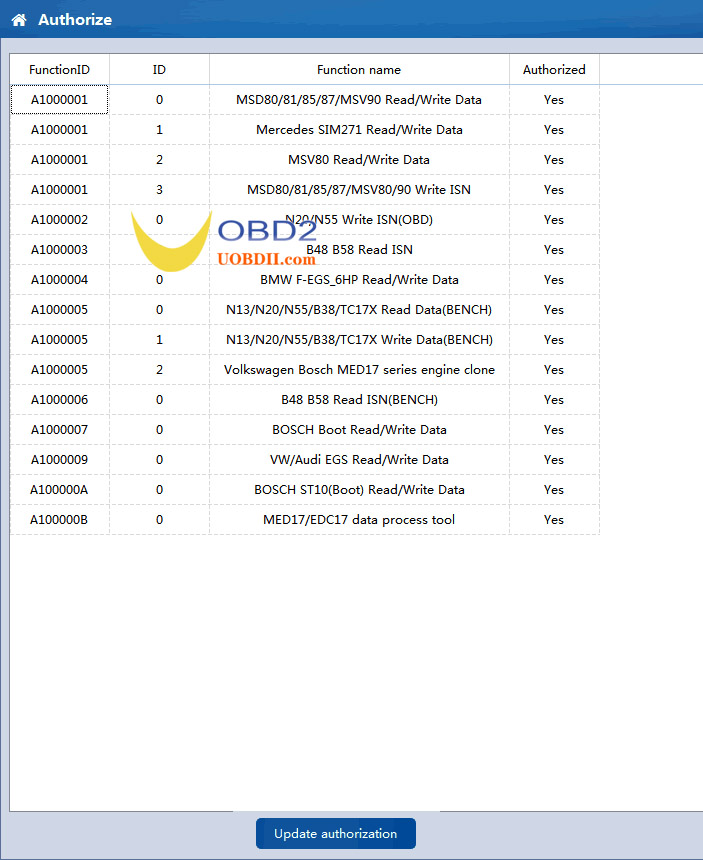

8. Full Version with All License Activated and Free.
Get free Denso ECU read/write function (A1000010) and CHINA DELPHI MTxx read/write function (A100000F)
Please send us FC200 serial number to activate these license to you.
Notice:
FC200 Software Free Download Link, please download here when you get the package.
Here is User Manual for your reference too.
CG FC200 Latest Updae Information:
FC200 V1.2.5.0 Registered Version New (2025.01.06)
New Functions:
1. Added the "Three readiness monitors not ready" function of GM E37E38E39E39AE78E80E83E84 ECU
2. Added MELCO (Mitsubishi) series BENCH mode ECU:
MELCO E6T6xxxx MH8501F
MELCO E6TAxxxx MPC5746R
MELCO E6T85xxx MH8601 test
MELCO E6T8xxxx MH8115 test
MELCO E6T7xxxx MH8611 test
MELCO E6T86xxx MH8115 test
3. Added BOSCH (Bosch) BENCH mode ECUTCU:
MG1CS080 TC275TP test
INVCON2.3 TC1797
HV17.4.1 TC1797
4. Added the "Repair of Lovol engine duration" of data processing to Lovol ECU: EDC17C63, EDC17CV54
5. Added the BOOT mode read and write function for GM E83
6. Added the function of reading and writing DFlash, PFlash, Maps, and ExtEEPROM separately for Mercedes-Benz SIM271DE
7. Added the "Unlock" function of VOLVO MB279700-96xx
8. Added "Read Password" function in Hyundai Kia CPEGP2.10.1 boot mode
9. Bug fixes
Optimized the "Turn off anti-theft" function of EDC17C53, EDC17C63, and EDC17C81

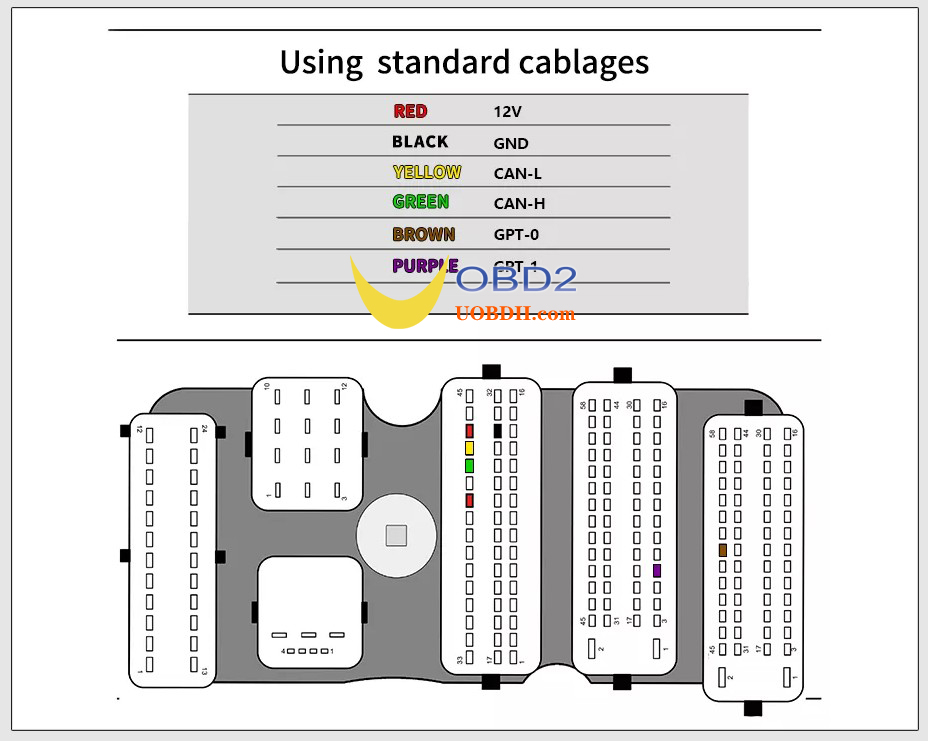

Optimized Porsche SDI10.x ECU wiring diagram
Fixed the problem that Mercedes-Benz CRD3P.C0 and CRD3P.D1 can not be read and written
Fixed the problem that DCM2.5 failed to write PFlash
Fixed the problem that M7 failed to recognize but can read and write
Fixed the problem that VGS2-FDTC failed to recognize after the updated version
Optimized the process of M7.9.7, M7.9.7.1, ME7.9.7, ME7.9.7.1 to handle the "Three readiness monitors not ready" function
Fixed the problem that Honda 37820 SH7058 does not communicate with ECU after writing data
CG FC200 V1.2.4.0 Registered Version New (2024.11.25)
1. Added Paypal payment function in non-simplified Chinese version
2. Added DELPHI BOOT mode ECU:
DCM6.2V MPC5674
DCM6.2A MPC5674
DCM6.2C MPC5674
DCM3.5 MPC5565
DCM6.1 TC1797
3. Added MARELLI BOOT mode ECU:
8TDW MPC5553
8TDF MPC5553 test
8GMF MPC5553 test
8F3 MPC5553 test
8DF MPC5553 test
8GMK SPC564A
8GML SPC564A test
8GSF MPC5565 test
8GMF MPC5565 test
8DF MPC5565 test
8F2 MPC5565 test
8F3 MPC5565 test
8GMW MPC5565 test
8GSW MPC5565 test
8DS MPC5565 test
9GF SPC564A test
9GC SPC564A test
9DF SPC5644 test
9DF_HW2 SPC5644 test
10GF SPC564A test
METATRON_MF4 MPC5674F test
4. New GM TCU: ACDelco T87A SPC564A, BOSCH T93 SPC5888
5. Other new ECUs:
CONTINENTAL SID605 SPC564A test (Boot mode)
BOSCH MED17.7.7 (Boot mode)
BOSCH EDC17CV54 (BENCH/Boot mode)
ACDelco E78 MPC5566 (Boot mode)
6. Other new features:
BOSCH EDC17CV54 adds VIN change function
M7, ME7.8.8 adds unlock function
Adds Volkswagen (WV) MED17.1, MED17.5.5 password reading method
7. Bug fixes
Optimized the main interface ECU search function
Solved the PFlash data encryption problem of M7, ME7.8.8
Fixed the MT86 PFlash reading and writing failure problem
Iveco BOSCH EDC17C69 ECU adds BENCH mode connection diagram
Optimized menus, wiring diagrams and other functions
CG FC200 V1.2.3.0 Registered Version (2024.10.19)
1. Added FC200 device binding function, after binding, you can get the latest news related to the device in time
2. Added DENSO SH72531 type ECU:
Nissan: 23740-5Sxxx_Gen2, 23740-3Nxxx_Gen1
Subaru: Subaru SH72531, 112800 SH72531
3. Added Honda KEIHIN type ECU:
Honda/Acura: KEIHIN 37820-xxx-xxx SH72543, KEIHIN 37820-Rxx-xxx SH7058, KEIHIN PGM FI SH7058
4. Added Volkswagen ECU mileage repair function:
MED17.5.25, ME17.5.22, MED17.1.27
5. Added PFlash checksum function for GM Exx ECU
6. Other newly added ECUs:
BOSCH MG1US008 (BENCH mode)
BOSCH MD1CE100 (BENCH mode)
Hyundai/Kia KEFICO CPEGP3.20.1 (BENCH mode)
Hyundai/Kia KEFICO CPEGP2.10.1 (Boot mode)
Hyundai/Kia CONTINENTAL SIM2K-240R (Boot mode)
GM AcDelco E84 (BENCH/Boot mode)
GM BOSCH ME9.6.1 (BENCH mode)
7. Bug fixes
Fixed the problem that Suzuki BOSCH ME17.9.64 BENCH mode cannot connect
Fixed the problem that GM E39A failed to read EEPROM
Fixed the problem that TATA DCM7.24 failed to checksum
Fixed the problem that TATA MD1CS018 failed to checksum
Fixed the problem that CPEGD2.20.x failed to checksum
Fixed GM E39/E39A checksum issue
Fixed Ford SID208/SID209 password reading failure issue
Fixed DCM6.2AP, GPEC2, etc. data writing failure issue
CG FC200 V1.2.2.0 Registered Version NEW (2024.09.11)
1. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires (Except Boot Mode).
DELPHI ECU:
BYD/BAIC/Chery/Dongfeng/FAW/Geely/GreatWall/JAC/JMC/Lifan/MG/SAIC/Trumpchi:
ChinaDelphi MT20U MC912DT128
ChinaDelphi MT22U MC9S12XET256
ChinaDelphi MT20U2 MC9S12KG256
ChinaDelphi MT22.1 MC9S12XEQ512
ChinaDelphi MT22.1.1 MC9S12XET256
ChinaDelphi MT34 TCxx
ChinaDelphi MT80 TC1766
DELPHI DCM6.2AP MPC5674
DELPHI MT80 TC1766
DELPHI MT80.1 TC1766
DELPHI _DCM7.24_CHINA TC277T
DELPHI _DCM7.1AP_CHINA TC277T
DELPHI DCM3.7AP_CHINA SH72544
Indian AshokLeyland:
DELPHI _DCM7.1AP_AshokLeyland_test TC277T
Chevrolet/Luxgen:
DELPHI MT80 TC1766
DELPHI MT80.1 TC1766
DELPHI DCM3.7AP SH72544
Holden/Opel:
DELPHI DCM3.7AP SH72544
Citroen/DS/Opel/Peugeot/Toyota
DELPHI DCM7.1A TC297TP
DELPHI DCM7.1B TC297TP
Dodge/Freightliner:
DELPHI CRD2.x_ MPC556x
DELPHI CRD3xx TC1797
Hyundai/Kia:
DELPHI MT86 TC1766
DELPHI _DCM7.1AP_Hyundai TC277T
Mahindra/TATA/JCB:
DELPHI _DCM7.24_test TC277T
DELPHI DCM2.7AP SPC5644
DELPHI _DCM7.1AP_TATA TC277T
DELPHI DCM2.5 XC2080M
Benz:
DELPHI CRD2.x_ MPC556x
DELPHI CRD3xx TC1797
DELPHI CRD3xx TC1793
DELPHI CRD3.E1 TC1793
DELPHI CRD3.F1 TC1793
DELPHI CRD3E.1 TC1793
DELPHI CRD3P.B0 TC1793
DELPHI CRD3P.C0 TC1793
DELPHI CRD3P.D1 TC1793
DELPHI CRD3P.G0 TC1793
DELPHI CRD3 TC1797
DELPHI CRD3.7 TC1797
DELPHI CRD3.10 TC1797
2. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires -- DENSO ECU:
Isuzu/Hino:
DENSO 275700_7082 SH72546(Test)
Mitsubishi:
DENSO MITSUBISHI_L200 SH72543(Test)
DENSO 4D56 SH7059(Test)
DENSO RA6 SH7059(Test)
DENSO 4N14 SH7059(Test)
Fiat:
DENSO RA6 SH7059(Test)
Nissan:
DENSO D3 SH7059(Test)
DENSO D4B SH7059(Test)
DENSO D40 SH7059(Test)
DENSO 3W SH7059(Test)
DENSO 23740_5Sxxx_Gen2 SH72530(Test)
DENSO G1 SH7059(Test)
DENSO 1G SH7059(Test)
DENSO H1 SH7059(Test)
DENSO Pxxx SH72543
Opel/Vauxhall:
DENSO 275xxx-xxx SH7059(Test)
DENSO GM SH7055(Test)
Subaru:
DENSO KH SH7059(Test)
DENSO KS SH7059(Test)
DENSO ZY SH7059(Test)
DENSO BF SH7059(Test)
DENSO GG SH7059(Test)
DENSO NN SH7059(Test)
DENSO KO SH7059(Test)
DENSO MB112700 SH72543(Test)
DENSO Subaru SH72543(Test)
FAW:
DENSO TD112700-xxxx SH72530
Hyundai/Kia:
DENSO 33910-05005 SH72530
Mazda:
DENSO R2xx SH7058
DENSO RF7x SH7058
DENSO RF8x SH7058
DENSO Pxxx SH72543
DENSO S5xx SH72546
DENSO SHxx SH72543
Scion:
DENSO Pxxx SH72543
Suzuki:
DENSO 33920-67P0 SH72530
DENSO 33920-xxxx_1N83 MPC5746
Toyota:
DENSO GEN3 R7F701216
DENSO GEN3 R7F701202
DENSO Pxxx SH72543
Volvo
DENSO MB279700-9500 SH72543
DENSO MB279700-96xx SH72546
DENSO MB279700-9811 SH72546
DENSO MB279700-9801 SH72546
Others
BOSCH MED9.6.1 MPC561/2
CONTINENTAL SIM2K_241_ECU TC1767
BOSCH Hongqi_H9_48V_Battery TC1724
KEFICO CPEBI2.20.2 TC1782
4. MSV80 Added a new button to read password
5. GM Exx/6T/L ECU/TCU of vehicle models optimized connection identification function
6. Fixed the issue of GM E80 connection failure
7. CONTINENTAL SID208, SID209 Added the function of reading password
CG FC200 V1.2.1.0 Registered Version (2024.06.25)
1. Added China DELPHI ECU, supporting OBD and BENCH modes:
MT20U MC912DT128
MT22U MC9S12XET256
MT20U2 MC9S12KG256
MT22.1 MC9S12XEQ512
MT22.1.1 MC9S12XET256
2. Added DELPHI ECU:
BENCH mode:
China DCM7.24
China DCM7.1AP
Hyundai/Kia DCM7.1AP
Tata DCM2.5
BOOT mode:
DCM2.7AP
3. Added DENSO ECU:
Toyota:
GEN3 R7F701202
GEN3 R7F701216
Mazda:
Pxxx SH72543
S5xx SH72546
SHxx SH72543
Suzuki:
33920-xxxx_1N83 MPC5746
4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU
CG FC200 V1.2.0.0 Registered Version NEW (2024.05.11)
1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)
2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs
3.MED17_China adds a new password reading function
4. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot:
ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33
5. Added Renesas chip ECU:
Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544
FAW: DENSO TD112700-xxxx SH72530
Hyundai: DENSO 33910-05005 adds the function of reading DFlash
6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B
CG FC200 V1.1.9.0 Registered Version (2024.03.23)
1. Add BOSCH ST10 ECU and add verification function:
Abarth: ME7.9.10
Alfa Romeo: ME7.9.10, MED7.1.1
Audi: ME7.5.30, ME7.5, MED7.5.10
Bentley: ME7.1.1
BMW: ME7.2
Chery: ME7.9.7, M7.9.7, ME7.9.71
Chrysler: ME2.8.1
Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P
Ferrari: ME7.1.1
Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P
Geely: M7.9.7
Honda: ME7.9.7, ME7.9.3
Hyundai Kia: M7.9.7, ME7.9
Lancia: MED7.6.2, MED7.1.1, ME7.9.10
Maserati: ME7.1.1
Mercedes: ME2.8, ME2.8.1
Mitsubishi: ME7.7.1
Opel: ME7.6.4
Polaris: M7.9.7
Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8
SAIC: ME7.8.8
Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5
Toyota: ME7.9.5
Volvo: ME7.0, ME7.0.1
2. Added DENSO ECU:
Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x
Hyundai/Kia: DENSO 33910-05005
Suzuki: DENSO 33920-67P0
3. Other new ECUs:
Chevrolet/Holden/Opel: DELPHI DCM3.7AP
Suzuki: ME17.9.64
Ford: MG1CS017
4. A new button for "Vehicle Fault Code Support List" is added to the main interface.
BUG FIXED:
1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs
2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.
3. Fixed the problem of failure to modify VIN in new versions of Mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.
V1.1.8.0 Registered Version (2024.02.01)
1. Added Hyundai/Kia TCU: TC60.x.x
2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system
3. GM E80 adds BOOT mode
4. BMW's new ECUs: MEVD17.8.4, ME17.2.42
5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode
6. EDC17C84 adds the function of modifying VIN
BUG FIXED:
1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.
2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure
3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox
4. Fix GPEC2A and other unrecognized problems
5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.
6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram
7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram
8. Volkswagen MED17.5 platform mode supplements other wiring diagrams
9. IVECO EDC17C69 supplementary wiring diagram
FC200 V1.1.7.0 Registered Version (2023.11.24)
1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811
2.Add Audi ECU: Simos8.4x, Simos12.x
3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU
4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc
5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc
6.Lovol added ECU: EDC17CV43
7.BMW adds ECU: MEVD17.8.4
8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4
9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x
10.Optimize the PFlash verification algorithm for DQ380
11.Fix some bugs and optimize software performance
FC200 V1.1.6.0 Registered Version (2023.10.16)
1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;
2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;
3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;
4.Added new GM type engine computer: E98;
5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;
6.Added PFlash verification function for CONTINENTAL TC17 engine computer;
7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;
8.Fix some BUGs and optimize software performance.
FC200 V1.1.5.0 (2023.08.18)
1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)
EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1
2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX
3.KEFICO TC series engines add PFlash verification function
4.GM series engines add PFlash verification function
5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)
6.Optimize the verification algorithm for VGS2-FDCT type transmissions
7.Fix some MD1CS089 engine connection failure issues
8.Fix some bugs and optimize software performance
FC200 V1.1.4.0 Registered Version NEW (2023.07.17)
1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x
2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1
3.BOSCH MPC5xx chip ECU adds verification function
4.New platform mode engine: MD1CS089
5.New Volkswagen transmission mileage repair function: DQ200 TC1784
6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines
7.Fix some PCR2.1 write PFlash failure issues
V1.1.3.0 Registered Version New (2023.05.24)
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions
CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes
CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1.Setup interface adds-Server Selection function
2.Optimize the device activation interface (add the "Activate" prompt)
3.Repair the failure problem of the Bosch query abroad
4.Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5.New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6.New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7.New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8.New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9.Newly modified VIN model: MED 17.8.3
CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance
FC200 ECU Programmer Powerful Functions:
1. Original parts Protection
FC200 supports OBD and platform mode for more than 98% ecu and egs, no need to open shell, no punch, protect origianal parts of the vehicle.
2. Smart Identification
The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.
If ECU module is not damaged and can be communicated, wiring is correct and identification is successful, can read chip and firmware information.
3. Module Clone
Supports ECU/EGS reading& writing and modules clone, synchronization matching free, no need online programming.
Flash data by area, automatically check, protect chips and modules furthest
4. ISN Reading and Writing
Supports all BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.
5. VIN Writing
Solve the problem of double VIN or VIN mismatch of vehicles, convenient for vehicle maintenance.
6. Data Processing
Support data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs
Turn off anti-theft system for Bosch MED/EDC17 series ECU
TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
FC200 ECU Programmer Software Display:

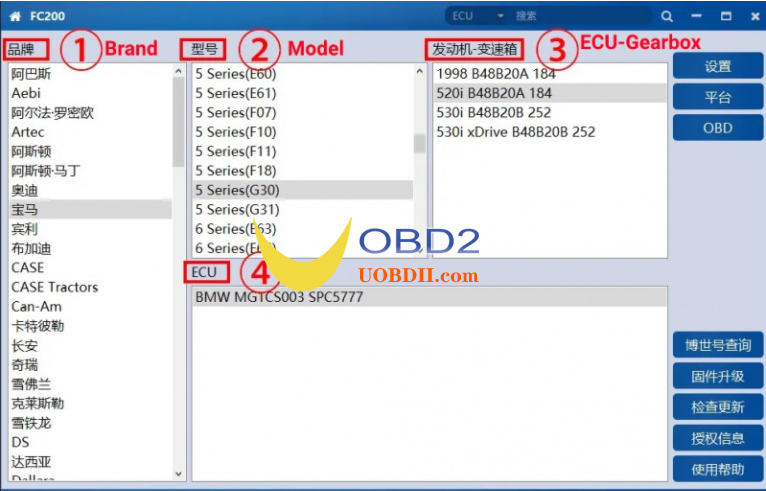

1. Interactivate Software Interface
brand-model-engine/gearbox-ECU interface structure to help users save time and find the operating directory accurately.
2. Built-in Model Search Function
Support ECU model and Bosch search by number, avoid the trouble of level selection, and enter the function interface as quickly as possible.
3. ECU Search
Take the BMW MSV90 ECU as an example, First select "BMW", selct "ECU" as the search condition, enter "MSV90",click the search button, and the ECU type will show up.
Same search procedure for Bosch ECUs.

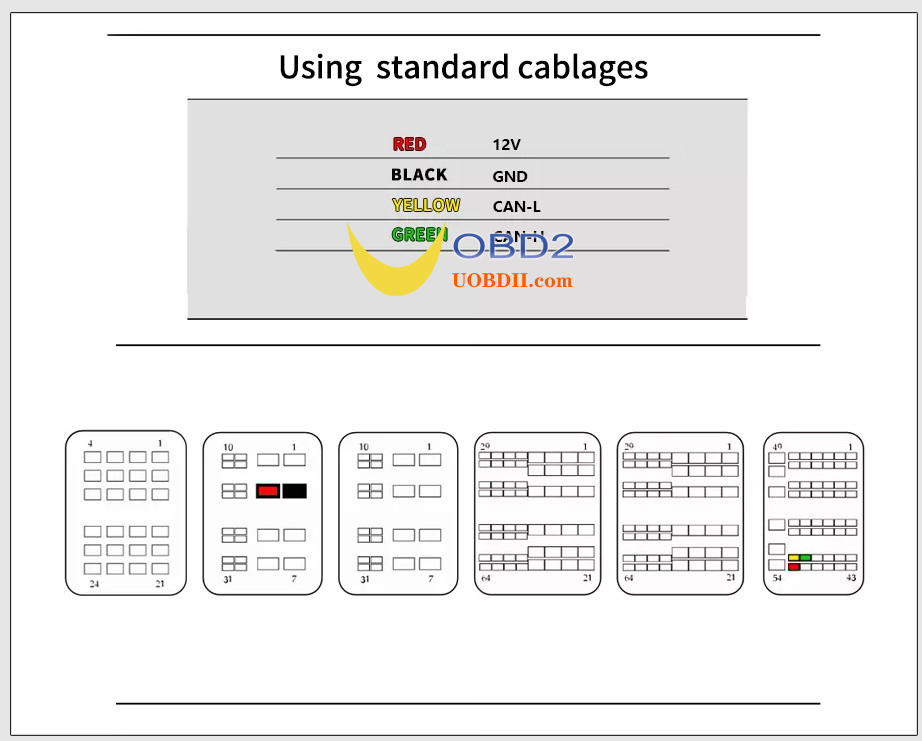

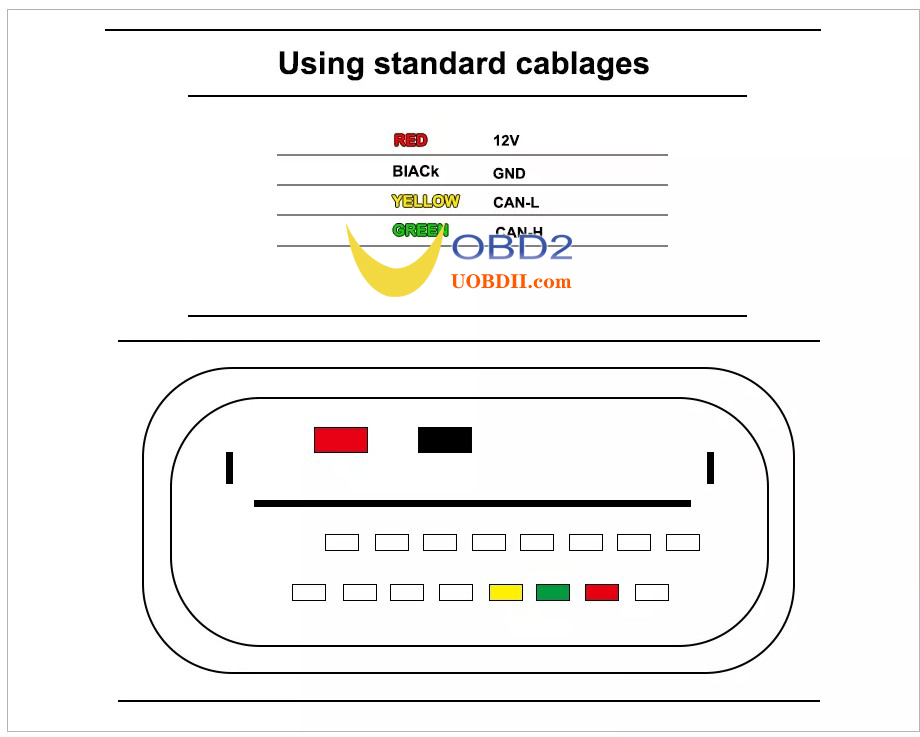

4. Visualized Wiring Diagram
1:1 simulation, bright colors, to avoid wiring errors.
FC200 ECU Programmer Hardware:

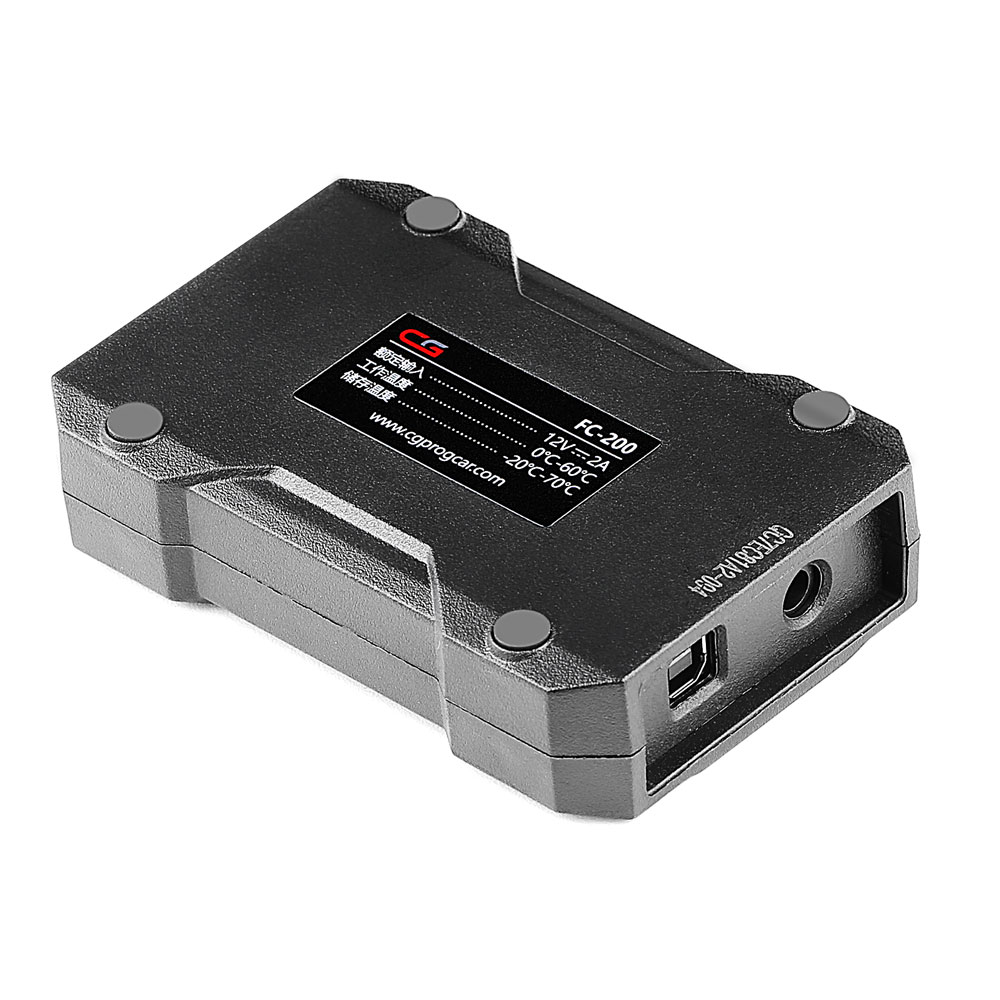

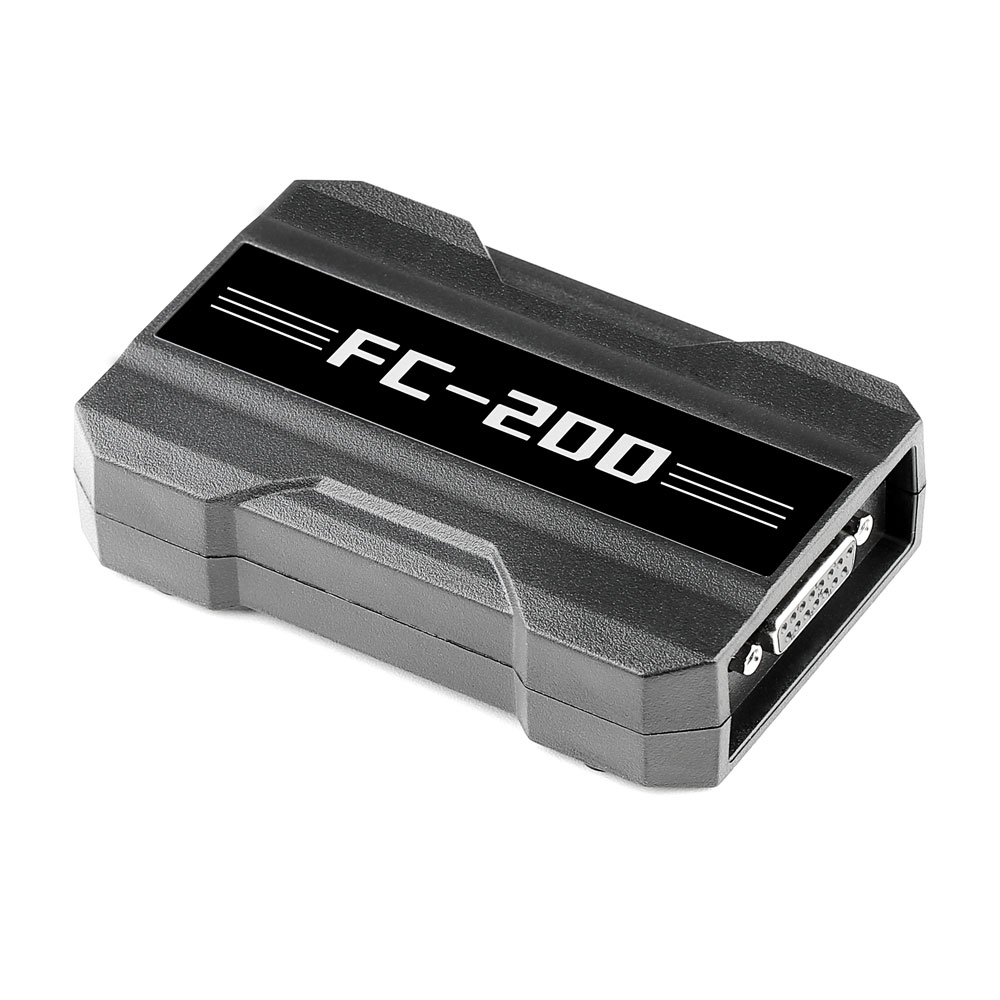

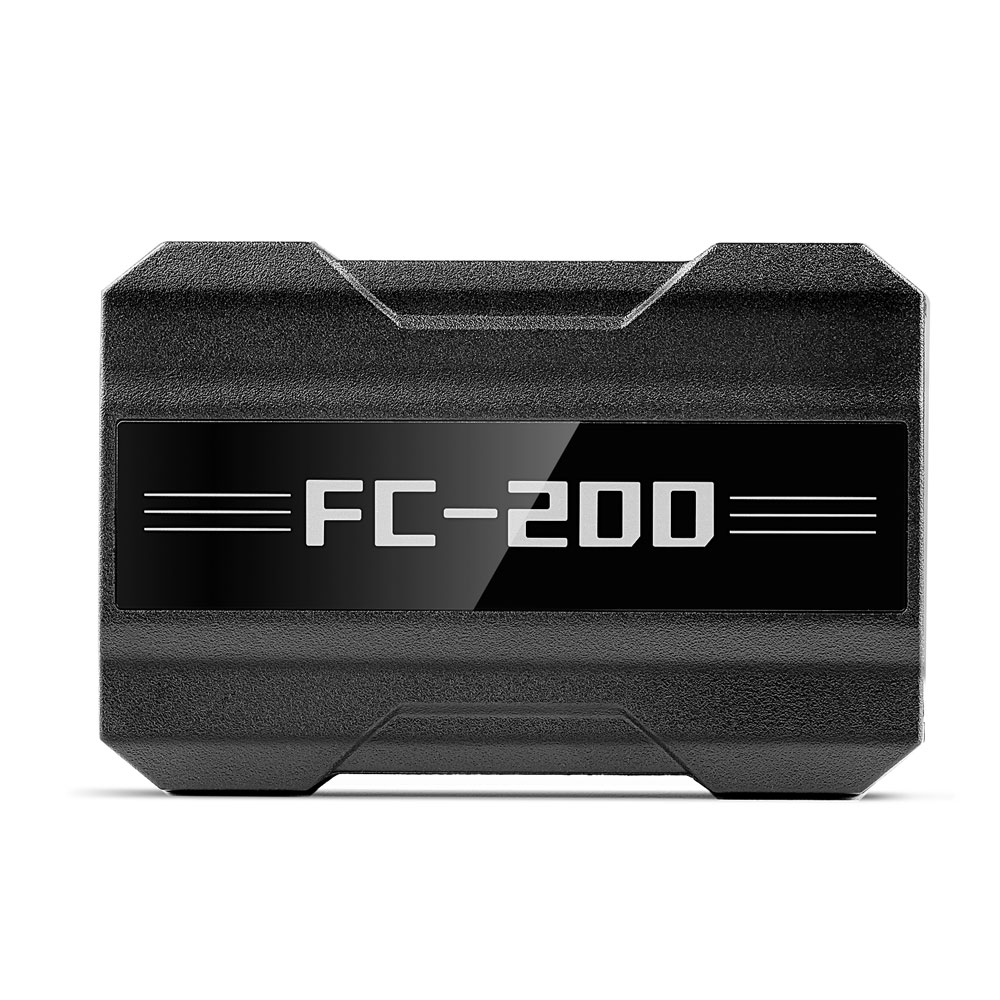

FC200 Main Unit
1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification

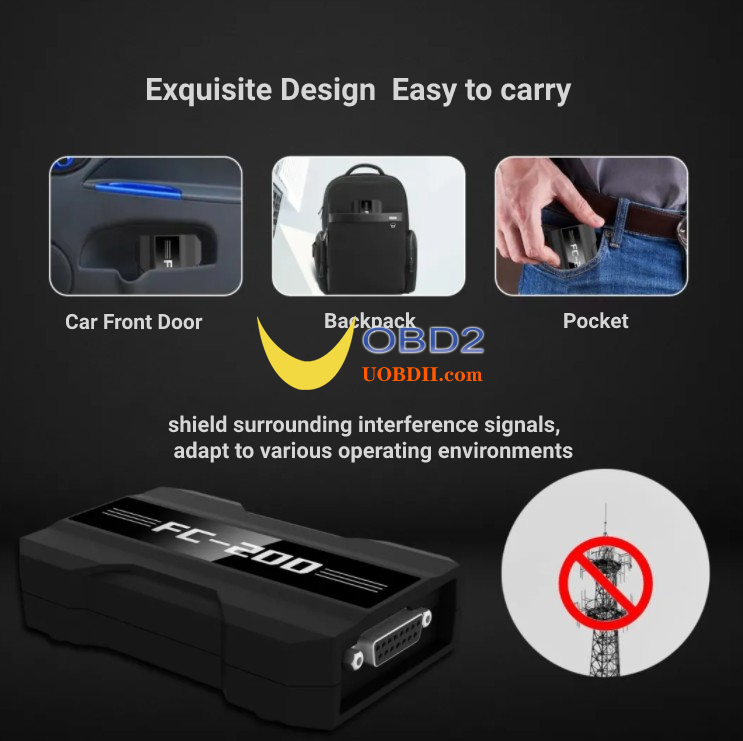

2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments

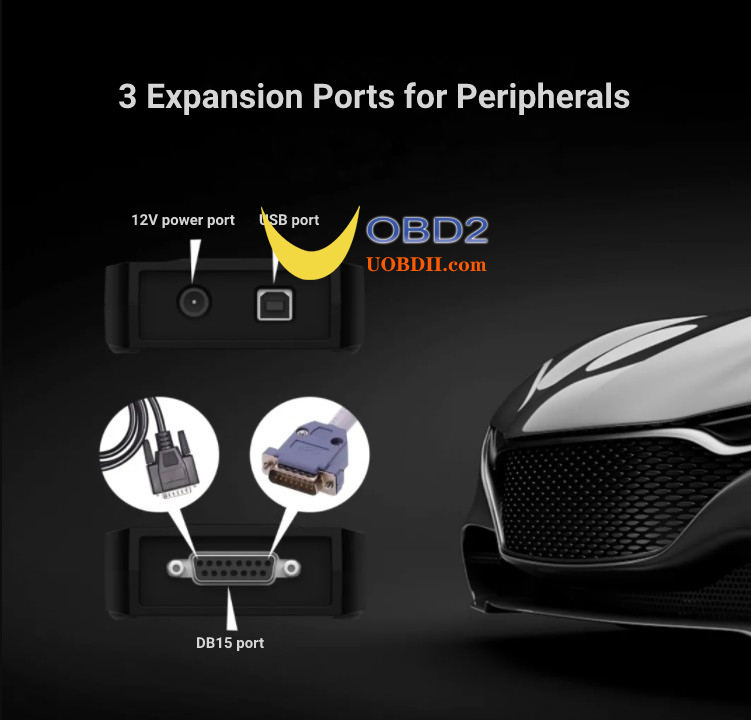

3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.

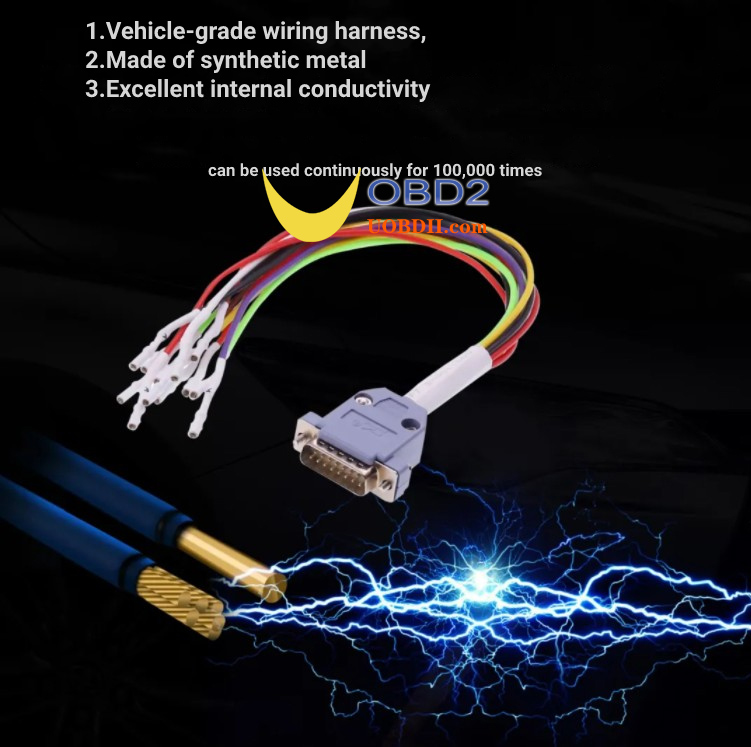

FC200 Adapters
1.Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continously for 10,0000 times.
2. Tight design, seemless connection between ECU and host to ensure continuours communication and excort your operation

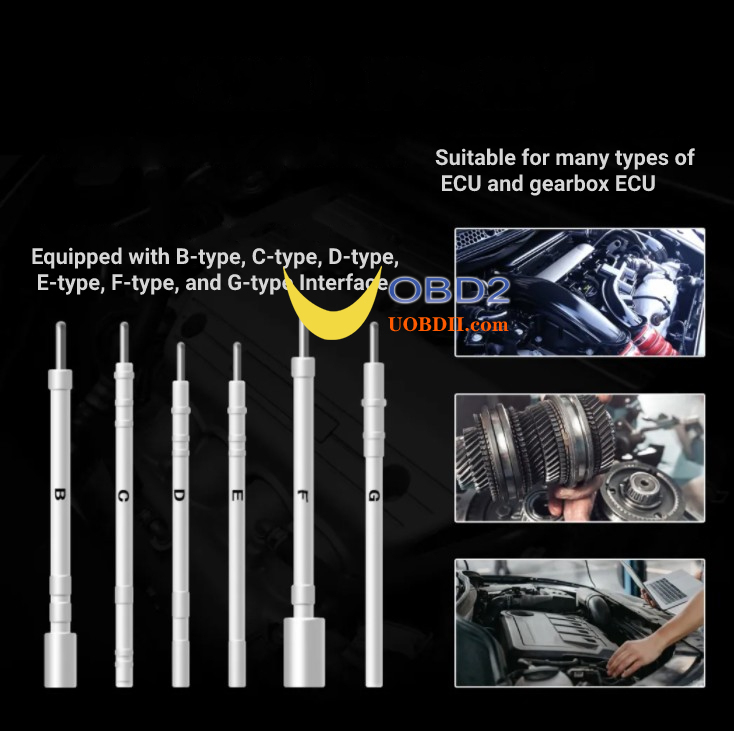

3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS

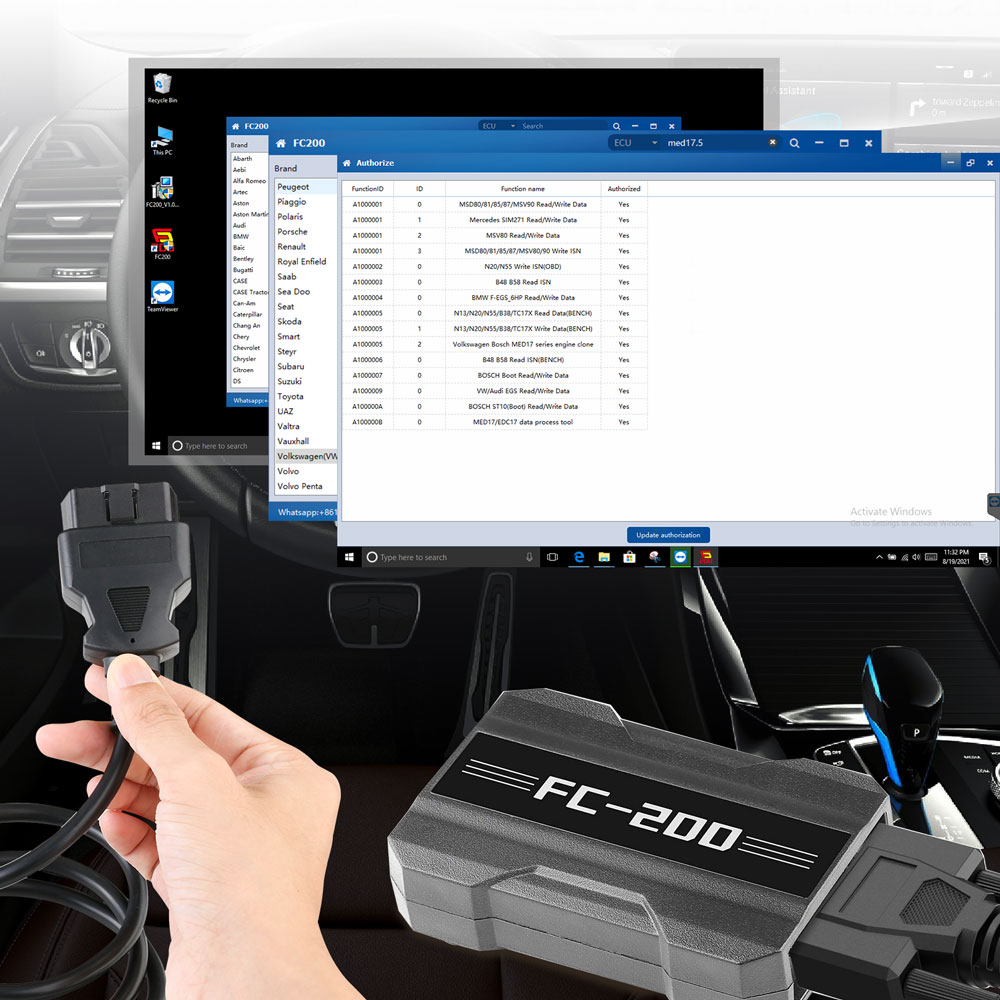

OBD2 Cable
FC200 obd2 cable mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.
110cm, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable

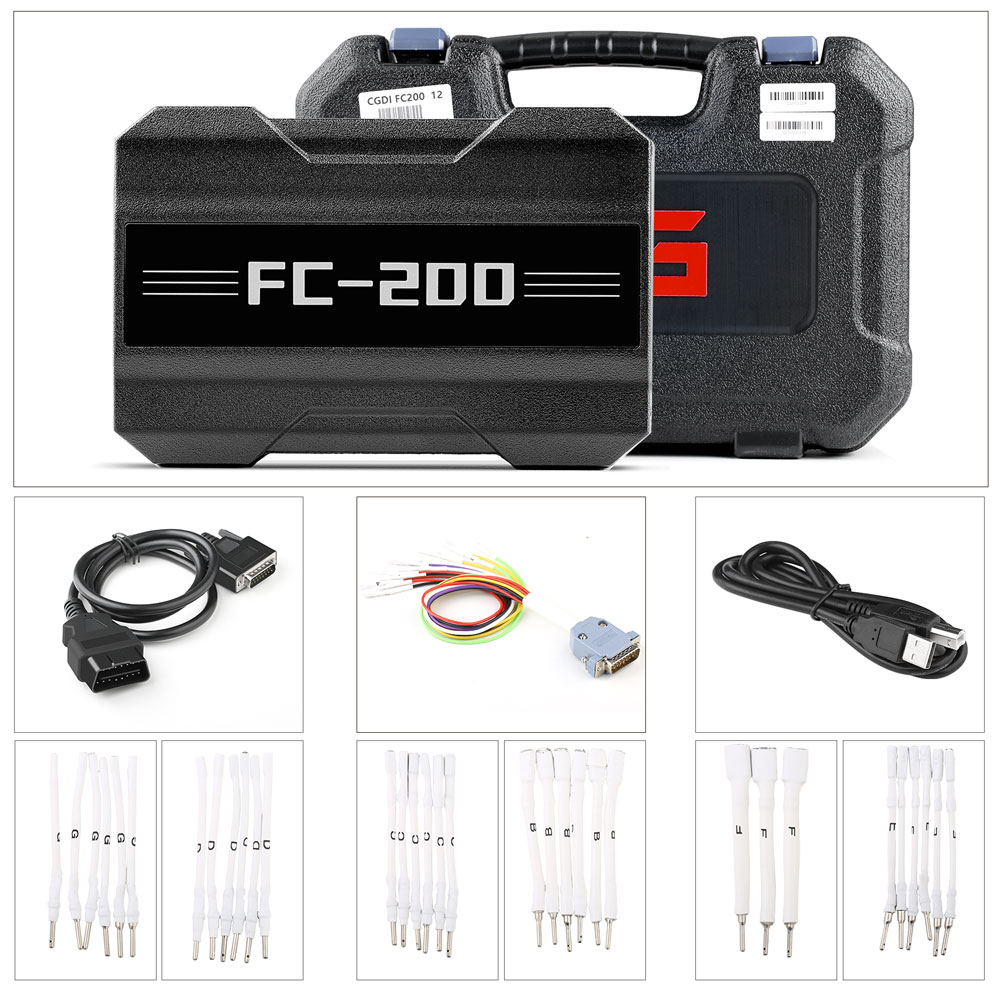

CG FC-200 Package:
1pc x CGDI FC200 Host
1pc x OBD Cable
1pc x Jumper
1pc x USB Cable
6pcs x G-type Adapter Cable
3pcs x F-type Adapter Cable
6pcs x E-type Adapter Cable
6pcs x D-type Adapter Cable
6pcs x C-type Adapter Cable
6pcs x B-type Adapter Cable
-3%
-22%
-3%
-21%
Сумма заказа превышает 8000 ₽
Не стесняйтесь обращаться к нам
Вы можете вернуться через 30 дней
Мы обеспечиваем безопасную оплату
