Autel MaxiIM IM608 PRO All-In-One Key Programmer Full Version Plus IMKPA Accessories Get Free G-Box2 and APB112

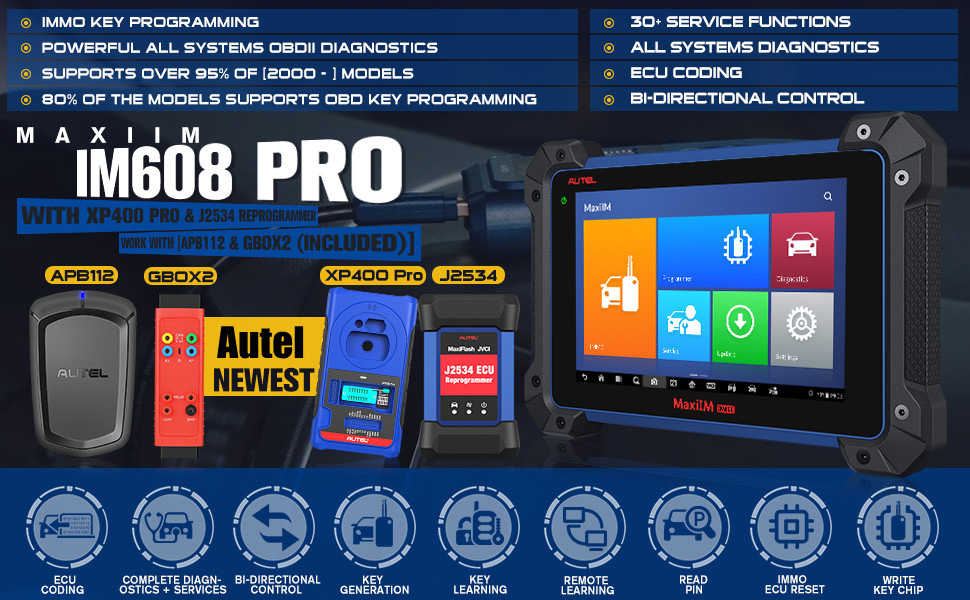

The IM608PROKPA is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit. The IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. The IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.
Highlights:
1. Big Promotion: Get 2 Years Free Update Online. After 2 Years, please check Autel MaxiIM IM608/IM608Pro One Year Update Service
2. Package Contains IM608 Pro, IMKPA Accessories, G-Box2 and APB112
3. Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc
4. Smart Mode and Expert Mode Solution In One Tool to Easy Operation
5. Comes with XP400 Pro Which Adds More Functionality for BMW, Mercedes-Benz, as well as EEPROM reading
6. Used with IMKPA Accessories Which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read/write/erase
Why You Need IM608 Pro with IMKPA?
1. Powerful IMMO Functions / Advanced Programming Functions
2. Autel MaxiIM IM608PROKPA make your work simple and easier, Best Choice for Locksmith and Workshop
3. With the upgraded key programmer XP400 Pro, the MaxiIM IM608 Pro is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet.
4. The MaxiIM IM608 Pro features an automated and guided Smart Mode to help technicians perform key learning effortlessly, and an Expert Mode to provide experienced technicians with quick access to desired functions.
5. The MaxiIM IM608 Pro supports all the functions of the previous MaxiIM IM608 with more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key.
Features:
10.1" 1024 x 768 LCD capacitive touchscreen
Internal reliable 64GB Memory
Android Operating System for fast boot-up and multitasking
Powerful combination of key programming/all system diagnostics/advanced maintenance services
Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all key lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transpronder read/write, EEPROM/MCU read/write
Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
Functions Supported:
1. IMMO Functions
* READ PIN/CS (ALL KEY LOST)
KEY GENERATION & LEARNING
* IMMO ECU RESET/ADAPTATION
IMMO ECU REFRESH/CODING
* BACKUP/RESTORE IMMO DATA
BMW FEM/BDC KEY LEARNING & ECU ADAPTATION
* VW/AUDI/SKODA/SEAT IMMO III/IV/V
ADD KEY, ALL KEY LOST
* BENZ 3RD GENERATION IMMO ADD KEY,
* ALL KEY LOST, KEY LEARNING
BMW FEM/BDC KEY LEARNING & ECU ADAPTATION
* BMW CAS4/3/2 KEY LEARNING
VW/AUDI MQB (VDD & JCI) ADD KEY, IMMO V
A4/A5/Q5 2015+ KEY LEARNING
* VW/AUDI/SKODA/SEAT IMMO III/IV/V
* ADD KEY, ALL KEY LOST
2. Key Programming
* KEY READ/WRITE
EEPROM READ/WRITE
* MCU READ/WRITE (ADVANCED)
ECU, IC CARD & MC9S12 ENCRYPTION CHIP READ/WRITE
* MERCEDES INFRARED KEY READ/WRITE
REMOTE FREQUENCY DETECT
* SUPPORT PC

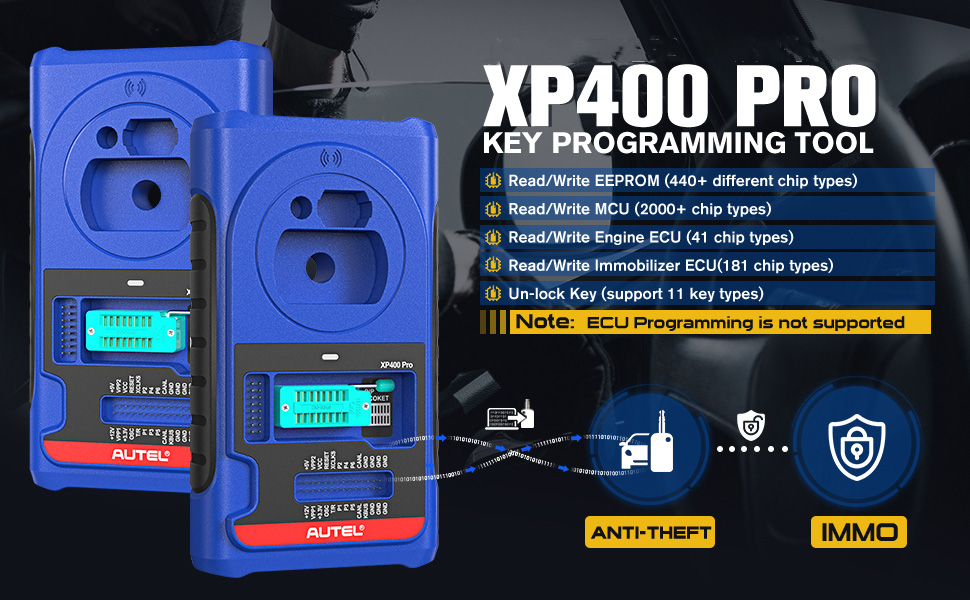

XP400Pro Adds Support for Following Chips:
EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

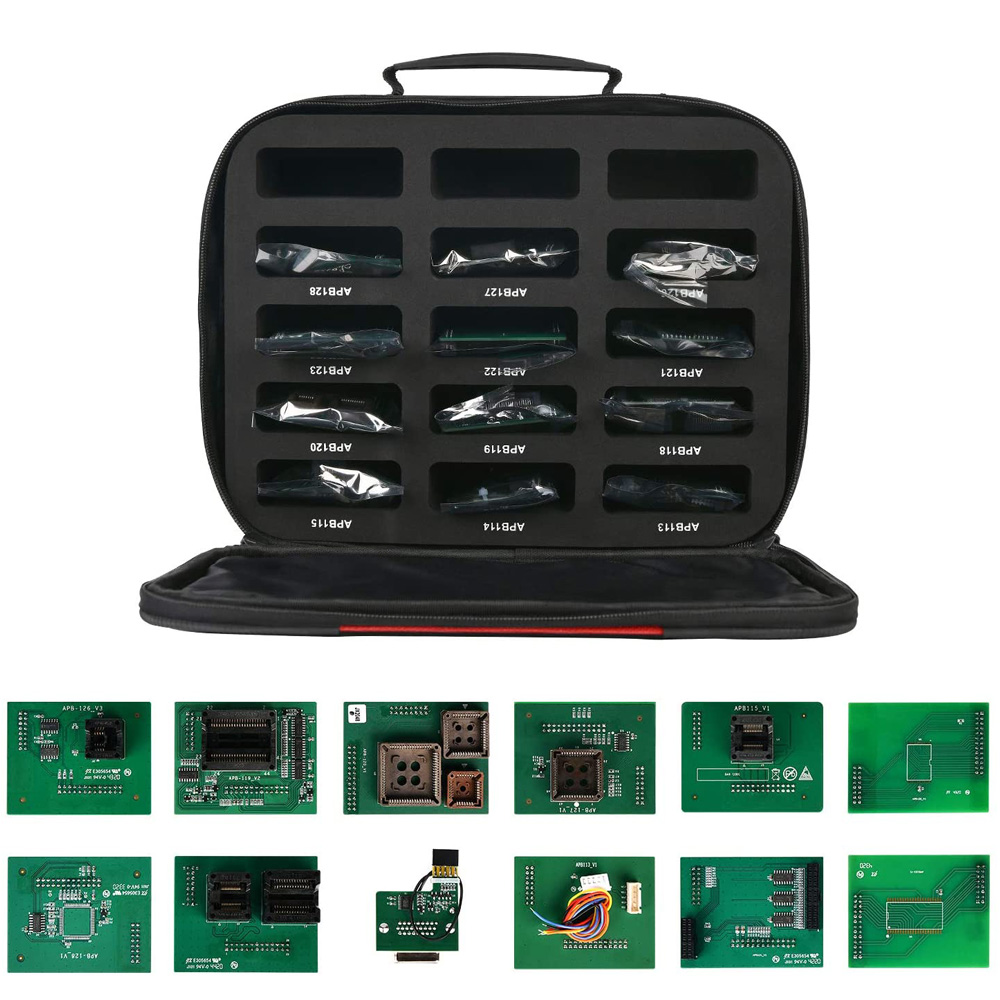

XP400 Pro Adds Support for Following Adaptor Board:
APB113 PCF79XXadaptor board
APB114 EWS3 adaptor board
APB115 NEC Adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXXadaptor board
APB120 TMS370adaptor board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board
The IMKPA accessories kit works with the XP400Pro and supports the following functions:
Currently supports over 10 key unlock types
BMW EWS3 key learning
Benz NEC key learning
Benz ESL_W209 read/ write/ erase

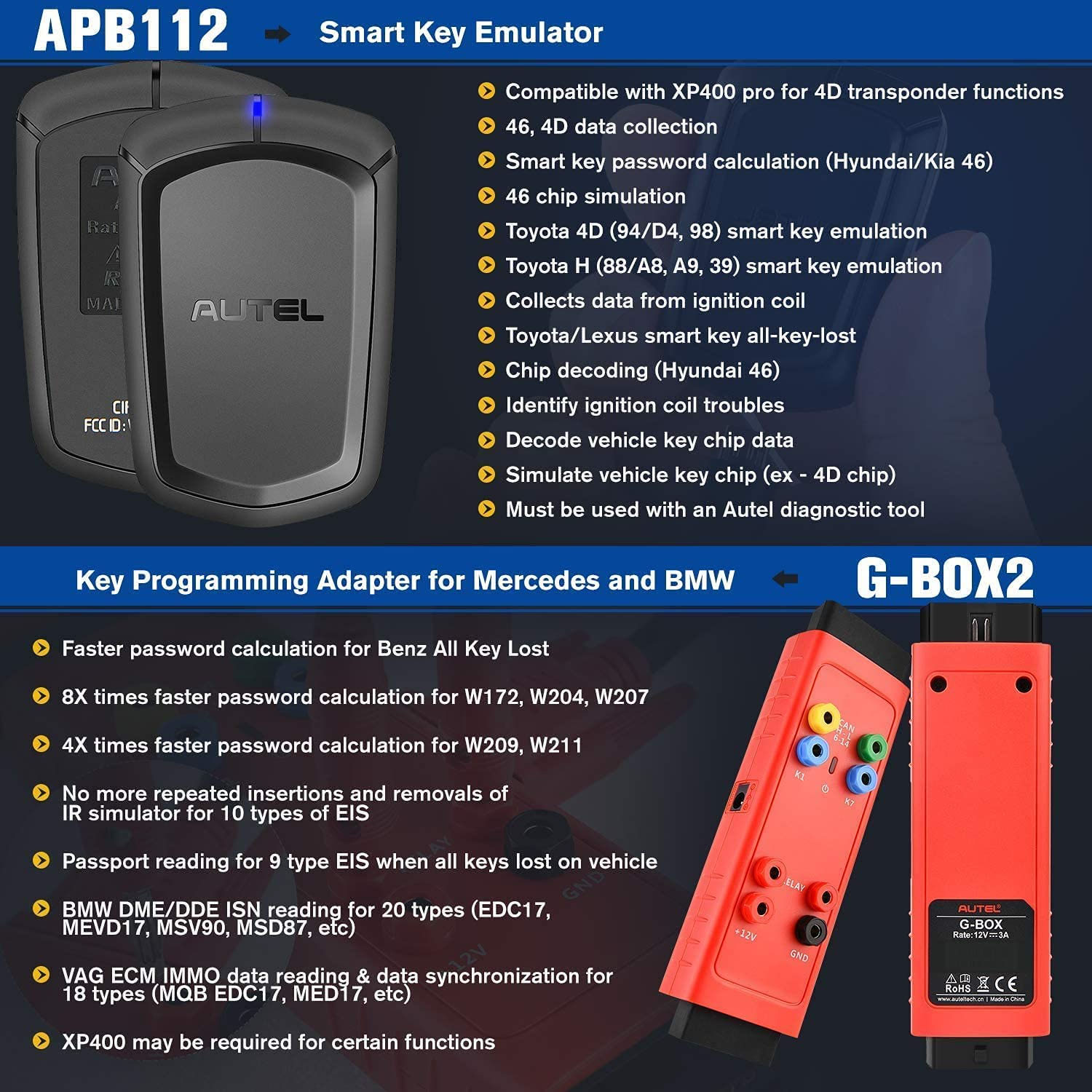

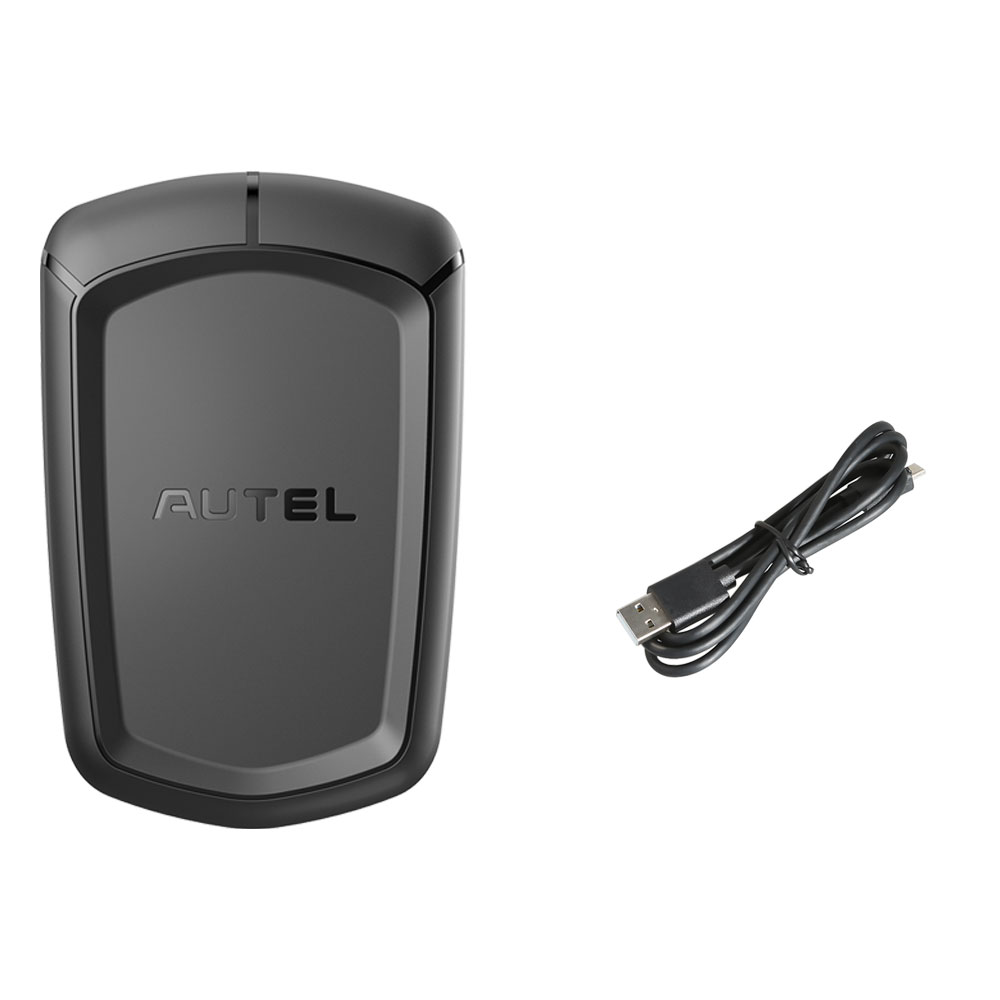

What Autel APB112 Can Do for You?
1. Smart key simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. Toyota 4D (94/ D4, 98) smart key simulation
9. Toyota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. Toyota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)

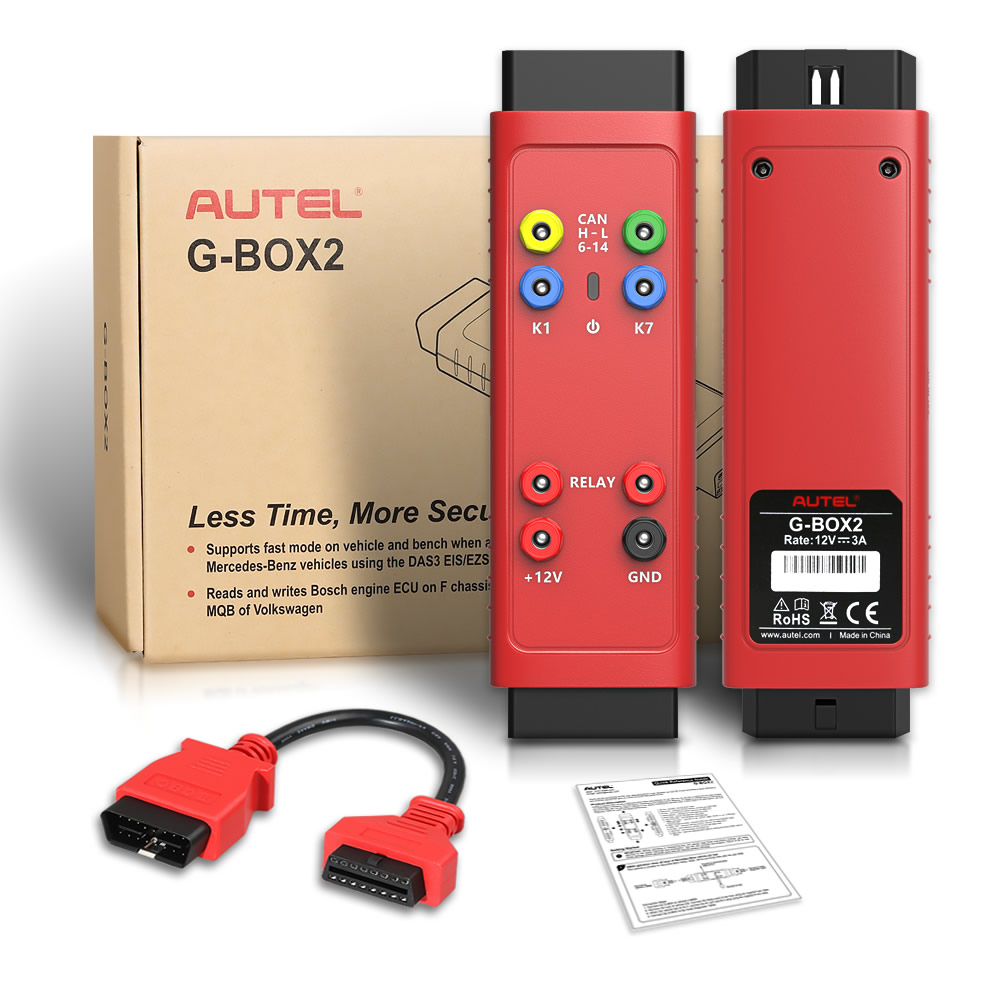

What Can G-BOX2 Can Do For You?
1. Supports Mercedes Benz All Key Lost, faster calculate password
2. Supports IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 Models
Autel MaxiCOM IM608 vs IM608 Pro (IM608+XP400 Pro)
| IMMO Functions |
IM608Pro (IM608+XP400Pro) |
IM608 (with XP400) |
| Upgraded from XP400,No Burnout Anymore |
√ |
/ |

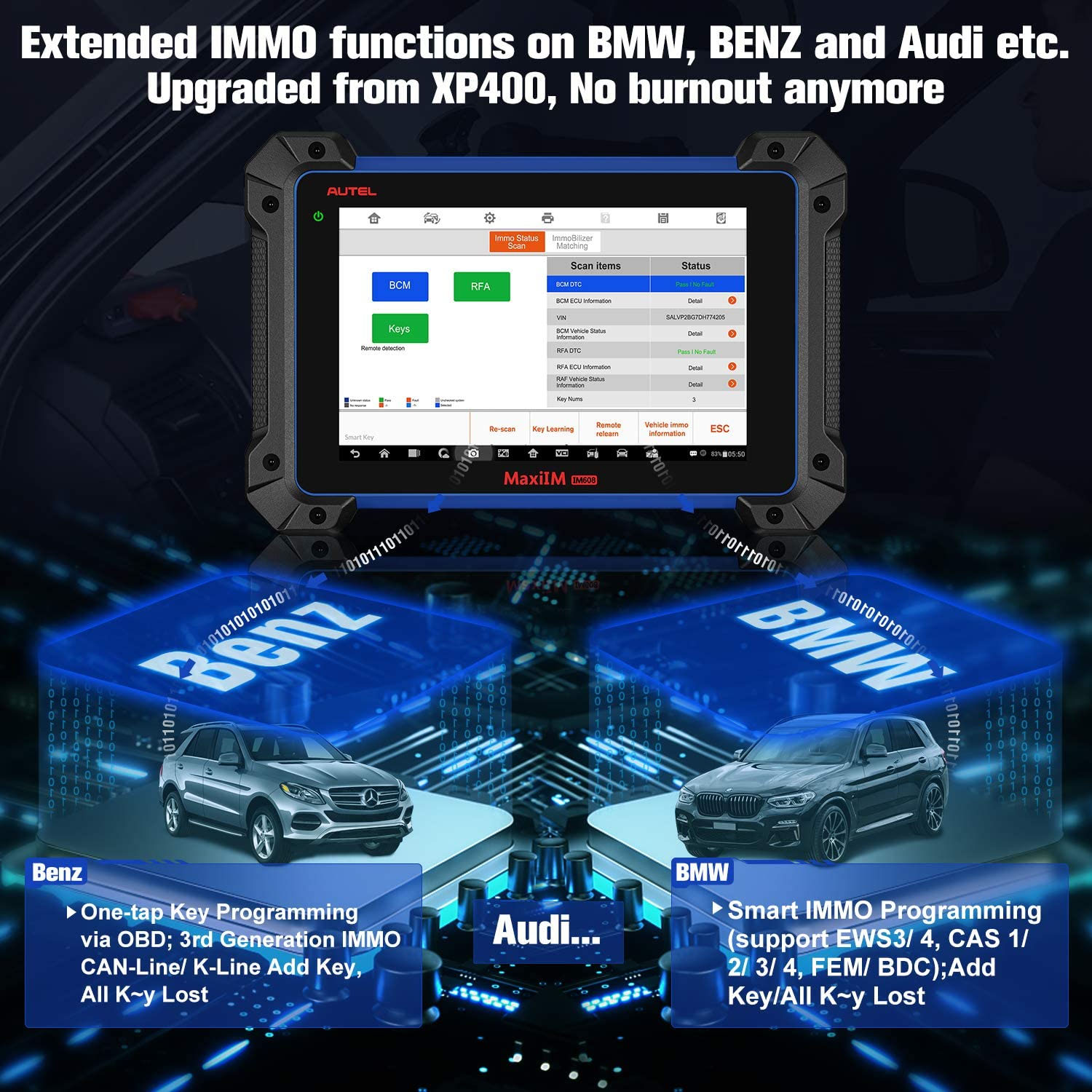

| Extended IMMO Functions on BMW, Benz and Audi etc |
√ |
/ |
| Read/ Write EEPROM |
445 Different Chip types newly added support of AM29FXXX Series, MB29FXXX Series |
330 Chip Type |
| Read/ Write Engine ECU |
41 Chip Types added write support for SIMTEC76 (AM29F800BB)_WRITE |
40 Chip Type |
| Read/ Write MCU |
2067 Chip Types |
1541 Chip Types |
| Read/ Write Immobilizer ECU |
181 Chip Types |
168 Chip Types |
| Read/ Write Odometer |
171 Types |
9 types |
| Read/ Write Airbag |
5 types |
5 types |
| Frequency Detection |
315/ 433/ 868 MHZ |
315/ 433/ 868 MHZ |
| Read/ Write Key |
Support |
Support |
| Unlock Key |
Support 11 key types (Audi/ BMW) |
N/A |
| Wrtie Key via Dump |
4 Vehicle Makes |
4 Vehicle Makes |

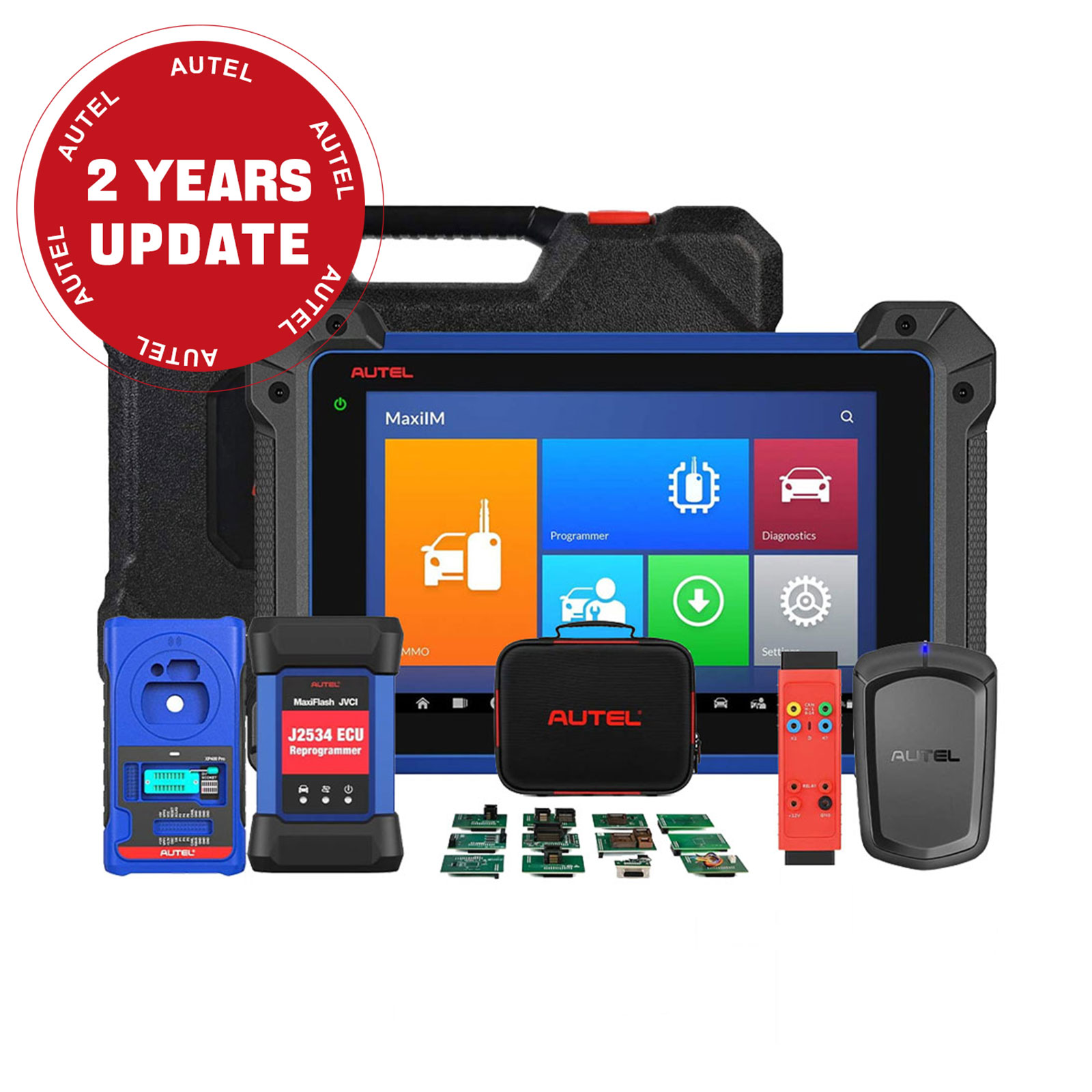

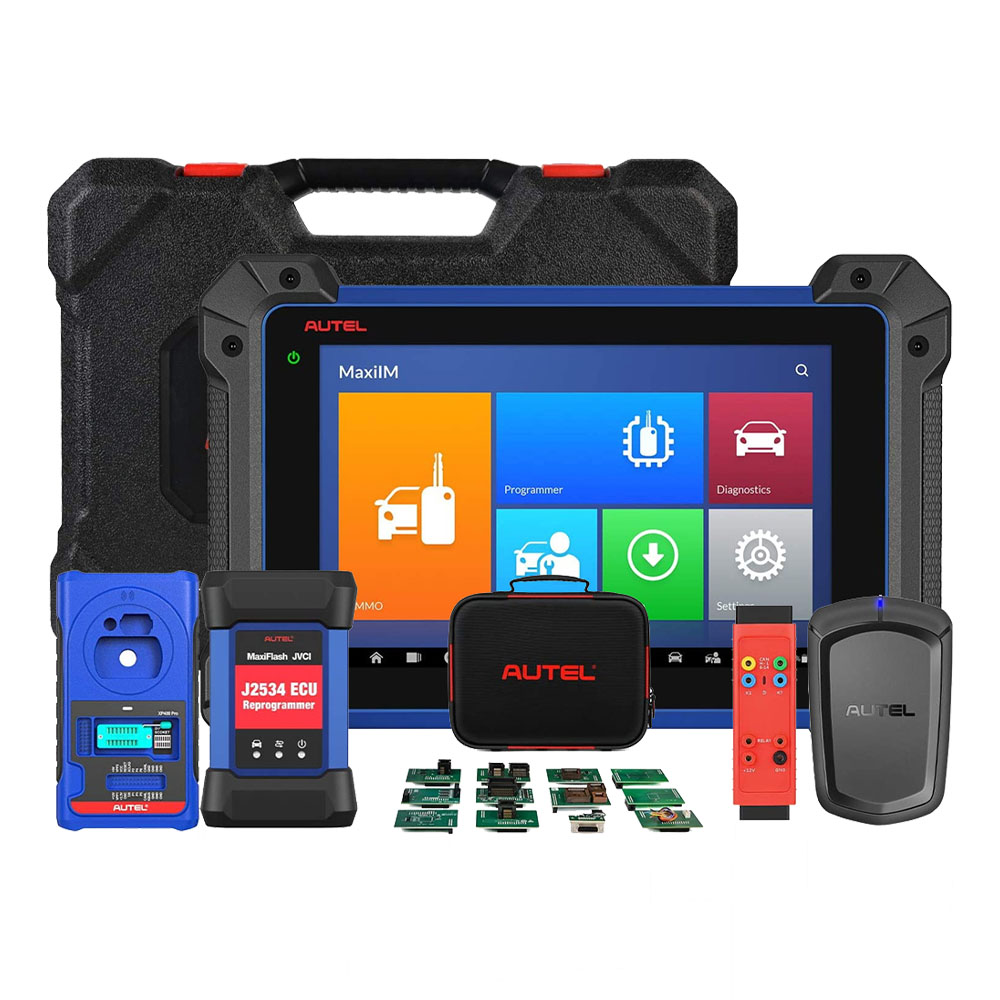

Package List

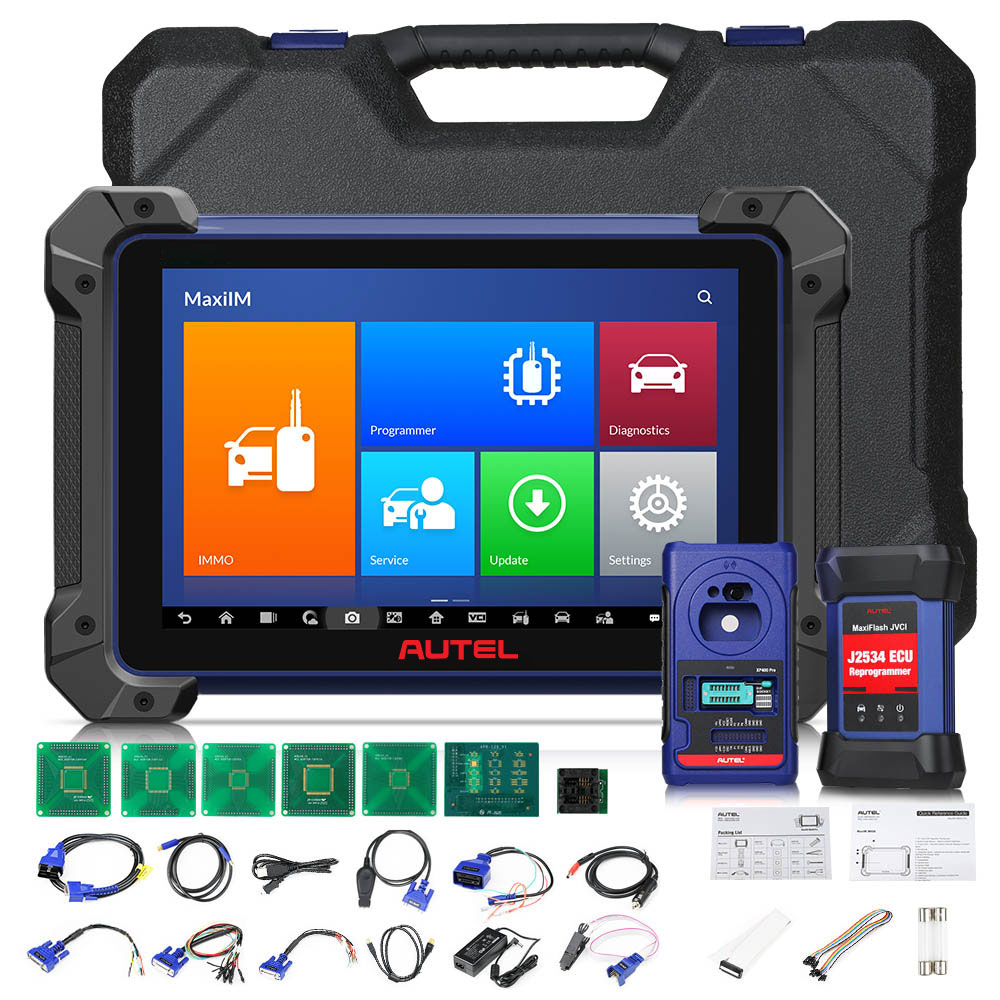

1set x Autel IM608Pro with XP400 Pro
1set x IMKPA Accessories
1set x Autel G-Box2
1set x Autel APB112
