Autel MaxiCOM MK908 II Scanner Diagnostic Tool Automotive Code Reader
Highlights of Autel MaxiCOM MK908 II:
1. Upgraded Version of MaxiSys MS908,MK908
2. Support All-Around Diagnoses and ECU Programming
3. Ultimate Configurations for Super-Level Diagnosis
4. Multiple Language Supported: English, Spanish, French, German, polish,Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian, Chinese
Description:
Autel MaxiCOM MK908 II Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core 1.30GHz processor, and a 10.1-inch capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask- capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.
Product Features:
Powerful Octa-core processor
10.1-inch capacitive touch screen
Open source Android 10.0 Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Configures display options, sets triggers, records and playbacks results with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases
Product Comparison Between MK908 II and MK908Pro II
| Model |
MK908 II |
MK908Pro II |
| All Systems DTC Scan |
√ |
√ |
| Service Function |
√ |
√ |
| Bi-Directional Control |
√ |
√ |
| Auto VIN Technology |
√ |
√ |
| ECU Coding |
√ |
√ |
| ECU Programming |
× |
√ |
| Data Manager |
√ |
√ |
| Shop Manager |
√ |
√ |
| Report Management |
√ |
√ |
| Multi-language Support |
√ |
√ |
| Domestic/Asian/European Coverage(1996-Present) |
√ |
√ |
| Display Size |
10.1" |
10.1" |
| Wireless VCI |
Wireless Diagnostic Interface |
MaxiFlash Elite |
| Processor |
Octa-core Processor：
4x 2.2 GHz(A73)
4x 1.8 GHz(A53) |
Octa-core Processor：
4x 2.2 GHz(A73)
4x 1.8 GHz(A53) |
| Operating System |
Android 10.0 |
Android 10.0 |
| RAM+ROM |
4GB+128GB |
4GB+128GB |
| Battery Life |
15000 mAh 3.8 V |
15000 mAh 3.8 V |
| Camera |
16M |
16M |
| TPMS |
× |
× |
| Oscilloscope |
√ |
√ |
| Inspection Camera |
√ |
√ |
| ADAS |
× |
× |
| Wi-Fi Print |
√ |
√
|
Features:
1. Generic OBD II operationsfor retrieving OBD2 vehicle diagnosticinformation;
1) Read Codes – displays detailed information of DTC records retrieved from the vehicle controlmodule.
2) Erase Codes – erases DTC records and other data from the ECM.
3)
Live Data – retrieves and displays live data and parameters from the vehicle's ECU.
2. Special functions for various scheduled service and maintenance performances;
Oil Reset: Remindsyou to change the oil when required.
EPB: Reads,clears and offers electronic park braking on flat roads.
BMS: Shows allthe information related to the battery management system.
ABS: Reads andclears anti-lock braking system problems.
DPF: Showserrors in the DPF system (removes soot from exhaust system).
TPMS: Monitorsair pressure in the tires.
IMMO: Used forenhancing car security by serving as a code that starts the engine.
3. Active test for figuringout whether a specific subsystem or component in vehicles goes well.
Unlike conventional scanners, MK908 users can get access to the vehicle-specificsubsystem and component parts, and output commands to the related ECU, thusdriving the actuators to perform a specific function for determiningthe integrity of the systemor parts by reading the engine ECU data, or bymonitoring the operation of the actuators, such as switching a solenoid, relay,or switch, between two operating states.
4. Ultimate Configurationsfor Super-Level Diagnosis
1) Super CPU & RAM: This Android OS-based, tablet-style scanner sports an extremely powerful Hexa-Core 1.3GHz + 1.7GHz processor, and makes use of the internal 64GB solid-state drive, along with 2GB of RAM, for super speedy and smooth performance. However MS908, by contrast, only gets 1.4GHz Quad-Core Processor and 32GB SSD
drive.
2) More Intuitive Display: Unlike MS908 supports 9.7" 1024*768 display, the image clarity image is more admirable in MK908. It is equipped with a 10.1", 1920*1200 resolution and back-lit LED multi-touch capacitive display for better user experience. Moreover, there’s a built-in 8MP camera with a flashlight and autofocus. Compared with 5MP camera equipped in MS908, you will take more detailed snapshots for deeper analysis. Also, saving that and all the diagnostic data/files are quite easy thanks to 64GB on board memory space (only 32GB in MS908) at your disposal.

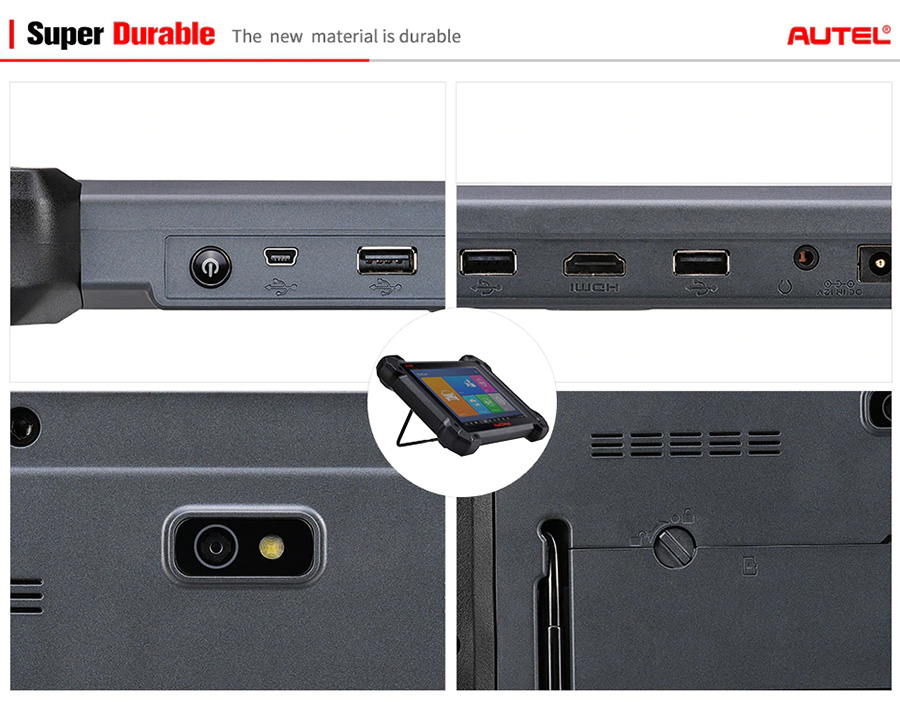

3) Ergonomic Design: The product has been designed to be carried single handy yet it doesn’t mean it will fit in pocket. In particulars on the outside you will see it adopts the real rubber protection design on the both sides to be more ergonomic, and to resist damage of daily heavy use for maximum longevity
4) Useful Multitasking: The diagnostic scanner incorporates high-quality diagnostic protocols with multitasking capable software, so it shouldn't come as a surprise that this scan tool not only has amazing speeds, but also gets the ability to multitask, to help you to keep an eye on impacts on other parts, while fixing a particular part of the engine.
5. Autel MK908 II ECU Programming & Coding:
The diagnostic tool can replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues. Since the introduction of OBD II and leading up to modern Hybrids and EVs, computers and software in cars have been expanding at an exponential rate. In-car software is becoming one of the leading needs for service, and updating software may be the only way to fix some of these issues:
-Drivability
-Fuel Efficiency
-Power Loss
-Fault Codes
-Durability of Mechanical Parts
The Programming and Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements.
Notice: The programming function can only be applied through connection with the J2534 programming device (Autel MaxiFlash Elite), which serves as a Pass-Thru interface to establish communication with and transfer data to the vehicle’s ECU.
What's the difference between Coding and Reprogramming
A. Coding – also known as Teach-in Program,Component Adaptation or something similar, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
B. Reprogramming Operations – downloads new version of software subscription from the on-line server database through internet access (this procedure is done automatically when the MaxiSys display tablet is connected to the internet, so there is no need to check for software subscriptions yourself), and reprograms the newest software version to the vehicle's ECU

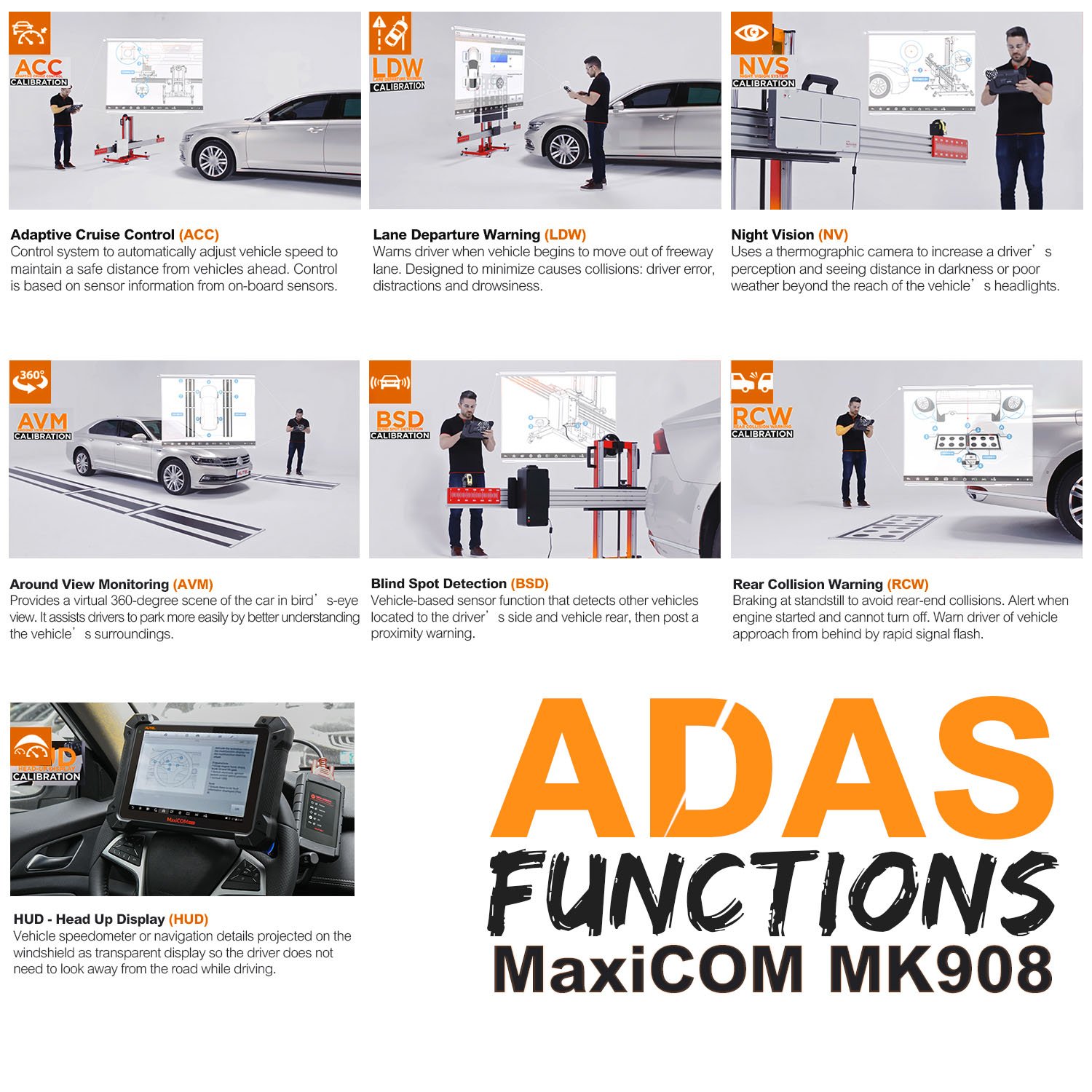

6. Advanced Driver Assistance Systems (ADAS)
ADAS is an array of vehicle systems that aid the driver either through passive alerts or by active control of the vehicle to drive safer and with greater awareness and precision. Cameras, sensors, ultrasound, radar and LIDAR are some of the systems used to capture the driving environment data, including travelling or static vehicles position, pedestrian location, road sign, driving lane and intersection detection, road (curves) and driving conditions (poor visibility or evening driving), use that information to instruct the vehicle to take its predetermined action. Cameras, sensors and sensing systems are typically location in front and rear bumpers,windshield, front grill and side and rear view mirrors.

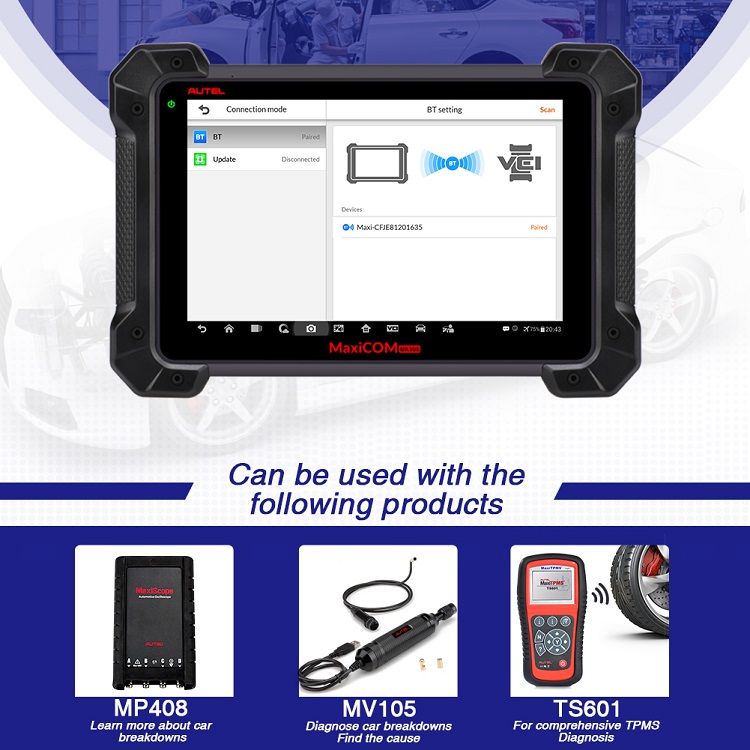

7. Abundant User-Friendly Add-On Features
Extendable Feature: It can expand the diagnostic capabilities by working with Autel MP408, MV108 to go deeper into the unseen details for locating the fault easily and accurately, or by working with Maxitpms TS501 for diagnosing comprehensive TPMS problems.
8. AutoVin Technology:
The device equips with the latest AutoVIN technology with advanced Auto-Scan functions to identify CAN- Enabled vehicles, in one touch. It displays the data in the form of text, graph, analog and digital gauge for efficient analysis.

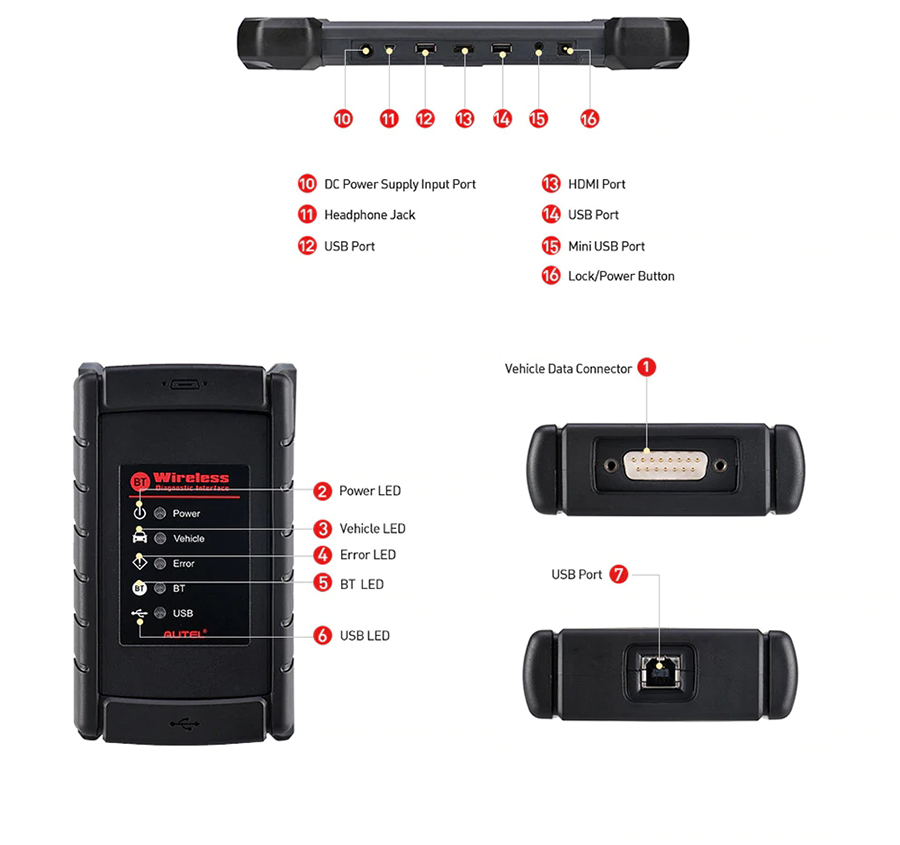

9. Fast Data Transfer (VCI):
The package comes with both dual band 802.11n Wi-Fi technology and long range Blue-tooth connectivity that provides its users with an ultra-fast Vehicle Communication Interface. You don’t have to wait. Just plug it into the OBD-II dashboard and it will diagnose within seconds.
MaxiFix:
The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCOM users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
10 Data Manager:
The Data Manager application is used to store, print, and review the saved files for future reviews.

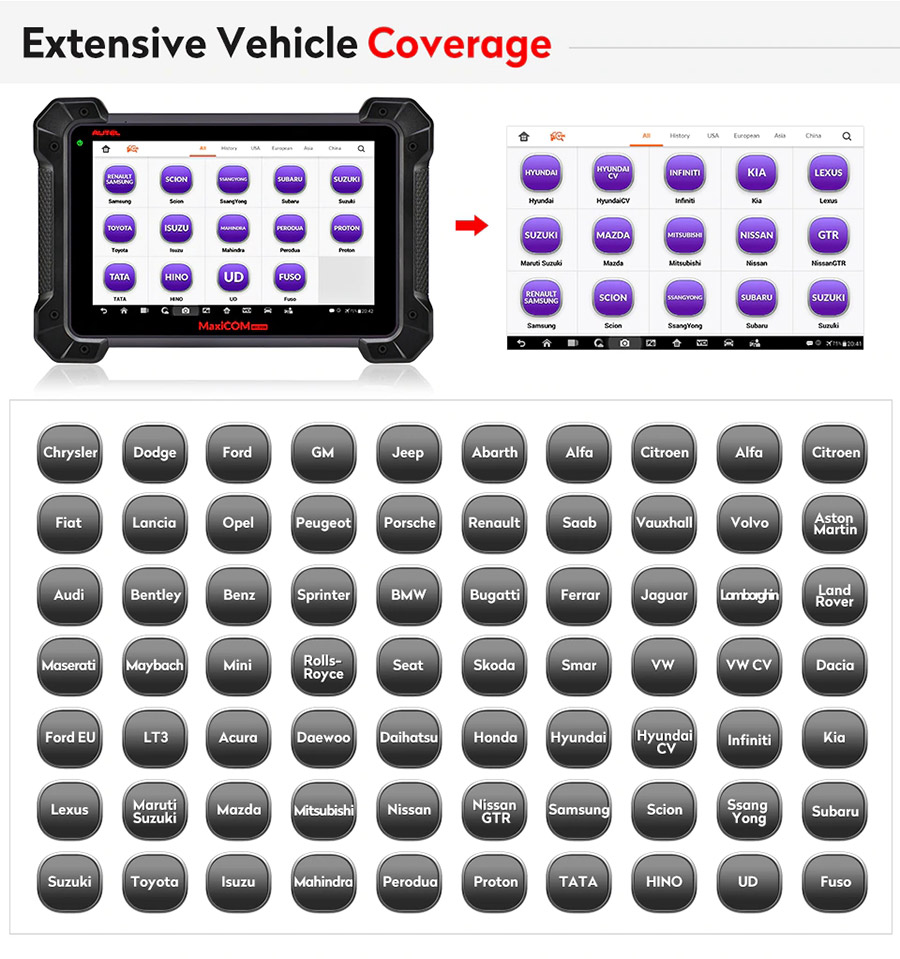

Wide Compatibility and Vehicle Coverage
Chrysler,Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot,Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz,Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, LandRover, Maserati,Maybach, Mini,Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3,Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus,Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota,Isuzu, Mahindra, Perodua, Proton, TATA, HINO,UD,Fuso.

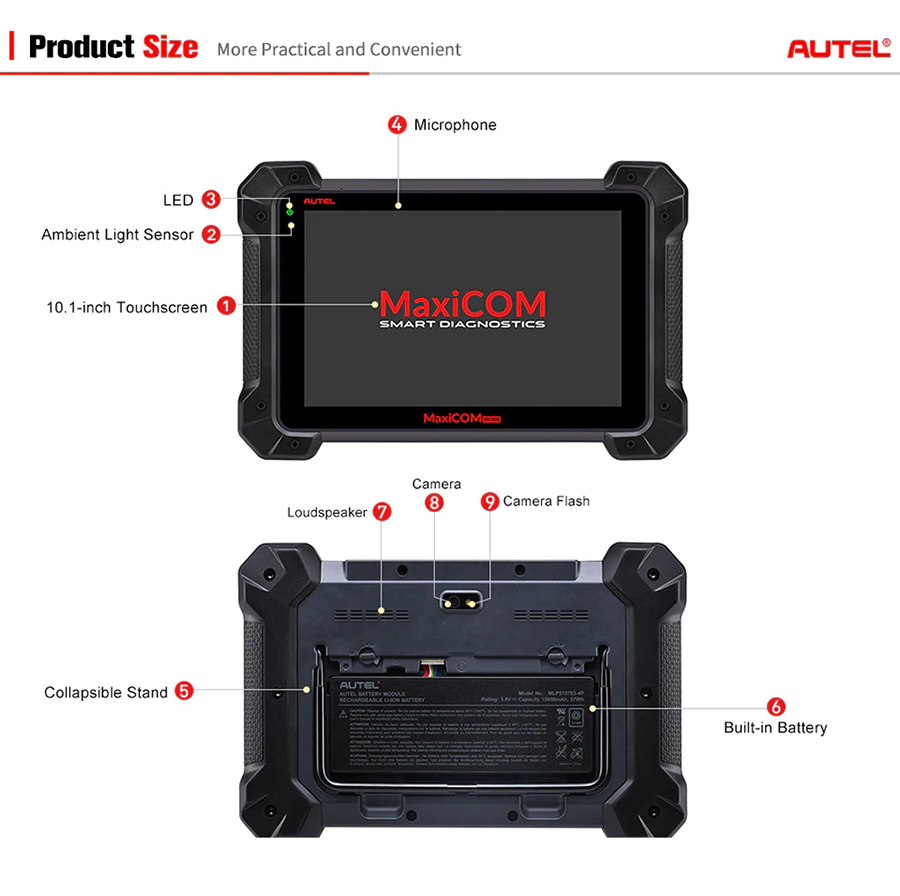

Product Specifications:
| Operating System |
Android™ 10.0 |
| Processor |
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory |
4GB RAM & 128GB On-board Memory |
| Display |
10.1-inch LED screen with 1920x1200 resolution |
| Connectivity |
Wi-Fi (802.11 a/b/g/n/ac) |
| USB: 2.0 |
| BT V5.0 + EDR |
| SD Card(Support up to 32GB) |
| HDMI |
| Camera (rear) |
16 Megapixel, AF with Flashlight |
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
Microphone |
| Dual Speakers |
| 3-Band 3.5 mm stereo/standard headset jack |
| Battery |
15000mAh |
| Input Voltage |
12V (9-24V) |
| Power Consumption |
6.5W |
| Operating Temp |
0 to 50°C (32 to 122°F) |
| Storage Temp |
-20 to 60°C (-4 to 140°F) |
| Protocols |
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

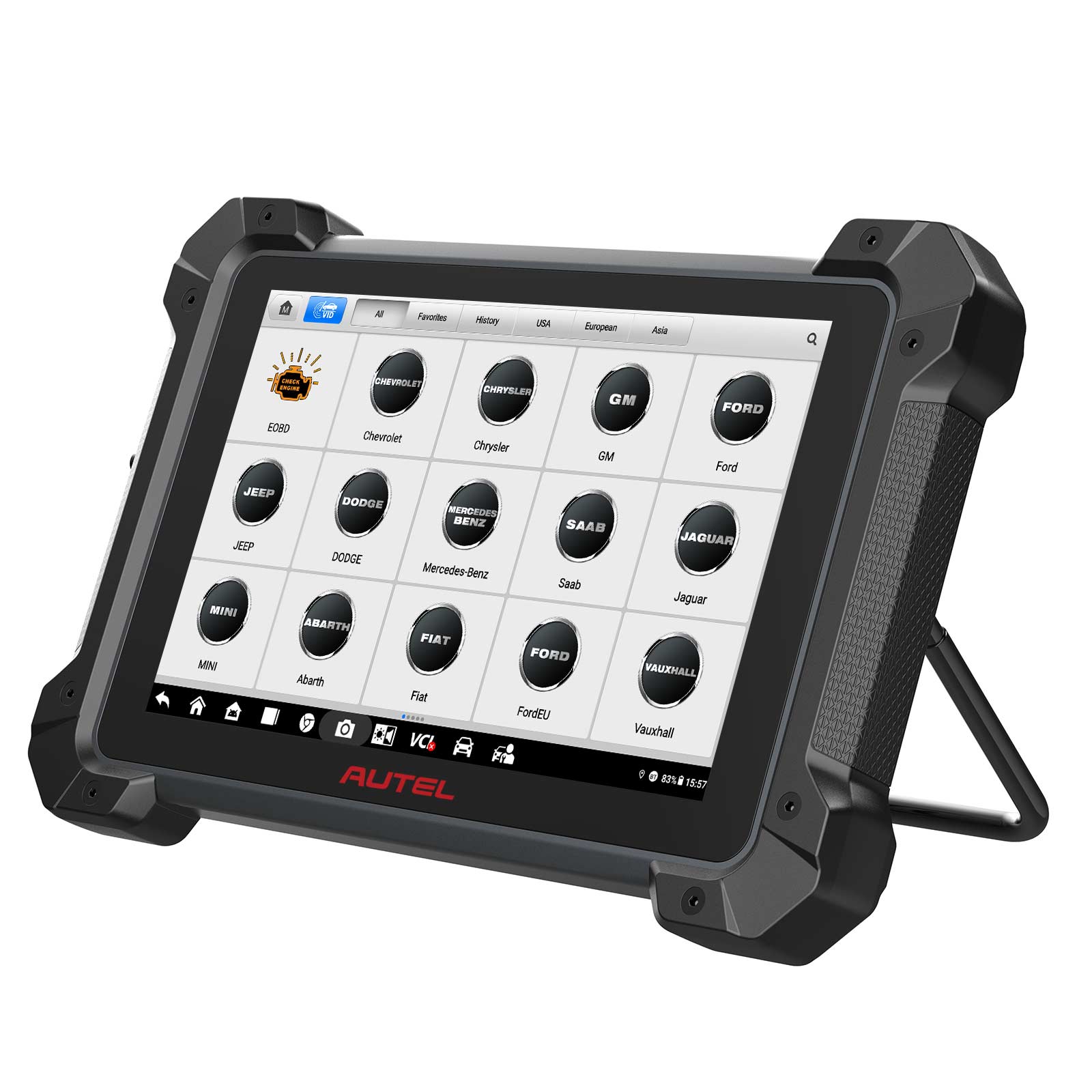

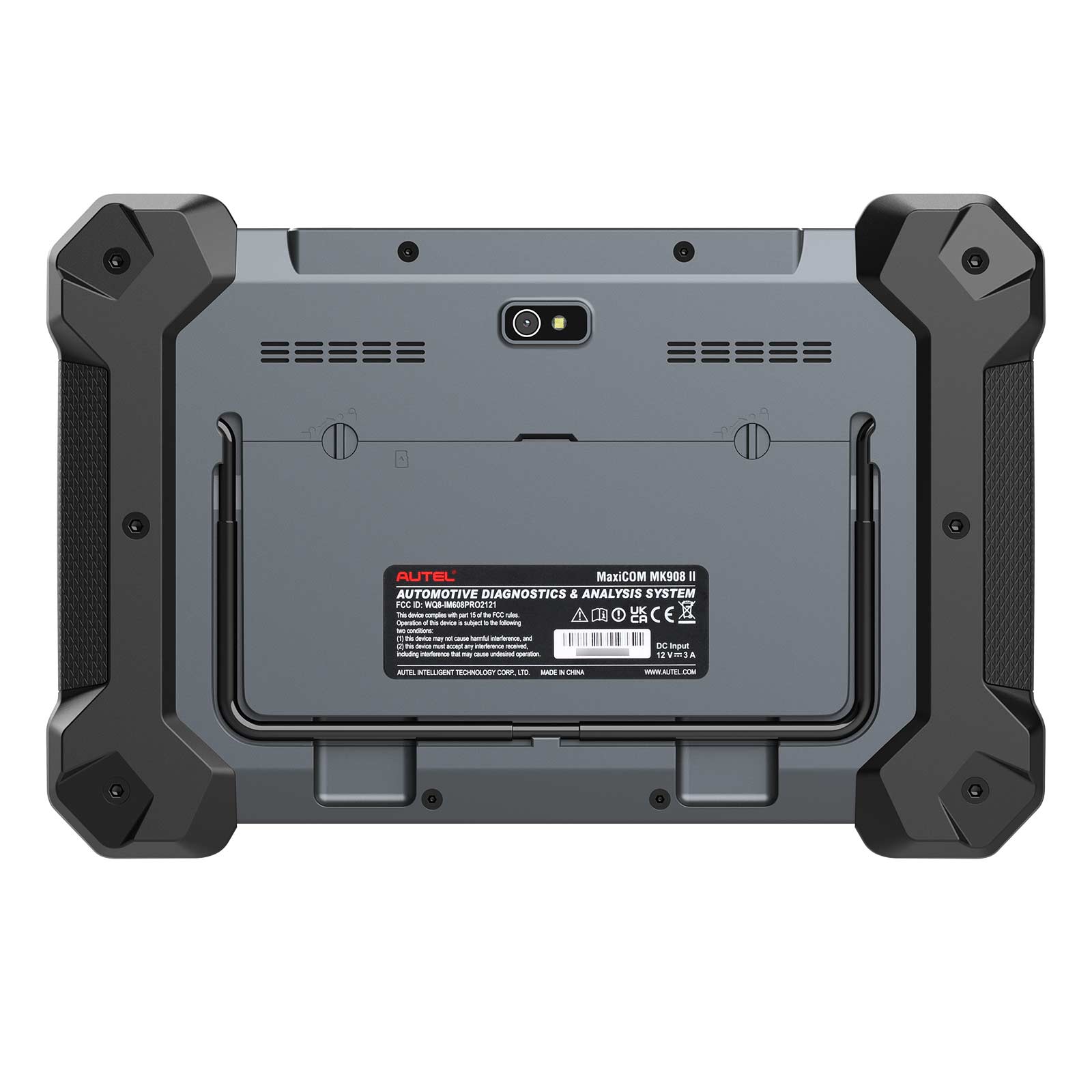

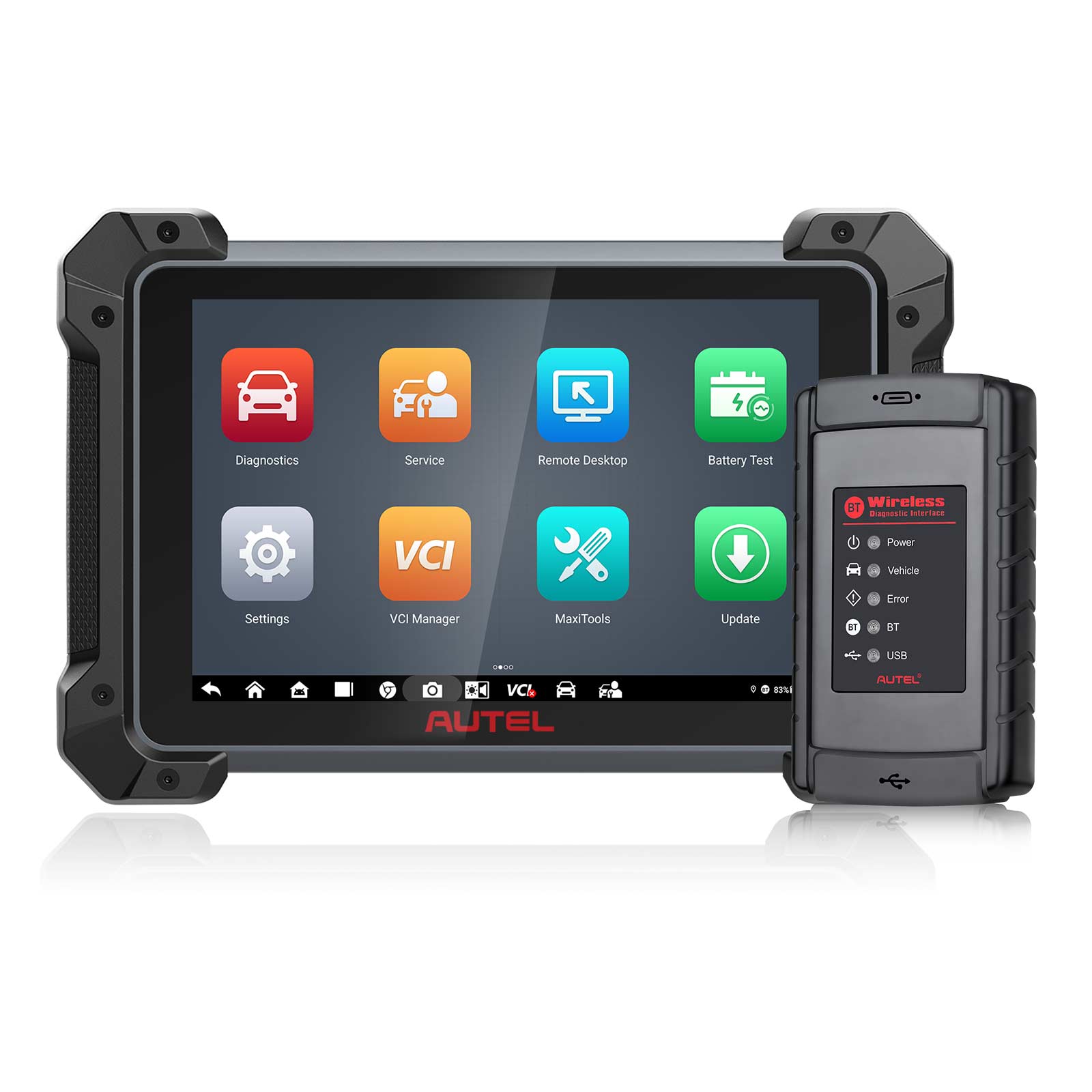

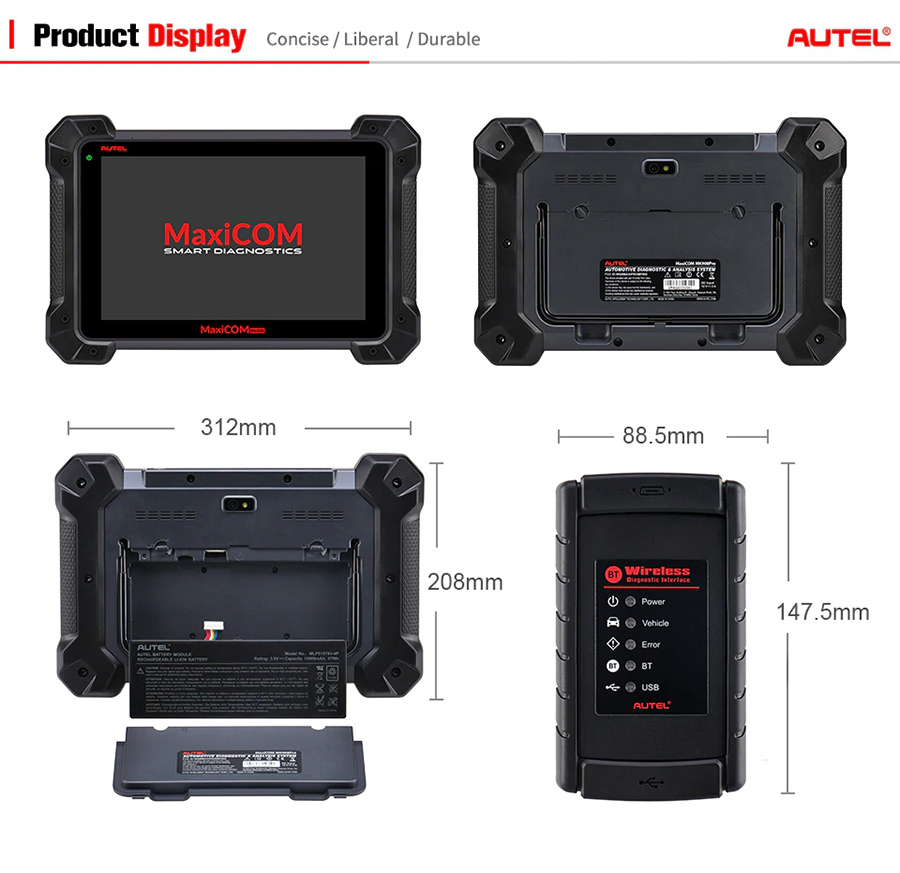

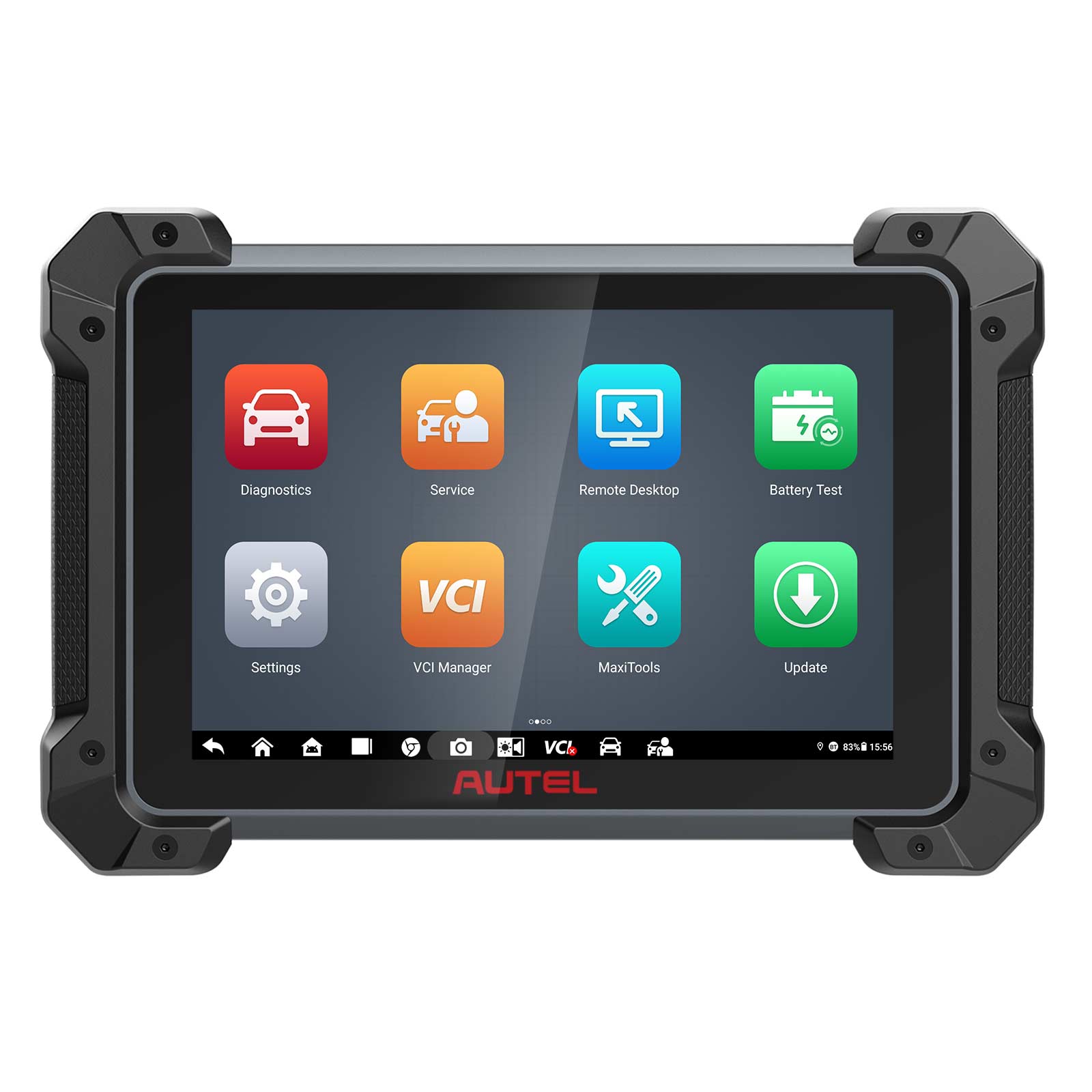

Product Display:

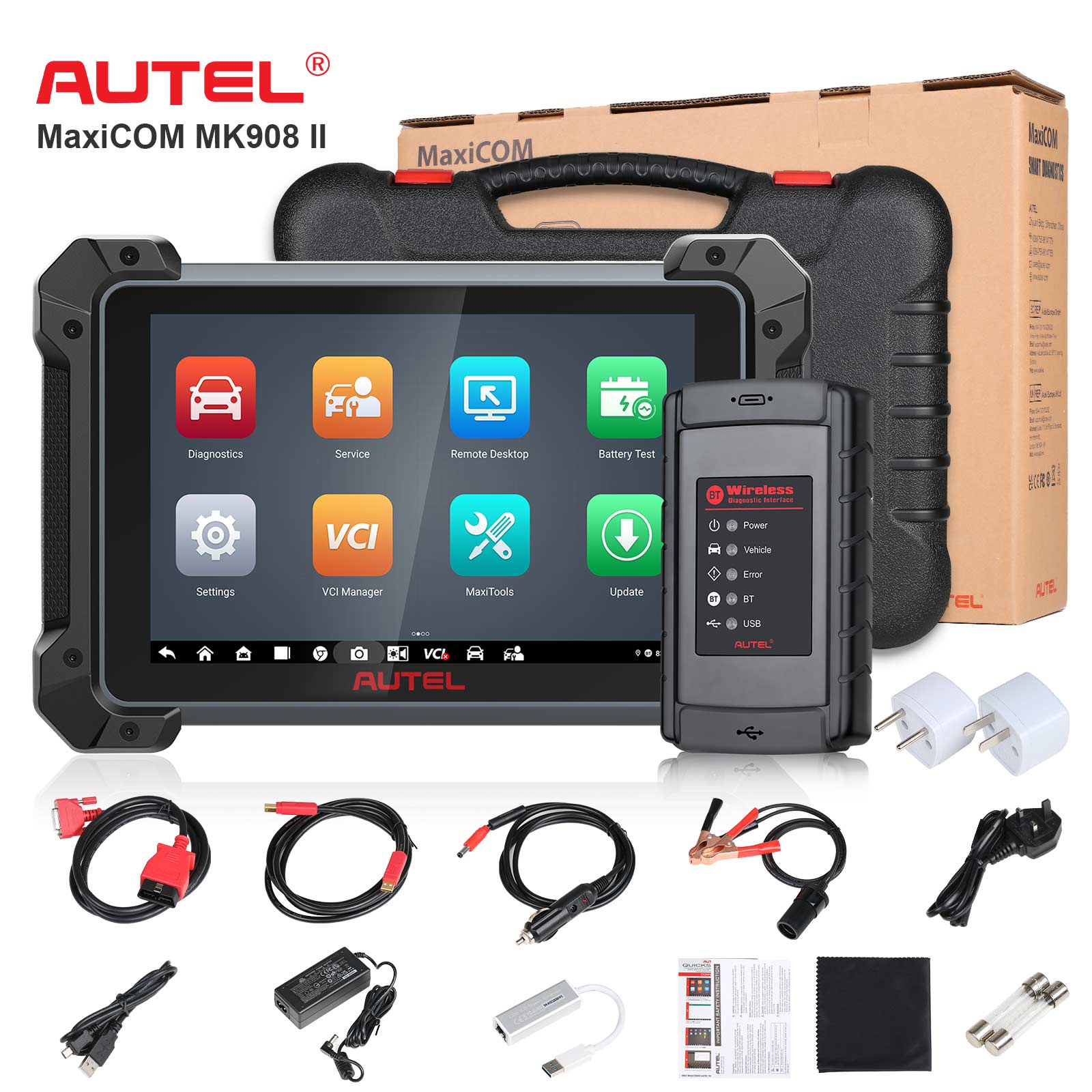

Package List:
1 set x Autel MaxiCOM MK908 II
